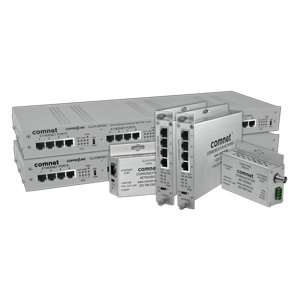

Comnet CLLFE16POEU | 16 Ports EOC Ethernet Extender, Local, 16 Channels, 1U, UTP
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Comnet CLLFE16POEU | 16 Ports EOC Ethernet Extender, Local, 16 Chan...
Description
Description
The ComNet CopperLine Ethernet over copper line supports up to sixteen channels of 10/100Mbps Ethernet with PoE+ Power Injection and Pass-through PoE+ over twisted pair cable (CAT-5, UTP) or over coax.
With the ability to connect directly to a PoE+ switch, or the ability to generate PoE+ power with a 48 to 56 V input to either the Local or Remote ends, these units provide the ultimate flexibility for extending a powered device (PD) over long distance copper.
A complete set includes both a Local and Remote module.
Remote units are available in small package sizes that include one or four channels, and Local modules are available in the same packages as well as a 1RU rack for larger channel counts.
Comnet - CLLFE16POEU - Features
- 16 ports
- Local position
- 16 channels
- 1 RU 19" rack mount
- UTP cable
- Transmits individual Ethernet data channels with PoE+ Power Injection or Pass-through PoE+ over standard UTP or Coaxial cable
- Extends Ethernet up to 3,000 feet (914 m) at 10 Mbps or 2,000 feet (610 m) at 100 Mbps over UTP cable
- Extended temperature operation from -40C to +75C
- Extended Pass-through PoE meets the IEEE 802.3at standard for Power over Ethernet
- Full 10/100 Mbps Bandwidth
- Supports Multicast, Unicast and Jumbo Frame
- Symmetric Bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance
- Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
Specifications
Specifications
Comnet - CLLFE16POEU - Specifications
| Number of Ports | 16 PORTS |
|---|---|
| UNSPSC Code | 43222600 |
