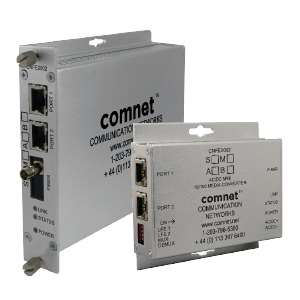

Comnet CNFE2005M2/M | Mini 2 Channel 10/100Mbps Ethernet Electrical to Optical Media Converter with Optional PoE+, 1310nm, ST Connector, Multimode, 2 Fibers
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Comnet CNFE2005M2/M | Mini 2 Channel 10/100Mbps Ethernet Electrical...
Description
Description
The ComNet Ethernet CNFE200X media converter series are two-channel Ethernet electrical to optical media converters with optional PoE+.
These auto-negotiating devices accept two 10/100 Mbps electrical inputs and convert this to a single 100 Mbps optical output.
This series of media converters are available as multimode or single-mode and one and two fiber SC and ST optical connectors.
The ComNet exclusive Demux feature allows for port isolation, replicating two media converters over one fiber.
The ComNet exclusive Mux feature prevents network video flooding of multicast traffic with DIP switch selection of the fiber port as a dedicated uplink path.
The CNFE200(X) series can be powered by wide range AC or DC input while the CNFE200(X)POE units meet the 802.3at standard and provide 30 watts of PoE+ power, with an option for a 60 watt CNFE200(X)POEHO model.
The PoE models can be powered by a sold seperately 48 to 57 volt DC power supply.
Comnet - CNFE2005M2/M - Features
- 10/100 Mbps Ethernet
- Distances up to 3 Kilometer Multimode 20 Kilometer Single-Mode
- Link Fault Pass Through Feature Detects If Either of the Copper Ports are Down and Triggers the Optical Port to Switch States to Indicate the Failure to the Head-En
- ST or SC Optical Connectors 1 or 2 Fiber Design
- Full Size Units Feature a Contact Closure Output for Remote Side Link Failure Detection
- Plug and Play Design Ensures Ease of Installation and No Electrical or Optical Adjustments are Ever Requireltage Transient Protection on All Power and Signal Input/Output Lines Provides Protection from Power Surges and Other Voltage Transient Events
- Comfit Standard Form Factor is Interchangeable Between Standalone or Rack Mount Use
- Designed to Meet Fullompliance with the Environmental Requirements
- Standard Comfit Models are Hot-Swappable
- Lifetime Warranty
- RoHS Compliant
- Made in USA
Specifications
Specifications
Comnet - CNFE2005M2/M - Specifications
| Device | MEDIA CONVERTERS |
|---|---|
| Port 1 Device Technology | MULTIMODE |
| UNSPSC Code | 43201553 |
