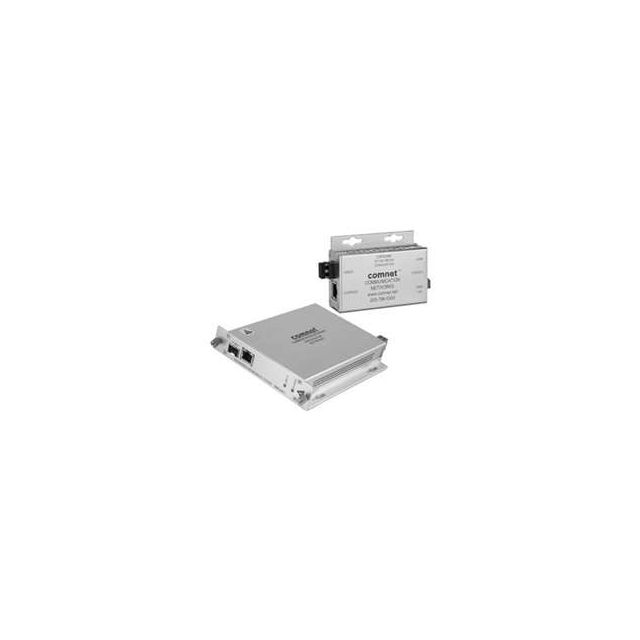

Comnet CNFE2MC-M | Small Size 10/100Mbps Ethernet Media Converter
Description
Description
The ComNet CNFE2MC Ethernet and CNFE22MCmedia converters are designed to transmit andreceive 10/100 Mbps data over optical fiber throughuser selectable SFP options.
These models requirethe ordering of sold-separately interchangeable SFPmodules for fibe r type, distance and connectors.
TheCNFE2MC transmits and receives a single channelof Ethernet data and the CNFE22MC transmits andreceives two independent channels in one unit.
Theelectrical interface will Auto-Negotiate to a 10 Mbps,or 100 Mbps Ethern et rate without any adjustments.The optical interface operates at a 100 Mbps Ethernetrate.
Both are environmentally hardened to operatein extreme temperatures.
LED indicators are providedfor confirming equipment operating status.
Packagedin the exclusi ve ComNet ComFit housing, the CNFE2MCand CNFE22MC units may be either wall or rackmounted,or may be DIN-rail mounted by the addition ofComNet model DINBKT1 adaptor plate.
Comnet - CNFE2MC-M - Features
- 10/100 Mbps Ethernet
- 10/100 BASE-T/TX electrical port
- 100 BASE-FX optical port
- Electrical port supports Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data.
- Optical port supports 100 Mbps full duplex data
- Automatic MDI/MDI-X cover
- Distances up to 80 km with optional SFPs
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, vibration, humidity with condensation, high-line/low-line voltage and the Caltrans Specification for Traffic Signal Control Equipment. conditions and traent voltage protection) of NEMA TS-1/TS-2
- Uses interchangeable SFP for fiber type, distance and connector (Ordered separately)
- Voltage transient protection on all power and signal iut/output lines provides unconditional protection from power surges and other voltage transient events.
- No in-field optical adjustments required
- CNFE2MC and CNFE22MC are hot-swappable rack modules
- CNFE2MC and CNFE22MC are interchangeable between salone or rack mount use ComFit LED Indicators
- IEEE 802.3 compliant
- Lifetime Warranty
Specifications
Specifications
Comnet - CNFE2MC-M - Specifications
| Device | MEDIA CONVERTERS |
|---|---|
| Port 1 Device Technology | 100BASET |
| UNSPSC Code | 43201553 |
