Comnet CNFE4+1SMSM2 | 5-Port Self-Managed Switch (MM)
Description
Description

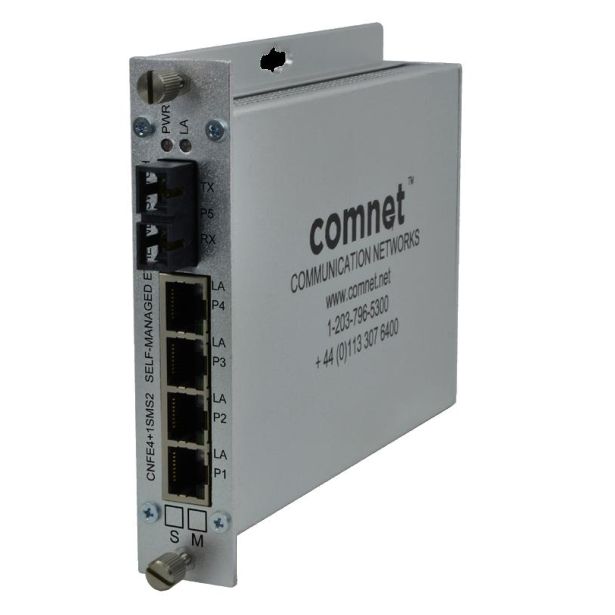

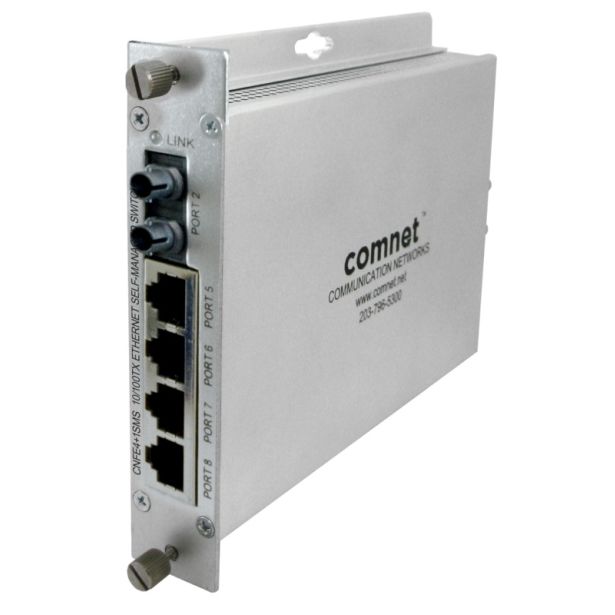

The ComNet CNFE4+1SMS(M,S)2 is a five-port self-managed Ethernet switch with uplink management functionality.
It provides 4 ports operating at 10/100Mbs and is designed to combine Ethernet data from the four electrical ports into a single optical port and forward that data to the next network device, using two-fiber ST or SC optical connectors.
There is no programming required to use this switch.
The ComNet CNFE4+1SMS comes pre-programmed, preventing network video flooding with a switch selection th at allows the fiber port to be used as an uplink or as an unmanaged switch.
It is "Plug-and-Play" easy to use.
LED indicators confirm the operating status of this device.
Comnet - CNFE4+1SMSM2 - Features
- No Programming Required
- 10/100 Mbps Ethernet
- 4 10/100 BASE-T(X) electrical port
- 100 BASE-FX optical port
- Electrical ports support Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data.
- Optical port supports 100 Mbps full duplexta
- Pre-programmed Port for uplink
- Automatic MDI/MDI-X crossover
- Compliant with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient vltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Power and Activity status LED indicators
- Interchangeable between stand-alone or rack mount use -ComFit
- IEEE 802.3 compliant
- Lifetime Warranty
Specifications
Specifications
Comnet - CNFE4+1SMSM2 - Specifications
| Device Technology | 10/100BASET |
|---|---|
| No Exp Modules/Slots | 2022-02-01 00:00:00 |
| Type of Device | STANDALONE SWITCH |
| UNSPSC Code | 43222612 |
