Comnet CNGE2+2SMSPOE | 4 Port Gigabit Ethernet Self-Managed Switch,...
Description
Description

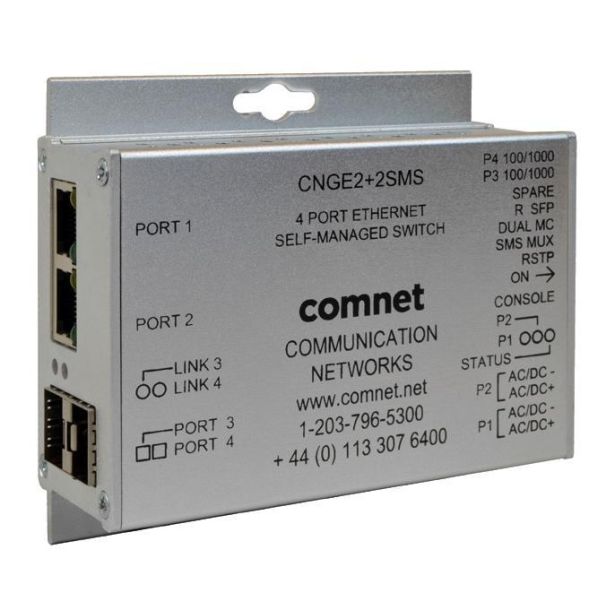

The ComNet CNGE2+2SMS[POE][HO] is a four port intelligent switch with light management functionality.
It provides two 10/100/1000Base-T(X) copper ports and two 100/1000Base-FX SFP ports.
The CNGE2+2SMS[POE][HO] provides exclusive functionality for easy field deployment including DIP switch based operation of RSTP for creating redundant network topologies as well as preventing network video flooding of multicast traffic with IGMP snooping.
Ports 1 and 2 can optionally supply up to thirty (30) watts o f power per port based on the IEEE 802.3at standard.
An optional High Output (HO) version is also available that can supply up to sixty (60) watts of PoE from ports 1 and 2.
This product is fully compatible with the ComNet exclusive CopperLine SFP modu les for operation over extended distance UTP or Coax cable.
The ComNet exclusive Port Guardian feature provides additional cyber security protection by enabling physical port lockout in the event that an existing cable is disconnected and prevents a po tential network incursion using common spoofing techniques.
The intrusion event is reported back to the operator using SNMP
Comnet - CNGE2+2SMSPOE - Features
- Supports Link Layer Discovery Protocol (LLDP)
- Several features can be enabled with no programming required: RSTP (Rapid Spanning Tree Protocol) IGMP V2 Snooping Simple Multicast Flooding Prevention (Star/Linear topologies) Dual Redundant SFP Mode
- Electrical ports support Auto-Negotiation for 10Mbps, 100Mbps or 1000Mbps, full duplex or half duplex data.
- SFP Ports support 100 or 1000 Mbps full duplex data
- SFP Ports compatible with CopperLine CL-SFP modules
- IEEE802.3at Power over Ethernet (PoE+)?
- 30Wr 60W PoE+ on Ports 1 and 2?
- PoE status monitoring & automatic reboot function?
- Event notification through SNMP traps and Relay Output
- STP & RSTP supported
- Redundant AC/DC inputs for uninterrupted operation in the event of a loss of operating power oa power supply failure
- SNMP v1/v2c for network management
- Supports 10K Bytes Jumbo Frame
- Device Binding security function
- Port Guardian prevents network intrusion through intelligent physical port lockout
Specifications
Specifications
Comnet - CNGE2+2SMSPOE - Specifications
| UNSPSC Code | 43222612 |
|---|
