Comnet CNGE20MS | 20-Port Managed Gigabit Switch with (8) 10/100/1000BASE-T(X) + (12) 100/1000BASE-FX SFP Ports
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Comnet CNGE20MS | 20-Port Managed Gigabit Switch with (8) 10/100/10...
Description
Description

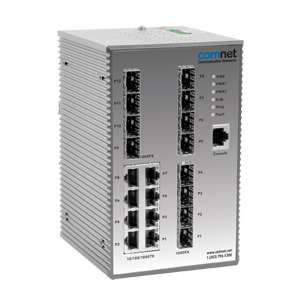

The ComNet CNGE20MS is a 20-port Managed Ethernet Switch designed to reliably operate in harsh, environmentally challenging applications.
It features eight 10/100/1000BASE-TX and twelve 100/1000BASE-FX SFP ports.
The SFP ports are 100/1000Mbps configurable for either multimode or single-mode optical fiber by the use of optional ComNet SFPs.
Exclusive to ComNet is C-Ring, a feature that protects the network from interruptions or temporary malfunctions with fast recovery technology.
Legacy ring allows the switch to be used in an existing ring of ComNet X-Ring enabled switches.
Redundant DC inputs are included for uninterrupted operation in the event of a power supply failure.
These network-managed layer 2 switches are optically and electrically compatible with any IEEE802.3 compliant Ethernet device.
Comnet - CNGE20MS - Features
- Twelve (12) SFP ports support 100/1000 Mbps SFP modules
- Eight (8) electrical ports support 10/100/1000 Mbps
- Ethernet IEEE802.3 protocol
- IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
- Supports Jumbo Frame up to 9.6K Bytes for streaming video applications
- MSTP/RSTP/STP
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Operating Temperature: -40C to +75C (-40F to +167F). Functional to +85 C (185 F)
- Fastest Redundant Ethernet Ring: ComNet C-Ring. Recovery time <30ms, with > 250 switches within the ring
- IP-Based Bandwidth Management & Application-Based QoS Management
- Device-Binding Security Function & DOS/DDS AutoPrevention
- SNMP v1/v2c/v3, RMON & IEEE 802.1Q VLAN for secure network management
- Supports IPV6 new Internet protocol version
Specifications
Specifications
Comnet - CNGE20MS - Specifications
| Device Technology | MIXED |
|---|---|
| Number of Ports | 13-24 |
| Type of Device | CHASSIS SWITCH |
| UNSPSC Code | 43222612 |
