Description
Description

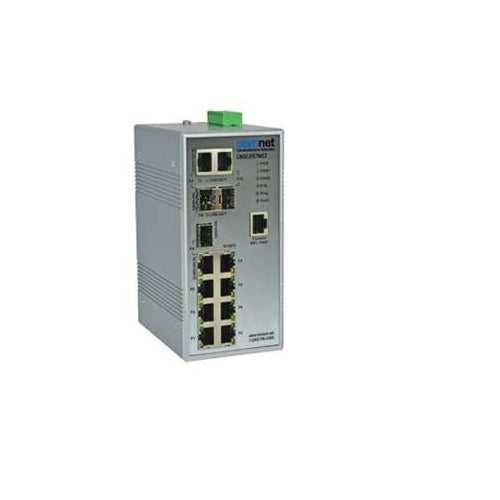

The ComNet CNGE3FE7MS3 Managed Ethernet Switch provides robust transmission of seven (7) 10/100BASE-T(X) and three (3) 10/100/1000T(X) or 100/1000FX combo ports, of gigabit Ethernet data.
It is available for use with either conventional CAT-5e copper or optical transmission media.
The 7 electrical ports support the 10/100Mbps Ethernet IEEE 802.3 protocol, and auto-negotiating and auto-MDI/MDIX features are provided for simplicity and ease of installation.
Three ports are 10/100/1000 configurable for copper or fiber media for use with multimode or single mode optical fiber, selected by optional SFP* modules.
These network managed layer 2 switches are optically (100/1000BASE-FX) and electrically compatible with any IEEE 802.3 compliant Ethernet devices.
The CNGE3FE7MS3 incorporates LED indicators for monitoring the operating status of the managed switch and network.
These units are DIN-rail or wall mountable.
Comnet - CNGE3FE7MS3 - Features
- SNMP v1/v2c/v3, RMON and IEEE 802.1Q VLAN for Secure Network Management
- DDM (Digital Diagnostic Monitoring) Remotely Ascertains the Status of the Operating Voltage, Current, and Operating Temperature of the SFP Modules
- RMON for Traffic Monitoring
- Supprts LLDP (Link Layer Discovery Protocol)
- Multiple Notifications for Warning of Unexpected Events, Including Relay Fault Alarm
- Port Lock to Prevent Access from Unauthorized Mac Address
- Rigid Aluminum Housing Design Provides for DIN-Rail or Wall Mountin
- Compatible and Fully Functional When Used in a Moxa Turbo Ring Topology
- Redundant DC Inputs for Uninterrupted Operation in the Event of a Loss of Power
- HTTPS/SSH Protocol for Enhanced Network Security
- Industrial and Factory Automation
- Lifetime Warry
- RoHS Compliant
Specifications
Specifications
Comnet - CNGE3FE7MS3 - Specifications
| Device Technology | MIXED |
|---|---|
| Number of Ports | 2022-04-01 00:00:00 |
| Type of Device | STANDALONE SWITCH |
| UNSPSC Code | 43222612 |
