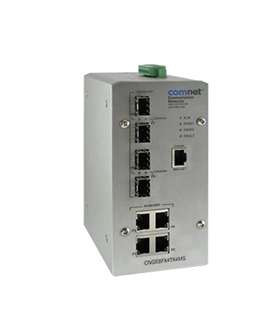

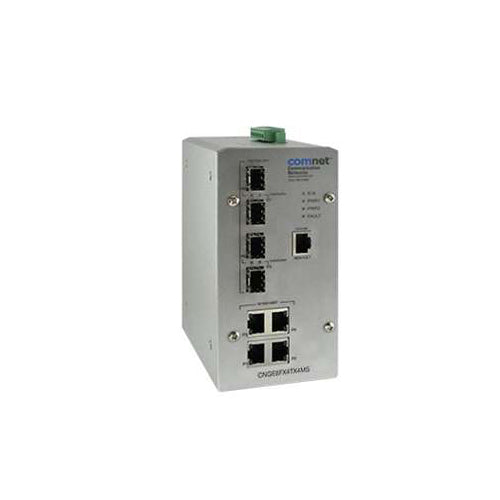

Comnet CNGE8FX4TX4MS | Environmentally Hardened Managed Ethernet Switch with (4) 10/100/1000TX + (4) 100/1000FX SFP Ports
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Comnet CNGE8FX4TX4MS | Environmentally Hardened Managed Ethernet Sw...
Description
Description
The ComNet CNGE8FX4TX4MS Managed EthernetSwitch provides transmission of (4) 100/1000 BASETXand (4) 10/100/1000FX combo ports.
Unlike mostEthernet switches, these environmentally hardenedunits are designed for deployment in difficult operatingenvironme nts, and are available for use with eitherconventional CAT-5e copper or optical transmissionmedia.
Ports 1 - 4 support the 10/100/1000 MbpsEthernet IEEE 802.3 protocol, and auto-negotiatingand auto-MDI/MDIX features are provided for simplicityand ease of installation.
Ports 5 - 8 are 10/100/1000configurable for copper or 100/1000 fiber mediafor use with multimode or single mode optical fiberwithout need for configuration, selected by optionalSFP modules.
These network managed layer 2switches are opt ically and electrically compatible withany IEEE 802.3 compliant Ethernet devices.
Plugand-play design ensures ease of installation, and noelectrical or optical adjustments are ever required.The CNGE8FX4TX4MS incorporates LED indicators formonitoring th e operating status of the managed switchand network.
Comnet - CNGE8FX4TX4MS - Features
- Environmentally hardened for direct deployment in difficult unconditioned out-of-plant and roadside installations
- Tested and certified by an independent laboratory for full compliance with the enonmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signaontrol Equipment.
- Extended ambient operating temperature ra: -40 C to +75 C
- 10/100/1000 BASE-TX and 100/1000 BASE-FX compatible
- Flexible optics configuration via SFP plug-in modules
- Redundant power supply compatibility reduces possibility of single-point-of-failure for highest possible reliability
- Fully igurable through web-based or SNMP network management
- IGMP Snooping V1/V2 for multicast filtering and IGMP Query V1/V2
- Port based VLAN (IEEE 802.1Q)
- Rapid Spanning Tree protocol (IEEE 802.1W)
- Port Based Security
- Power Supply Included
- Lifetime Warranty
Specifications
Specifications
Comnet - CNGE8FX4TX4MS - Specifications
| Type | ETHERNET SWITCH (MANAGED) |
|---|---|
| UNSPSC Code | 43222612 |
