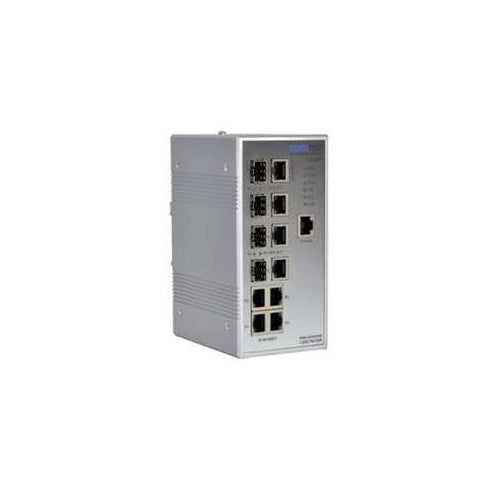

Comnet CNGE8MS | (4) 10/100/1000Base-T(X) + (4) Gigabit Combo Port Switch
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Comnet CNGE8MS | (4) 10/100/1000Base-T(X) + (4) Gigabit Combo Port ...
Description
Description
The ComNet CNGE8MS is an 8-port Managed Ethernet Switch designed to reliably operate in harsh, environmentally challenging applications.
It features four (4) 1000BASE-TX and four (4) gigabit combo ports.
The four combo ports are 10/100/1000Mbps configu rable for either Cat5-e copper, or multimode or single-mode optical fiber by the use of optional ComNet SFPs for connector type and distance.
Exclusive to ComNet is C-Ring, a feature that protects the network from interruptions or temporary malfunction s with fast recovery technology.
Legacy ring allows the switch to be used in an existing ring of ComNet X-Ring enabled switches.
Redundant DC inputs are included for uninterrupted operation in the event of a power supply failure.
The electrical ports s upport the 10/100/1000Mbps Ethernet IEEE802.3 protocol, and auto-negotiating and auto-MDi/MDiX features are provided.
These network-managed layer 2 switches are optically and electrically compatible with any IEEE802.3 compliant Ethernet device.
Comnet - CNGE8MS - Features
- 16Gbps Switching bandwidth: 4 Combo Gigabit Ports & 4 10/100/1000T(X) Ports
- IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic & Port Trunking for ease of bandwidth management
- STP/RSTP/MSTP supported
- Fully Compliant with the Environmenal Requirements of NEMA TS-1/TS-2 & the Caltrans Specification for Traffic Signal Control Equipment
- Compatible and fully functional when used in a Moxa Turbo ring topology
- Operating Temperature: -40 C to +75 C (-40 F to +167 F). Functional to +85 C (185 F)
- Lifetime Warranty
- Fastest Redundant Ethernet Ring: ComNet C-Ring. Recovery time <30ms, with > 250 switches within the ring
Specifications
Specifications
Comnet - CNGE8MS - Specifications
| Device Technology | MIXED |
|---|---|
| No Exp Modules/Slots | 2022-08-05 00:00:00 |
| Number of Ports | 2022-12-05 00:00:00 |
| Type of Device | STANDALONE SWITCH |
| UNSPSC Code | 43222612 |
Documents and Downloads
Documents and Downloads
