Comnet CNMC2SFP | ComFit Dual 10/100/1000 Mbps Ethernet Media Conve...
Description
Description
The ComNet CNMCSFP electrical-to-optical Ethernet media converters accept a 10/100 or 1000 Mbps electrical input and converts this to a 100 or 1000 Mbps optical output (selected by a dip switch) and the 100/1000 Mbps optical input back to the 10/100/1000 Mbps electrical output.
Auto-Negotiating" is supported on the copper interface side.
These devices use either one or two optical fibers, depending upon the selection of sold-separately SFP optical module.
A PoE model, the CNMCSFPPOE/M meets the IEE802.3at standard and provides 30 watts of PoE+ power.
AC or DC power can power the CNMCSFP series.

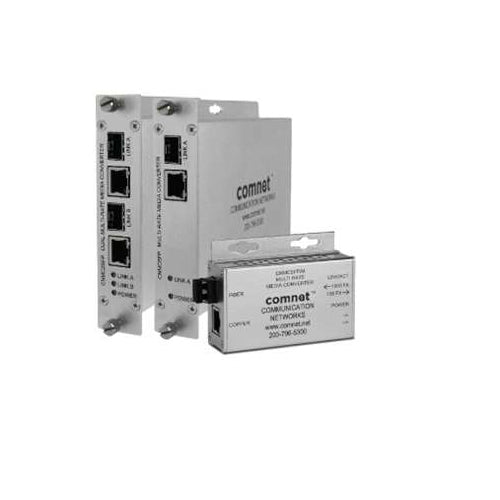

The series consists of a small-size single channel model, CNMCSFP/M; a ComFit standard size, single-channel model, CNMCSFP; and a dual channel, the CNMC2SFP.
The CNMCSFP series is designed to operate in harsh industrial environments.
Comnet - CNMC2SFP - Features
- Designed for Installation in Harsh Out-Of-Plant/Unconditioned Industrial or Roadside Operating Environments
- Status Indicating LEDs Provide Rapid Indication of Critical Operating Parameters
- Supports Jumbo Frames
- Voltage Transient Protection on All Powe an
- Dual ComFit size
- 1 rack slot
- Full-duplex transmission of 10/100/1000 Mbps Ethernet: 10/100/1000BASE-TX electrical port; 1000BASE-FX or 100BASE-FX optical port when used with suitable ComNet SFPs
- IEEE 802.3 compliant
- 10/100/1000 BASE-TX port supports auto-negotiation and automatic MDI/MDI-X crossover for full and half-duplex operation
- Uses customer-installed ComNet SFPs for compatibility with a wide range of optical fibers, optical connector types, and optical transmission distances of up to 120 km
- Designed for installation in harsh out-of-plant/unconditioned industrial or roadside operating environments (-40 to +75C ambient). Fully compliant with the environmental requirements of NEMA TS-2 for Traffic Signal Control Equipment
Specifications
Specifications
Comnet - CNMC2SFP - Specifications
| Device | MEDIA CONVERTERS |
|---|---|
| UNSPSC Code | 43201553 |
