Comnet CNMCSFPPOE | 10/100/1000 Mbps Ethernet Media Converters with...
Description
Description
10/100/1000Mbps Multi-Rate Media Converter, 100FX/1000FX Selectable, PoE+.

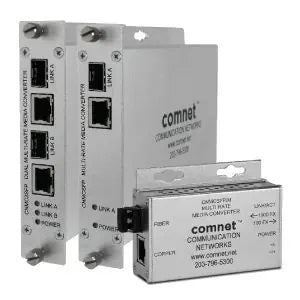

The ComNet CNMCSFPPoE electrical-to-optical Ethernet media converters accept a 10/100 or 1000 Mbps electrical input and converts this to a 100 or 1000 Mbps optical output (selected by a dip switch) and the 100/1000 Mbps optical input back to the 10/100/1000 Mbps electrical output. "Auto-Negotiating" is supported on the copper interface side. These devices use either one or two optical fibers, depending upon the selection of sold-separately SFP optical module.
Comnet Communication Networks - CNMCSFPPOE - Features
- Full-duplex transmission of 10/100/1000 Mbps Ethernet
- 10/100/1000BASE-TX electrical port
- 1000BASE-FX or 100BASE-FX optical port when used with suitable ComNet SFPs
- IEEE 802.3 compliant
- 10/100/1000 BASE-TX port supports auto-negotiation and automatic MDI/MDI-X crossover for full and half-duplex operation
- Uses customer-installed ComNet SFPs for compatibility with a wide range of optical fibers, optical connector types, and optical transmission distances of up to 120 km
- Designed for installation in harsh out-of-plant/unconditioned industrial or roadside operating environments (-40º to +75ºC ambient). Fully compliant with the environmental requirements of NEMA TS-2 for Traffic Signal Control Equipment
- Voltage transient protection on all power and signal input/ output line provide protection from voltage surges and other transient events
- Supports Jumbo Frames up to 10K Bytes for streaming video applications
- Bi-color LED status indicators confirm operating status
- Hot-swappable rack modules
