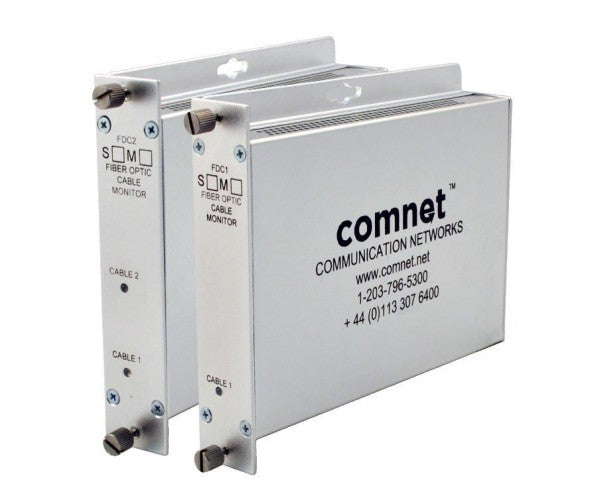

Comnet Communication Networks FDC1S 1 Ch Fiber Optic Break Monitor

The ComNet FDC1 single-channel and FDC2 dual-channel modems are designed to detect and report a breakage or the loss of optical signal in either multimode or single-mode fiber plants. Featuring a self-contained transmitter and receiver, these units provide an optical output that is transmitted continuously through a customer-furnished fiber loop, where it returns to the internal receiver section. Should the optical path be lost through a deliberate or unintentional breakage of the fiber, relay contacts in the modem immediately change their state and report the loss of optical signal. These contacts are user-configurable as either normally open (NO) or normally closed (NC), and may be utilized for either a local or remote indication of cable plant tampering, damage, or failure. The dual-channel version contains two independent transmitter and receiver units in one compact package, and is ideal for continuously monitoring the optical status of two separate fiber loops. Plug-and-play design ensures ease of operation, and no optical or electrical adjustments are ever required.

Features:

• Instantaneously reports optical fiber breakage or damage locally or remotely
• Dry relay contacts may be configured for NO or NC operation
• Automatic resettable solid state current limiters for unconditional modem protection
• Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
• Ambient operating temperature range: -40? C to +75? C for deployment in virtually any unconditioned out-of-plant or roadside environment
• Bi-color (Red/Green) status indicating LEDs provide rapid indication of critical operating parameters
• Hot-swappable rack modules
• Interchangeable between stand-alone or rack mount use - ComFit
• May be DIN-rail mounted by the addition of ComNet DIN-Rail adaptor plate.
