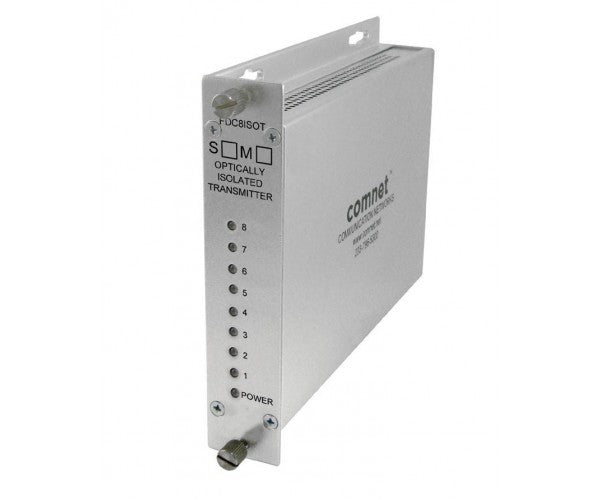

Comnet Communication Networks FDC8ISOTS1 Comnet 8 Channel Contact Mapping Transmi

Features:

• Transmits up to eight contact closures over one optical fiber
• Eight channel Point-to-Point architecture
• Optically isolated inputs rated at 1500 V to ground
• Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
• Microprocessor-based logic eliminates random contact closure status in electrically noisy environments
• Ambient operating temperature range: -40? C to +75? C for deployment in virtually any unconditioned out-of-plant or roadside environment
• Status indicating LEDs provide rapid indication of critical operating parameters
• Hot-swappable rack modules
• Interchangeable between stand-alone or rack mount use - ComFit
• May be DIN-rail mounted by the addition of ComNet DIN-Rail adaptor plate

Specifications:

• SKU: FDC8ISOTS1
• Manufacturer: Comnet
• Fiber Optic Transmission use: Serial Data
• Channels: 8 Channel
• Connection Type: ST
• Format: Single Mode
• Mounting Options: Rack Mount, Surface Mount
