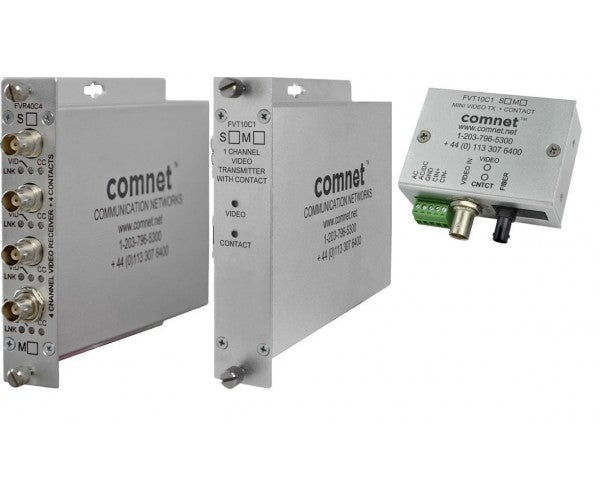

Comnet Communication Networks FVR10C1S1 -Channel Video/Contact Rec, Sm, 1 Fiber

Features:

• 10-bit Digital Video, Contact Closure Transmission: Receives one, two, or four real-time color video signals over one, two, or four optical fibers
• Supports one, two or four Contact Closures in the direction of video, ideal for tamper switch, etc
• Exceptionally low video distortion with zero performance variation vs. optical path
• Distances up to 4 km (2.5 mi) over Multimode Fiber
• Distances up to 54 km (33.6 mi) over Single Mode Fiber
• Exceeds All Requirements for EIA RS-250C Short-Haul Transmission Specifications
• Compatible with NTSC, PAL, or SECAM Video Standards
• NTCIP compatible
• Designed to meet NEMA TS 1/TS 2 and Caltrans Traffic Signal Control Equipment Environmental Standards
• Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
• Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
• Automatic resettable fuses on all power lines
• Hot-Swappable Modules
• 12VDC or 24VAC powered FVT10C1/M mini unit can be powered directly from camera
• ComFit units are interchangeable between stand-alone or rack mount use

Specifications:

• SKU: FVR10C1S1
• Manufacturer: Comnet
• Fiber Optic Transmission use: Audio, Serial Data
• Channels: 1 Channel
• Connection Type: ST
• Format: Single Mode
• Mounting Options: Rack Mount, Surface Mount
