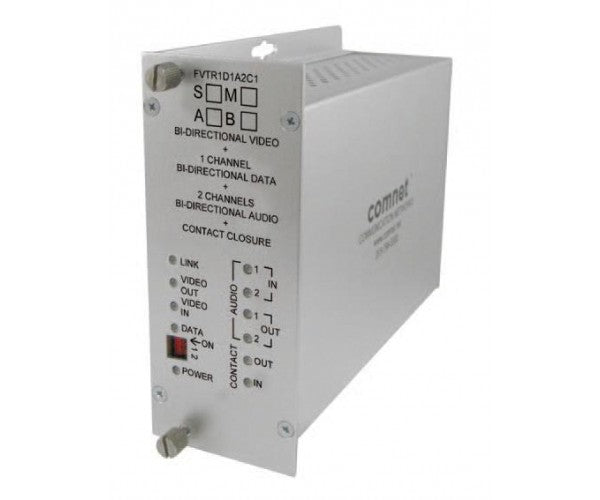

Comnet Communication Networks FVTR1A2D1C1S1A Bi-Directional Video Transmitter + 2 Bi-

Features:

• 10-bit digitally encoded bi-directional video transmission or video sync plus one bi-directional data channel, two bi-directional audio channels and one bi-directional contact closure
• 24-Bit 96kHz Digitally Encoded Transmission
• 20Hz - 18kHz Audio Bandwidth
• 600 Ohms Audio Input Impedance
• Exceeds all requirements for RS-250C short-haul transmission: True broadcast video performance
• Supports RS232, RS422 or RS485 (2 or 4-wire) data interfaces
• Compatible with all NTSC, PAL, or SECAM CCTV camera systems
• Transmits Balanced Line-Level Audio up to +6dBm
• Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
• Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events
• Automatic resettable fuses on all power lines
• Hot-swappable rack modules
• Interchangeable between stand-alone or rack mount use - ComFit
• Distances up to 30 miles (48 km)
• Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters

Specifications:

• SKU: FVTR1A2D1C1S1A
• Manufacturer: Comnet
• Fiber Optic Transmission use: Serial Data, Video
• Channels: 2 Channel
• Connection Type: ST
• Format: Single Mode
• Mounting Options: Rack Mount, Surface Mount
