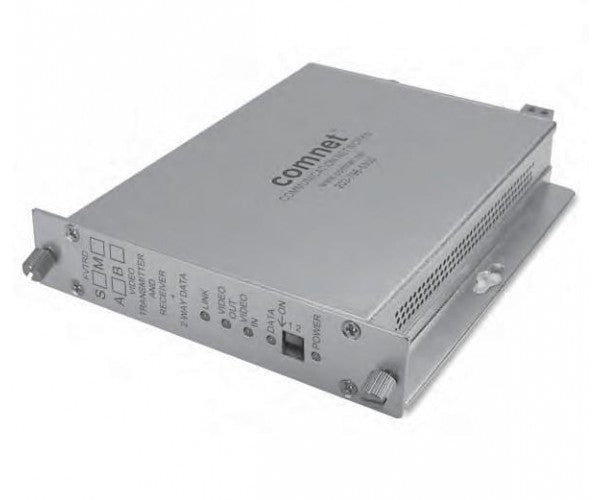

Comnet Communication Networks FVTRDM1A Video Transmitter Or Sync + Data Transce

The ComNet FVTRDM1A video transmitter/receiver and data transceiver supports simultaneous transmission of short-haul quality 10-bit bi-directional digital video or video sync plus bi-directional data over one multimode optical fiber. The module is universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces, and most major data protocols. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.

Features:

• 10-bit digital bi-directional video transmission or video sync + bi-directional data
• Exceeds all requirements for RS-250C short-haul transmission: True broadcast video performance
• Supports RS232, RS422 or RS485 (2 or 4-wire) data interfaces
• Compatible with all NTSC, PAL, or SECAM CCTV camera systems
• Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
• Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events
• Automatic resettable fuses on all power lines
• Hot-swappable rack modules
• Interchangeable between stand-alone or rack mount use – ComFit
• Distances up to 30 miles (48 km)
• Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters

Specifications:

• SKU: FVTRDM1A
• Manufacturer: Comnet
• Fiber Optic Transmission use: Data, Serial Data, Video
• Channels: 1 Channel
• Connection Type: ST
• Format: Multi-Mode
• Mounting Options: Rack Mount, Surface Mount
