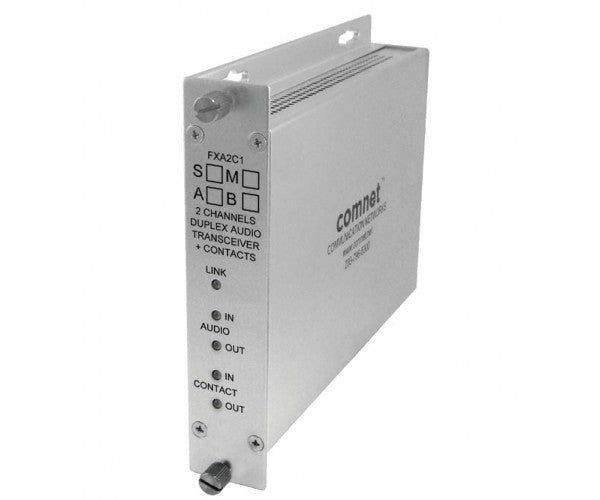

Comnet Communication Networks FXA2C1M1A Bi-Directional Audio + Bi-Directional Co

The ComNet FXA2C1(M,S)1 Series audio multiplexer provides the transmission of two audio signals and one contact closure over one multimode or single mode optical fiber. The modules use 24-bit 96kHz sample rate digital encoding for superior transmission of balanced line-level audio. Plugand-play design ensures ease of installation and no electrical or optical adjustments are required. Bi-color LED indicators confirm operational status. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack mounted.

Features:

• Two simplex or duplex audio channels
• One simplex or duplex contact closure
• 24-bit 96kHz digitally encoded transmission
• 20Hz-20kHz audio bandwidth
• 600Ω audio input impedance
• No in-field electrical or optical adjustments required
• Transmits balanced line-level audio up to +8.5dBm
• Distances up to 48km (30mi) without repeaters
• Automatic resettable fuses on all power lines
• Bi-color LED status indicators confirm operating status
• Hot-swappable rack modules
• Interchangeable between stand-alone or rack mount use - ComFit

Specifications:

• SKU: FXA2C1M1A
• Manufacturer: Comnet
• Fiber Optic Transmission use: Audio
• Channels: 2 Channel
• Connection Type: ST
• Format: Multi-Mode
• Mounting Options: Rack Mount, Surface Mount
