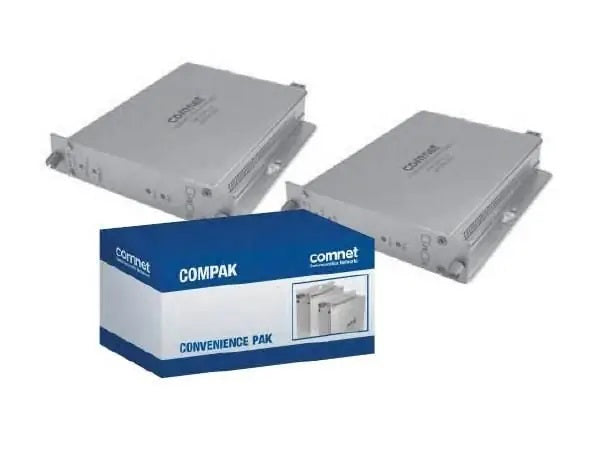

Comnet COMPAK1031M1 | Video with Bi-directionaldata Transmitter and...
Description
Description
FVT/R131M1 Digitally Encoded Video + Bi-directional Data, mm, 1 fiber.
The ComNet FVT1031M1 and FVR1031M1 video transmitter/ receiver and data transceiver support simultaneous transmission of short-haul quality 10-bit digital video, bi-directional data and up-the-coax data over one multimode optical fiber. The module is universally compatible with major CCTV camera manufacturers and supports RS-232, RS-422 and 2 or 4-wire RS-485 data interfaces, and most major data protocols as well as up-the-coax data. The FVT/ FVR1031 allows the user to choose bi-directional data or up-the-coax data through a switch on the unit. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.
Comnet Communication Networks - COMPAK1031M1 - Features
- 10-bit digitally encoded video transmission
- Exceeds all requirements for RS250C short-haul transmission: True broadcast video performance
- Supports RS232, RS422 or RS485 (2 or 4-wire) data interfaces
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
- Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events
- Automatic resettable fuses on all power lines
- Hot-Swappable Modules
- Distances up to 2 miles (3 km)
- Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
