Comnet COMPAK4VB | Single Mode 4-channel Video + Contact Receiver P...
Description
Description

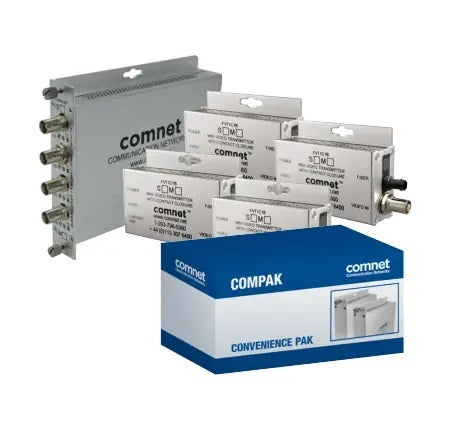

Four FVT1C1BM1 and One FVR4C4BM4, mm, 4 fiber.
The Comnet FVR4C4B Video and Contact Closure Receiver unit supports four independent channels of video and four independent dry contact closures over four separate optical fibers. The FVT1C1B-M video mini-transmitter supports transmission of a fixed video and a contact closure signal using an 8-bit digitally encoded signal on one multimode or single mode fiber optic cable. State-of-the-art 8-bit digital decoding is utilized for the four video channels. The contact closure channels may be used with triggered-event CCTV camera systems, or other applications such as access controlled gates, doors, or other equipment requiring remote actuation and control. Plug-andplay design ensures ease of installation, and no electrical or optical adjustments are ever required.
Comnet Communication Networks - COMPAK4VB - Features
- 8-bit digitally encoded video: transmits and receives 4 realtime color video signals on four separate optical fibers (via four transmitters and one receiver)
- 4 independent simplex dry contact closure channels
- Low video distortion, with zero performance variation vs. optical path loss
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
- Automatic resettable solid-state current limiters
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount use- ComFit
