Comnet FDC10RM1A | ComFit Contact Closure Transreceiver, Multimode,...
Description
Description

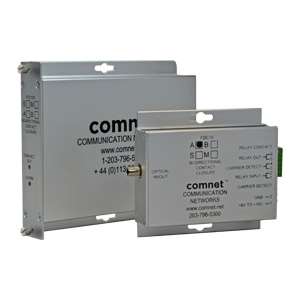

The ComNet FDC10 Series bi-directional contact closure transceiver provides bi-directional transmission of contact closure over one multimode or single mode optical fiber.
The transceiver has a contact input and a 0.5 amp contact output.
Plug-and-play design ensures ease of installation requiring no electrical or optical adjustments.
The bi-directional contact closure module has two relay outputs and one relay input.
One relay output follows the "relay input" at the remote end.
When the remote "relay input" is shorted, the local relay output is closed and vice-versa.
The second relay output is closed when "carrier" is detected from the remote end, this indicates that the optical fiber is connected and that the remote end has power and is operating.
The relay position (open for RED and closed for GREEN) is indicated by separate bi-color indicators for each relay.
Comnet - FDC10RM1A - Features
- Multimode
- 1310/1550nm wavelength
- 1 rack slot
- FDC10R(M,S)1(A,B) ComFit models may be utilized as a stand-alone package, or may be mounted within the ComNet C1 Card Cage, and is fully hot-swappable
- Transmits a single contact closure in one or two directions
- Distances up to 69 km (43 miles)
- 30 VDC, 0.5 amp relay output, normally open
- Point-to-Point transmission architecture
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Plug-and-play design ensures ease of installation requiring no electrical or optical adjustments.
- Relay contact for Carrier Detect (normally closed with carrier present)
- Automatic resettable solid-state current limiters
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
Specifications
Specifications
Comnet - FDC10RM1A - Specifications
| Device | TRANSCEIVERS |
|---|---|
| UNSPSC Code | 43201553 |
