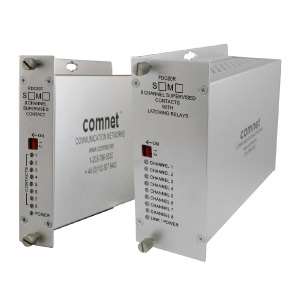

Comnet FDC80R485 | 8-Channel Supervised Contact Closure Receiver, RS485 Interface, 2 Rack Slots
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Comnet FDC80R485 | 8-Channel Supervised Contact Closure Receiver, R...
Description
Description
The ComNet FDC80 Series contact closure transmitter and receiver units provide transmission of up to eight independent supervised or unsupervised dry switch or relay contact closures over a single optical fiber, or any two-wire RS-485 copper circuit.
Microprocessor-based logic transmits the contact closure information in packets that are ordered and encoded, ensuring extremely robust and reliable transmission.
Packets that are garbled, or packets out of sequence with transmission bit errors will not cause random changes of state in the FDC80R receiver unit relays.
The supervising function in the FDC80T transmitter allows for the detection of short and open circuit conditions, and normally open or normally closed contact inputs are supported.
System faults are displayed via LED status indicators, and user-programmable summary fault alarm contacts are triggered in the FDC80R receiver unit.
The FDC80R receiver is offered in both latching and non-latching relay configurations.
External series and shunt resistors are included for each of the 8 contact input channels, for contact supervision.
Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted, or may be DIN-Rail mounted by the addition of model DINBKT1 adaptor plate.
Comnet - FDC80R485 - Features
- Receiver component
- RS-485 interface
- 2 rack slots
- Transmits up to eight independent supervised or unsupervised dry switch or relay contacts over one optical fiber, or via a 2-wire RS-485 point-to-point copper circuit
- Microprocessor-based logic and latching relays in the receiver unit eliminate random contact closure states in the event of a loss of the link, or a loss of prime operating power
- Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
- Indicating LEDs for monitoring power, contact closure status and summary fault
- Automatic resettable solid-state current limiters
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount use ComFit
- Lifetime Warranty
Specifications
Specifications
Comnet - FDC80R485 - Specifications
| UNSPSC Code | 43201553 |
|---|
