Comnet FVR10D1ES | Video Receiver/Data Transreceiver, 10-Bit Digita...
Description
Description

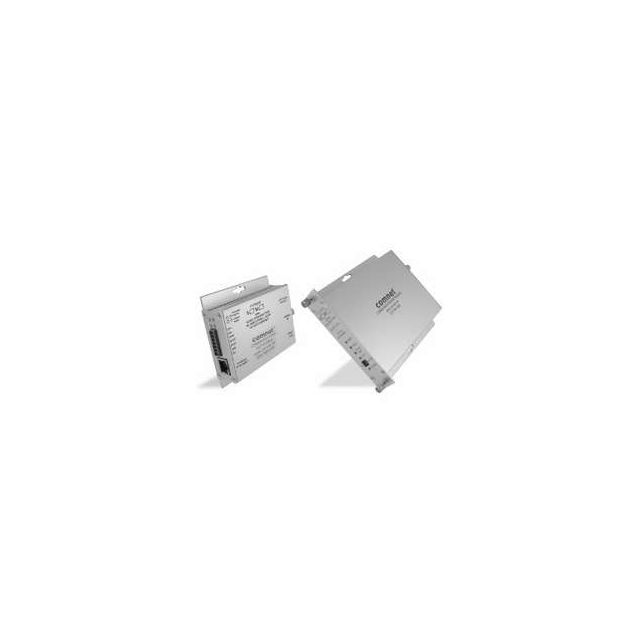

The ComNet FVT/FVR10D1E series video transmitter/receiver and data transceiver and the FVT10D1EM mini transmitter and data transceiver support the simultaneous transmission of short haul quality 10-bit EIA RS-250C digital video with one bi-directional data channel plus one 10/100 Mbps fast Ethernet port.
The modules are universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces and most data protocols.
It also supports "up-the-coax" data transmission from most major manufacturers.
Packaged in the exclusive ComNet ComFit housing, the FVT/FVR10D1E standard size units may be either wall or rack-mounted.
Comnet - FVR10D1ES - Features
- 10-bit digital video transmission
- One bi-directional data channel
- One 10/100 BASE-T/TX fast Ethernet port
- IEEE 802.3 compliant
- Automatic MDI/MDI-X crossover
- Exceeds all requirements for RS-250C short-haul transmission: True broadcast video perfance
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Certified to the requirements of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Voltage transient protection on all power and signal input/output ines provides unconditional protection from power surges and other voltage transient events.
- Automatic resettable fuses on all power lines
- Distances up to 30 miles (48 km)
- 8 Bi-color (Red/Green) LED status indicators provide rapid indication of criical operating parameters
- FVT/FVR10D1E(M)(S) is a hot-swappable rack module
- FVT/FVR10D1E(M)(S) is interchangeable between stand-alone or rack mount use ComFit
- Lifetime Warranty
Specifications
Specifications
Comnet - FVR10D1ES - Specifications
| Type | RECEIVER |
|---|---|
| UNSPSC Code | 46171600 |
