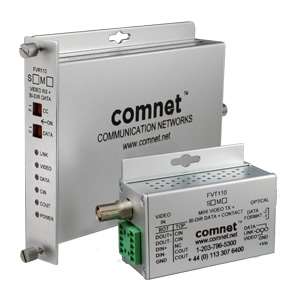

Comnet FVR110S1 | Mini Video Receiver/Data Transreceiver, Single Mode, 10-Bit Digitally Encoded Video with Up the Coax Extended Distance or Bi-Directional Data
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Comnet FVR110S1 | Mini Video Receiver/Data Transreceiver, Single Mo...
Description
Description
The ComNet FVT/FVR110 series is a video transmitter/receiver and data transceiver that supports the simultaneous transmission of short haul quality 10-bit EIA RS-250C digitally encoded video and bi-directional data over one multimode or single mode opt ical fiber.
The module is universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces and most data protocols.
It also supports "up-the-coax" data transmission from all major manufacturers ; utilizing time-based correction these units can achieve distances of 48km.
The FVT/FVR110 supports Panasonic Proteus, Vicon Vicoax and Pelco Coaxitron up-the-coax systems.
The FVT110 also transmits the state of a contact closure input over fiber to a n output relay on the FVR110.
The contact closure is not supported with the FVT110M.
Packaged in the exclusive ComNet ComFit housing, the full-size units may be either wall or rack-mounted.
Comnet - FVR110S1 - Features
- Supports Panasonic Proteus, Vicon Vicoax and Pelco Coaxitron up-the-coax systems
- 1 bi-directional data channel
- Contact closure in direction of video
- Distances up to 30 miles (48 km)
- Exceeds all requirements for RS-250C short-haul transmission: Tr broadcast video performance
- Time-Based Corrected Up-the_Coax Data
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operatng temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Voltage transient p rotection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events.
- Automatic resettable fuses on all power lines
- Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
- FVT/FVR110(M)(S)1 is a hot-swappable rack module
- FVT/FVR110(M)(S)1 is interchangeable between stand-alone or rack mount use ComFit
- Lifetime Warranty
Specifications
Specifications
Comnet - FVR110S1 - Specifications
| Type | TRANSMITTER |
|---|---|
| UNSPSC Code | 46171600 |
