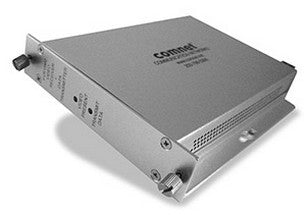

Comnet FVR15M2 Video + Reverse Data (Cost Effective)

The ComNet™ FVT/FVR15M2 series video and data transceiver supports the simultaneous transmission of video and return data over two multimode optical fibers. The module is universally compatible with all major CCTV camera manufacturers and supports RS232 and RS422 data interfaces and all major data protocols. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rackmounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.

Features

AM Video Transmission

NTSC, PAL, or SECAM compatible

Full Color Compatibility

NTCIP Compatible

Supports RS232 or RS422 Data interfaces

Transparent to data encoding/compatible with major

CCTV camera manufacturers

No In-field electrical or optical adjustments

Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters

Distances up to 1.5 miles (2.5 km) without repeaters

Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events

Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of

NEMA TS-1/TS-2 and the Caltrans Specification for Traffic

Signal Control Equipment

Hot-swappable rack modules

Interchangeable between stand-alone or rack mount use

ComFit

Automatic resettable fuses on all power lines

Specs

Manufacturer Comnet Communication Networks

Condition New

Video Input: 1 volt pk-pk (75 ohms)

Bandwidth: 5 Hz - 10 MHz

Differential Gain: <5%

Differential Phase: <5°

Tilt: <1%

Signal-to-Noise Ratio (SNR): >55 dB @ 10 dB ATTN.

Max. RG-59 COAX Distance: 100m (300ft) Camera to Fiber Optic

Module to maintain 6Mhz Bandwidth

Data Format: RS232, RS422, Manchester, biphase

Data Rate: DC-115 Kbps (NRZ)

Wavelength 850 nm

Number Of Fibers

FVT/FVR15M2 2

Led Indicators - Video Present

Transmit Data

Receive Data

Optical: ST

Power: Terminal Block

Data: Terminal Block

Video: BNC (Gold Plated Center-Pin)

Power:

Surface Mount: 8-15 VDC @ 250 mA

Rack Mount: From Rack

Number of Rack Slots: 1

Current Protection: Automatic Resettable Solid-State

Current Limiters

Circuit Board: Meets IPC Standard

Size (in./cm) (L×W×H) 6.1 × 5.3 × 1.1 in., (15.5 × 13.5 × 2.8 cm)

MTBF: >100,000 hours

Operating Temp: -40° C to +75° C

Storage Temp: -40° C to +85° C

Heat Generation: 10 BTU

Relative Humidity: 0% to 95% (non-condensing)
