Comnet FVR21/LV | Dual Video Receiver with Manual Gain, Mm, 2 Fiber...
Description
Description

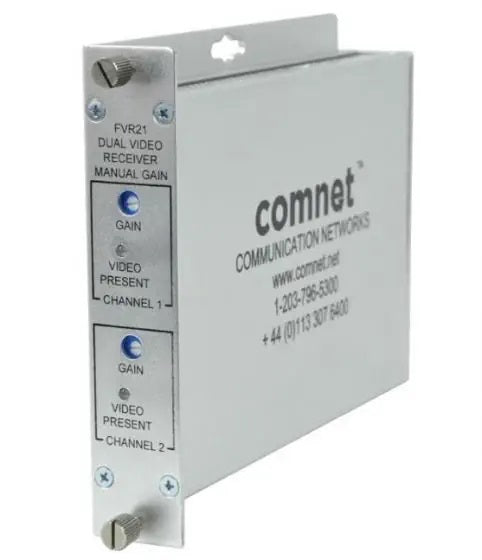

Dual Video Receiver With Manual Gain, mm, 2 fiber with Video Loss Relay.
The ComNet FVR21/LV dual video receiver detects two independent AM video signals in one module on two independent multimode fiber optic cables. The module is not a multiplexer. The unit incorporates a "Loss of Video" relay for each channel. Upon loss of video signal or optical fiber break, the normally closed relay opens. The module is ideal for CCTV installations and the rack mount version can be used to double the fixed video capacity of the C1 rack for up to 28 independent video channels per card cage. The modules utilize Manual Gain Control. The receiver is compatible with the ComNet FVT11M and the FVT20 dual video transmitter. Plug-and-play design ensures ease of installation.
Comnet Communication Networks - FVR21/LV - Features
- AM Video Receiver
- NTSC, PAL, SECAM compatible
- Compatible with FVT11M and FVT20
- Loss of Video Contact Relay
- Manual Gain Control
- Two independent receivers in one model
- Full color compatibility
- Can be used to double the fixed video capacity of a C1 card cage
- Plug-and-Play design for ease of installation
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
- Automatic resettable fuses on all power lines
- Bi-Color (Red/Green) indicator to monitor system performance
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount use- ComFit
