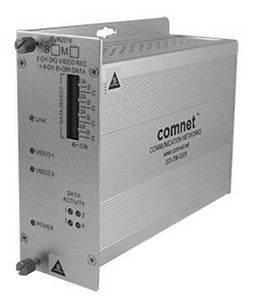

Comnet FVR40D4SFP 4-Channel 10-Bit Digital Video Reciever With 4 Bi-Directional Data Channels Wit

The ComNet™ FVTFVR40D4SFP series optical video link provides transmission of four 10-bit short-haul quality Digitally Encoded video channels and four bi-directional data channels through a selectable small form factor pluggable module (SFP). The data channels support RS232, RS422 and 2 wire and 4 wire RS485. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for confirming operating status. These units are interchangeable between stand-alone or card mount configurations.

Features

Up to four 10-bit digital video channels

4 Bi-directional data channels

Uses interchangeable SFPs for fiber type, distance and connector

Exceeds all requirements for RS-250C medium haul transmission

Compatible with all NTSC, PAL, or SECAM CCTV camera systems

Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment

Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events.

Automatic resettable fuses on all power lines

Hot-Swappable Modules

Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters

Specs

Manufacturer Comnet Communication Networks

Category New

Video Input: 1 volt pk-pk (75 ohms)

Overload: >1.5V pk-pk

Bandwidth: 5 Hz - 6.5 MHz

Differential Gain: <2%

Differential Phase: <0.7º

Operating Temp: -40° C to +75° C

Storage Temp: -40° C to +85° C

Relative Humidity: 0% to 95% (non-condensing)
