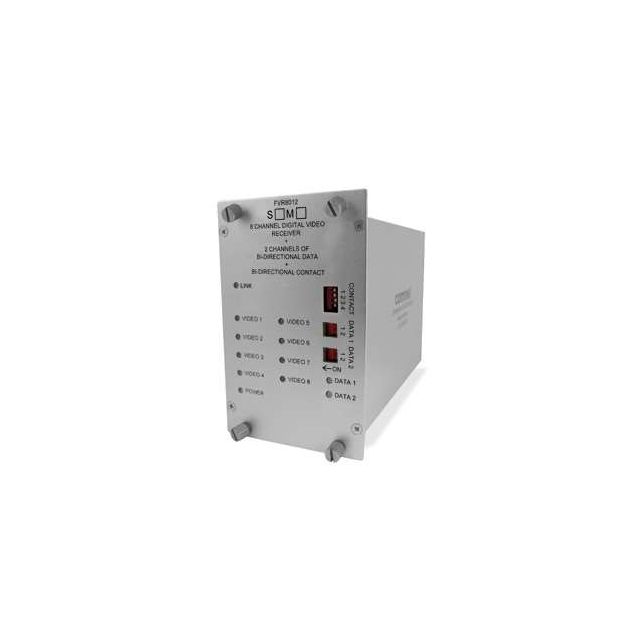

Comnet FVR8012S1 | Receiver, Single Mode, 8 Video/2 Bi-Directional ...
Description
Description
The ComNet FVT/FVR8012(M)(S)1 Series transmits eight (8)channels of video utilizing state of the art 10-bit digital encoding and decoding for very high quality video transmission, along with two (2) channels of bi-directional data and one (1) bi-directional contact closure over one single mode or multimode optical fiber.
This equipment is environmentally hardened and suitable for use in unconditioned roadside or out-of plant installations.
The FVT/FVR8012 is compatible with NTSC, PAL and SECAM video transmission protocols and supports bi-directional RS232, 422 and 485-2/4W data.
Plug-and-play design ensures ease of installation and no electrical or optical adjustments are required.
Bi-Color LED indicators are provided to indicate the status of the system, video and data.
Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.
No additional parts or power supplies are required.
Comnet - FVR8012S1 - Features
- Receiver component
- Single mode
- 10-bit digitally encoded video transmission: transmits 8 real-time color video signals and 2 bi-directional data signals on one optical fiber
- Exceeds all requirements for RS-250C Short Haul transmission: high quality video performance
- Supports RS 232, RS 422, and 2- or 4-wire RS 485
- One bi-directional contact closure
- Compatible with all NTS C, PAL, or SE CAM CCTV camera systems
- Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS -1/TS -2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events.
- Robust design ensures extremely high reliability in unconditioned out-of-plant environments
- Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount use ComFit
Specifications
Specifications
Comnet - FVR8012S1 - Specifications
| Type | MULTIPLEXER |
|---|---|
| Form Factor | BLADE |
| UNSPSC Code | 46171600 |
