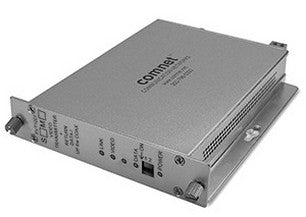

Comnet FVT1021S1 Digitally Encoded Video Transmitter/Data Receiver, 10-Bit, 1 Fiber, Single Mode

The ComNet™ FVT/FVR1021 series video transmitter/ receiver and data transmitter/receiver supports the simultaneous transmission of short-haul quality 10-bit Digitally Encoded video and return data over one multimode or single mode optical fiber. This module is universally compatible with major CCTV camera manufacturers and supports RS-232 and RS-422 data interfaces. The FVT/FVR1021 allows the user to set the data through a switch on the unit. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.

Features

10-bit Digital Video Transmission

Video Receiver/Data Transceiver (1550/1310 nm)

Compatible with all NTSC, PAL, or SECAM CCTV camera systems

Full Color Compatibility

Exceeds RS-250C Short-Haul quality

Supports RS-232 and RS-422 data interfaces

Supports Manchester and bi-phase data

No In-field electrical or optical adjustments

Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters

Integrated WDM for greater product reliability

Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events.

Distances 3 km (2 ml) without repeaters

Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.

Hot-swappable rack modules

Interchangeable between stand-alone or rack mount use – ComFit

Automatic resettable fuses on all power lines

Specs

Manufacturer Comnet Communication Networks

Category New

Video Input: 1 volt pk-pk (75 ohms)

Overload: >1.5V pk-pk

Bandwidth: 5 Hz - 6.5 MHz

Differential Gain: <2%

Differential Phase: <0.7°

Tilt: <1%

Signal-to-Noise Ratio (SNR): >67 dB @ Maximum Optical Loss Budget

Max. RG-59 COAX Distance: 100m (300ft) Camera to Fiber Optic Module to maintain 6Mhz Bandwidth

Operating Temp: -40° C to +75° C

Storage Temp: -40° C to +85° C

Relative Humidity: 0% to 95% (non-condensing)
