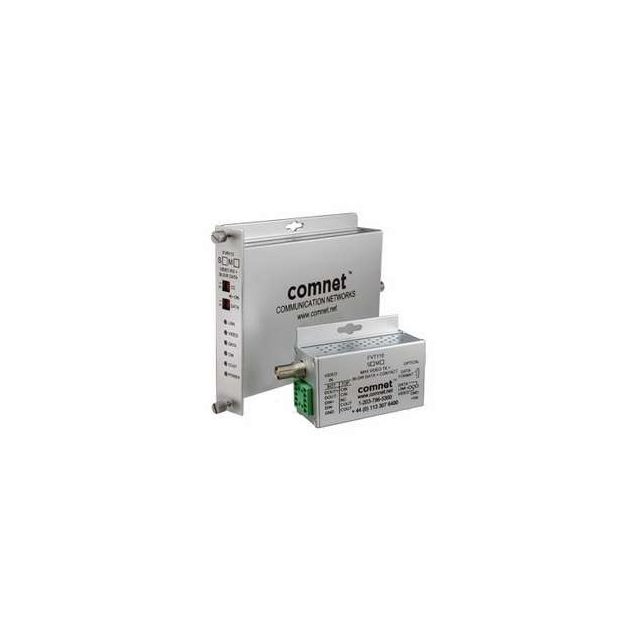

Comnet FVT110M1 | Video Receiver/Data Transreceiver, Multimode, 10-Bit Digitally Encoded Video for Bilinx and Bi-Phase Control
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Comnet FVT110M1 | Video Receiver/Data Transreceiver, Multimode, 10-...
Description
Description
The ComNet FVT/FVR109A series is a video transmitter/receiver and data transceiver that supports the simultaneous transmission of short haul quality 10-bit EIA RS-250C digitally encoded video and bi-directional data over one multimode or single-mode op tical fiber.
The module is universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces and most data protocols.
It also supports "up-the-coax" data transmission from all major manufacturer s; utilizing time-based correction these units can achieve distances of 48km.
The FVT/FVR109A supports Panasonic Proteus(TM), Vicon Vicoax(TM) and Pelco Coaxitron(TM) up-the-coax systems.
The FVT109A also transmits the state of a contact closure input over fiber to an output relay on the FVR109A.
The contact closure is not supported with the FVT109AM.
Packaged in the exclusive ComNet ComFit housing, the full-size units may be either wall or rack-mounted.
Comnet - FVT110M1 - Features
- Supports Panasonic Proteus(TM), Vicon Vicoax(TM) and Pelco Coaxitron(TM) up-the-coax systems
- 1 bi-directional data channel
- Contact closure in direction of video
- Distances up to 30 miles (48 km)
- Exceeds all requirements for RS-250C short-haul tranission: True broadcast video performance
- Time-Based Corrected Up-the-Coax Data
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Tested and certified by an independent laboratory for full compliance with the environmental requirements (amient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events.
- Automatic resettable fuses on all power lines
- Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
- FVT/FVR110(M)(S)1 is a hot-swappable rack module
- FVT/FVR110(M)(S)1 is interchangeable between stand-alone or rack mount use - ComFit
- Lifetime Warranty
Specifications
Specifications
Comnet - FVT110M1 - Specifications
| Type | TRANSMITTER |
|---|---|
| UNSPSC Code | 46171600 |
