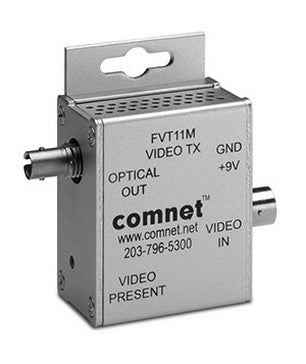

Comnet FVT11M Video XTMR, Multimode

The ComNet™ FVT11M video mini-transmitter supports transmission of a fixed video signal using AM modulation on one multimode fiber optic cable. The FVT11M video transmitter is compatible with the FVR11M, FVR10M, FVR21, and FVR22 receivers. Plug-and-play design ensures ease of installation requiring no electrical or optical adjustments. The transmitter incorporates a bi-color (Red/Green) indicating LED for monitoring proper system operation.

Features

AM Video Transmission

NTSC, PAL, SECAM compatible

Full color compatibility

No in-field electrical or optical adjustments required

Power: 24 VAC electrically isolated from case and BNC

Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events

Bi-Color (Red/Green) Power indicator

Specs

Manufacturer Comnet Communication Networks

Condition New

Video Input: 1 volt pk-pk (75 ohms)

Bandwidth: 5 Hz - 10 MHz

Differential Gain: <5%

Differential Phase: <5°

Tilt: <1%

Signal-to-Noise Ratio (SNR): 60 dB

Max. RG-59 COAX Distance: 100m (300ft) Camera to Fiber Optic

Module to maintain 6Mhz Bandwidth

MTBF: >100,000 hours

Operating Temp: -40° C to +75° C

Storage Temp: -40° C to +85° C

Relative Humidity: 0% to 95% (non-condensing)
