Brand: Comnet Communication Networks | SKU: 404727

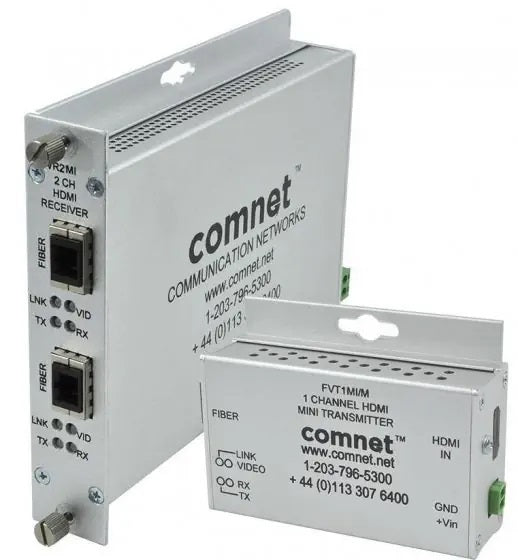

Comnet FVT1MI | Hdmitm Digital Interface Multimode Fiber Link

$1,575.95

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Comnet FVT1MI | Hdmitm Digital Interface Multimode Fiber Link

The ComNet FVT1MI features an HDMI fiber link for uncompressed high-resolution bi-directional communication with full HDCP copyright protection, EDID and CEC connection functionality. The FVT1MI transmits pixel-forpixel images and full 24-bit scan rate with no contouring or bit reduction. Fully compatible with HDMI compliant sources and monitors, supporting all possible horizontal and vertical sync configurations. The FVT1MI transmits up to 8 channels of uncompressed audio at sample sizes of 16-bit, 20-bit and 24-bit, with sampling rates of 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz. This series also supports any IEC 61937-compliant compressed audio stream, such as Dolby Digital and DTS, and up to 8 channels of one-bit DSD audio (as used on SACD/Super Audio CDs), and at rates up to four times that of Super Audio CD, and lossless compressed audio streams such as Dolby True HD and DTS-HD Master Audio.

Comnet Communication Networks - FVT1MI - Features

Supports up to 1080p60
Scalable to HDMI Version 1.3a- 16 bit color
Bi-directional communication for HDCP copyright, EDID and CEC functionality
HDCP encoding remains intact and unmodified
Fully uncompressed, 100% transparent, No Frame Dropping
Small stand-alone package (FVT/FVR1MI/M)
Optional ComNet model C1 rack
1 RU racking system available
Power Supply Included
Locking cable screw prevents the connectors from accidental disconnection
Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
Hot-Swappable Modules
ComFit Models are interchangeable between stand-alone or rack mount use
Small size units are designed as stand-alone for installations where space is at a premium
May be DIN-rail mounted by the addition of ComNet model DINBKT1 or DINBKT4 adaptor plate

Specifications

[{"title":"Features","items":["Supports up to 1080p60","Scalable to HDMI Version 1.3a- 16 bit color","Bi-directional communication for HDCP copyright, EDID and CEC functionality","HDCP encoding remains intact and unmodified","Fully uncompressed, 100% transparent, No Frame Dropping","Small stand-alone package (FVT/FVR1MI/M)","Optional ComNet model C1 rack","1 RU racking system available","Power Supply Included","Locking cable screw prevents the connectors from accidental disconnection","Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters","Hot-Swappable Modules","ComFit Models are interchangeable between stand-alone or rack mount use","Small size units are designed as stand-alone for installations where space is at a premium","May be DIN-rail mounted by the addition of ComNet model DINBKT1 or DINBKT4 adaptor plate"]}]

Documents and Downloads
