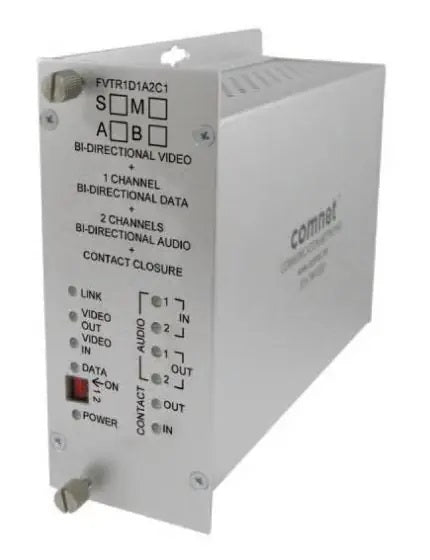

Comnet FVTR1A2D1C1M1A | Bi-directional Video Transmitter + 2 Bi-directional Audio Channels + Bi-directional Data

[{"title":"Features","items":["10-bit digitally encoded bi-directional video transmission or video sync plus one bi-directional data channel, two bi-directional audio channels and one bi-directional contact closure","24-Bit 96kHz Digitally Encoded Transmission","20Hz - 18kHz Audio Bandwidth","600 Ohms Audio Input Impedance","Exceeds all requirements for RS-250C short-haul transmission: True broadcast video performance","Supports RS232, RS422 or RS485 (2 or 4-wire) data interfaces","Compatible with all NTSC, PAL, or SECAM CCTV camera systems","Transmits Balanced Line-Level Audio up to +6dBm","Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment","Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events","Automatic resettable fuses on all power lines","Hot-swappable rack modules","Interchangeable between stand-alone or rack mount use- ComFit","Distances up to 30 miles (48 km)","Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters"]}]
