Comnet FVTRM1A | Bi-directional Digitally Encoded Video Transmitter...
Description
Description

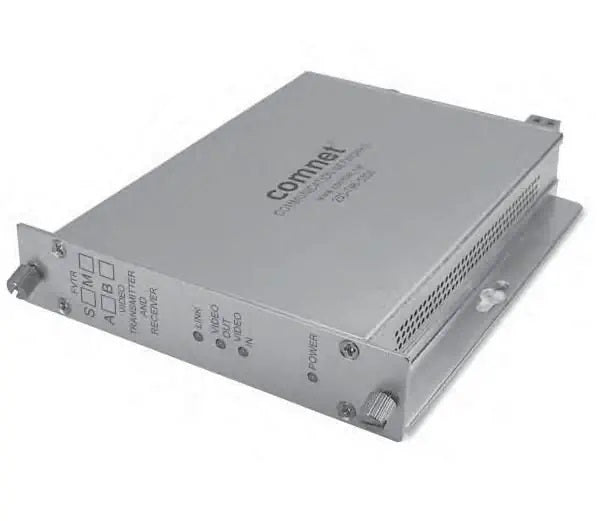

Bi-directional Digitally Encoded Video Transmitter or Sync, 10-Bit, mm, 1 fiber.
The ComNet FVTR(M)(S)1 series video transmitter supports the transmission of short-haul quality 10-bit digital bi-directional video or sync over one multimode optical fiber. This module is universally compatible with major CCTV camera manufacturers. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rackmounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.
Comnet Communication Networks - FVTRM1A - Features
- 10-bit Digital Video Transmission
- Bi-directional Video or Sync
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Full Color Compatibility
- Exceeds RS-250C Short-Haul quality
- No In-field electrical or optical adjustments
- Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
- Integrated WDM for greater product reliability
- Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events
- Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount use- ComFit
- Automatic resettable fuses on all power lines
