Comnet PS48VDC-10A | 90-264 VAC 47-63hz Power Supply 48 Volt/480w f...
Description
Description

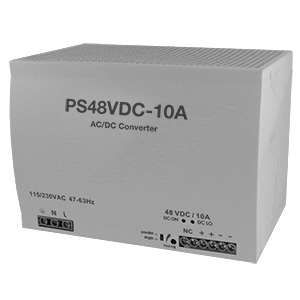

ComNet model PS48VDC-10A is a high-quality, lownoiseswitching mode power supply ideally suitedto those applications requiring POE (Power OverEthernet).
This rugged unit may be either DIN-railor shelf-mounted, providing an identical mountingconfiguratio n to the mating POE switch.
Up to 24POE field devices may be powered from a singlesupply, and the high output current capacity providesan adequate safety margin.
A maximum of three ofthese units may be paralleled together to triple thenumber of POE dev ices supported.
The wide ambientoperating temperature range permits installation inmost out-of-plant and unconditioned environments,such as those found in intelligent transportationsystems or factory automation/industrial controlapplications.
Unconditi onal line and load protectionis provided.
Comnet - PS48VDC-10A - Features
- Universal AC input: 90 to 264 VAC, 47-63Hz
- Mounts on standard 7.5 or 15 mm DIN-rail
- Automatic power factor correction (PFC)
- High operating efficiency; up to 90%
- Small package for limited space installations
- Natural convection cooling; no troublesomens
Specifications
Specifications
Comnet - PS48VDC-10A - Specifications
| Type | POWER SUPPLY |
|---|---|
| UNSPSC Code | 39121031 |
