Brand: Corning
|
SKU:
9882763

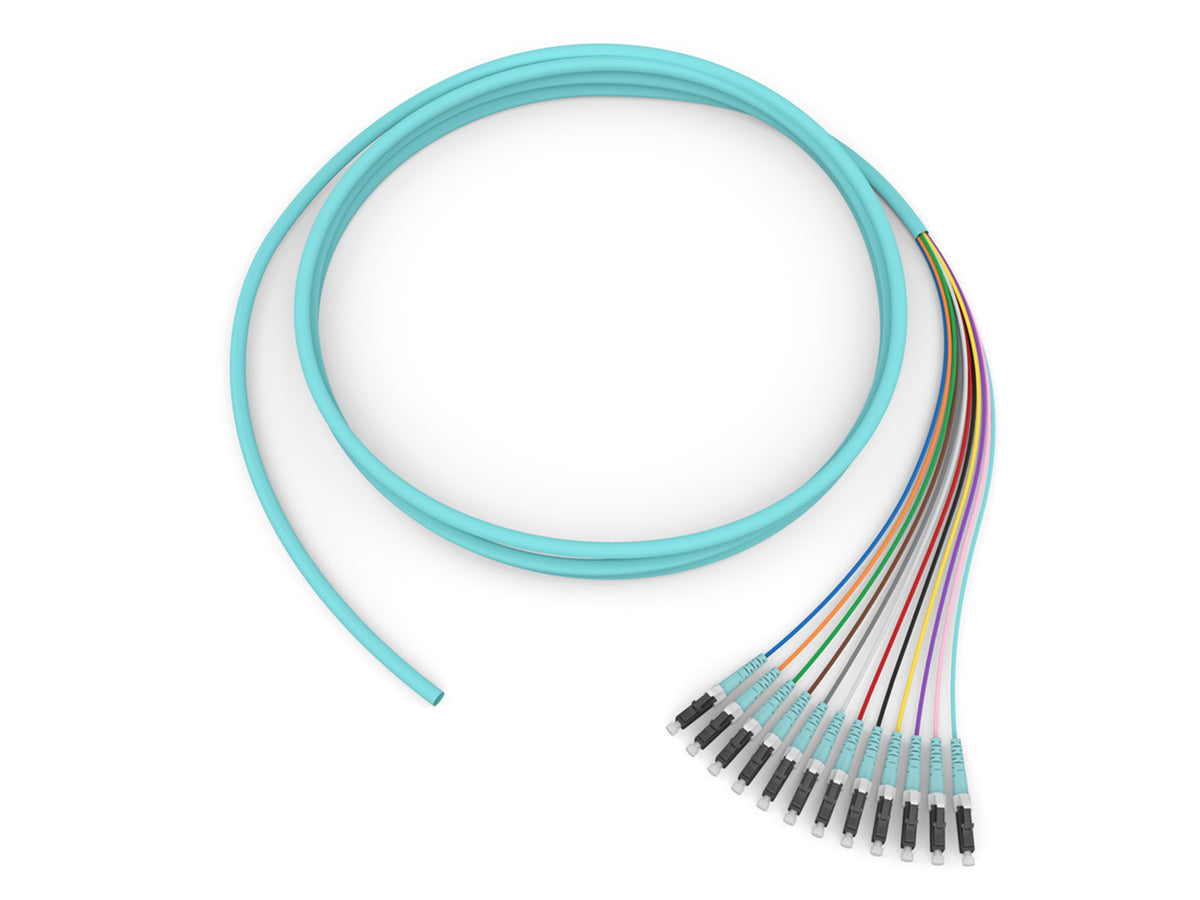

Corning 000312T8120005M | Fiber Optic Jumper, 12 F, Pigtail to LC, MIC Cable, Riser, 2.0 mm legs
Regular price
$301.86
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 000312T8120005M | Fiber Optic Jumper, 12 F, Pigtail to LC, ...
Regular price
$301.86
Unit price
Description
Description
Corning 000312T8120005M | Fiber Optic Jumper, 12 F, Pigtail to LC, MIC Cable, Riser, 2.0 mm legs Standard Pigtail / Standard LC Simplex MM, OM3 50um, 12F, MIC Riser, Standard Aqua Jacket 5 Meters
Corning - 000312T8120005M - Features
- Flame-retardant jacket
- Rugged and durable
- Superior Performance Testing
- Every termination is tested to ensure the highest in network performance
- State-Of-The-Art Manufacturing Processes
- Corning proprietary manufacturing processes and advanced technology result in unsurpassed product consistency
- Corning advantage
- Integrated developer and manufacturer of cable, connectors and fiber to ensure overall cable assembly performance
Specifications
Specifications
Corning - 000312T8120005M - Product Categories
- Shop by Manufacturer/Corning
- Fiber Optic Cable Assemblies
- Indoor Cable Assemblies
Corning - 000312T8120005M - Specifications
| General Specifications | - |
|---|---|
| Product Number | 000312T8120005M |
| EAN Code | 4056418600291 |
| Flame Rating | Riser (OFNR) |
| Fiber Category | 50 µm MM (OM3) |
| Cable Assembly Type | Multifiber |
| Application | General Building Applications, Vertical Riser |
| Cable Type | Tight-Buffered |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Environmental Conditions | - |
| Temperature Range, Installation | -5 °C to 50 °C (23 °F to 122 °F ) |
| Design | - |
| Fiber Count | 12 |
| Outer Jacket Color | Aqua |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 80 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 2000 MHz*km / - |
| Maximum Attenuation | 2.8 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 1500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 300 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM3 |
| Specifications - Connector A | - |
| Connector Type | No connector |
| Specifications - Connector B | - |
| Insertion Loss, Typical | 0.35 dB |
| Boot Color | Aqua |
| Connector Type | LC |
| Ferrule Material | Ceramic |
| Housing Color | Black |
| Housing Material | Composite |
| Ordering Information | - |
| Units per Delivery | 1/1" |
| Furcation - Connector B | - |
| Leg Diameter | 2 mm (0.08 in) |

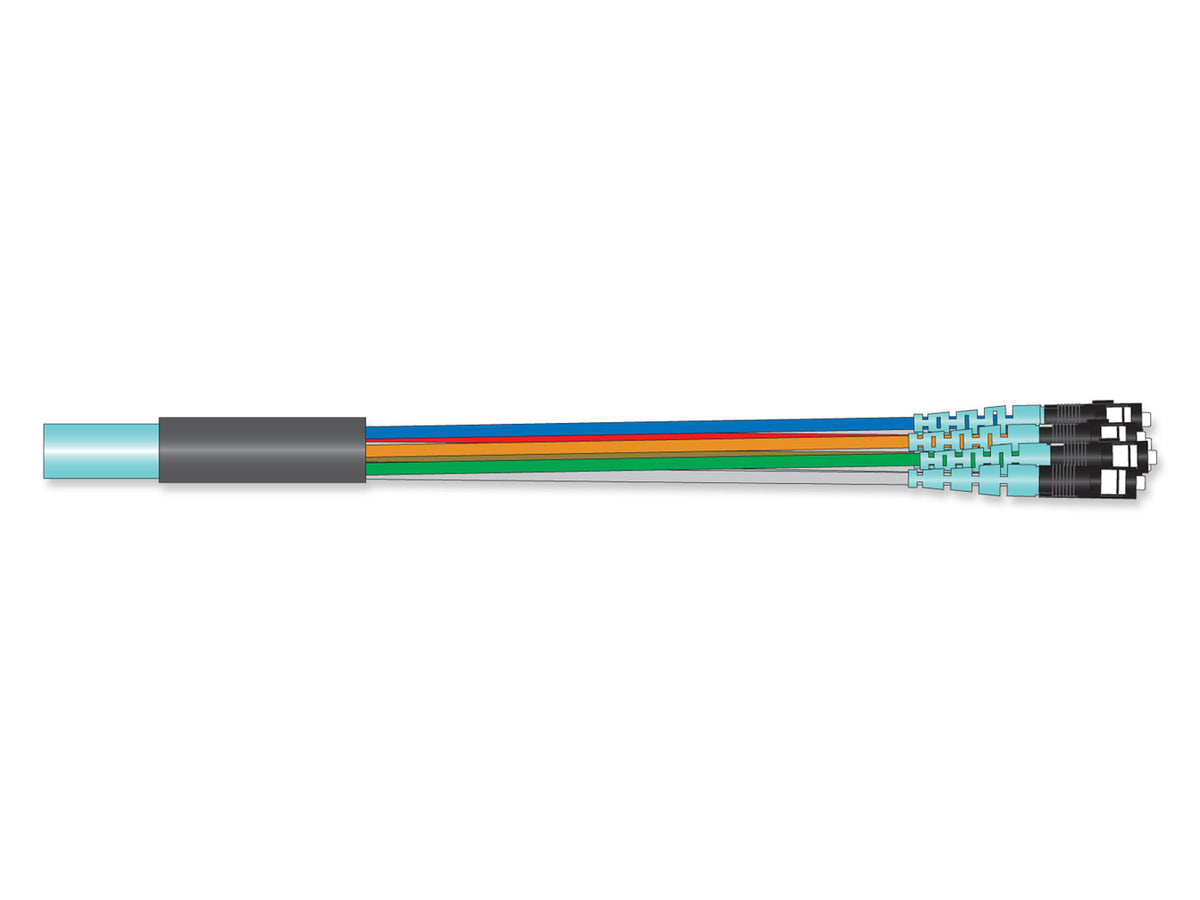

| Plug Type | Heat-shrink sleeve |
