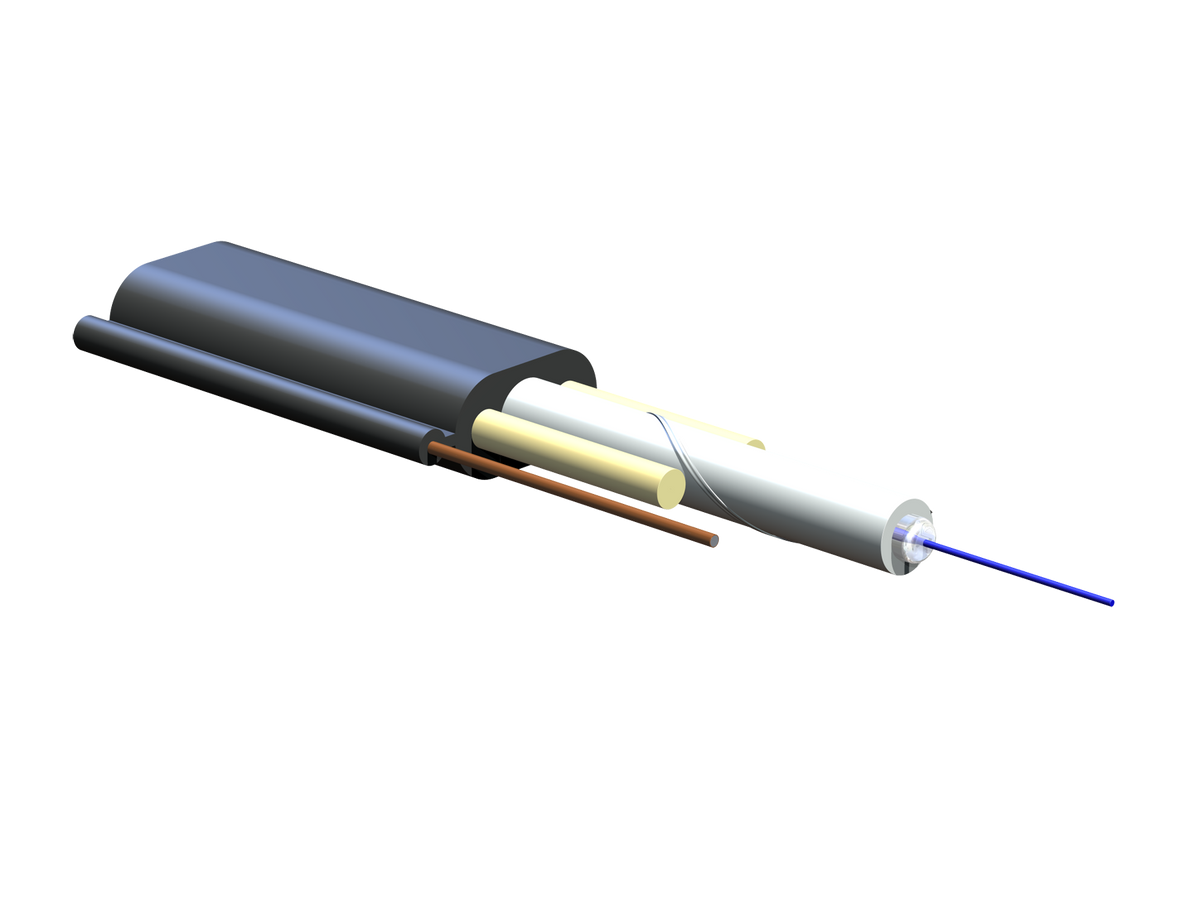

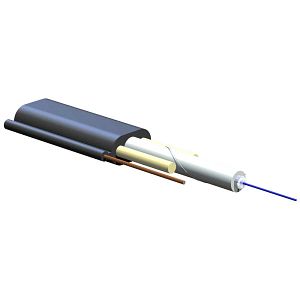

Corning 001EB1-14100A20 | SST-Drop Single-Tube, Toneable, Gel-Filled Cable 1 F, Single-mode (OS2)
Corning - 001EB1-14100A20 - Features
- Standard ALTOS Cable tube design in single-tube design
- Standard practices and hardware compatibility
- Crush resistance
- Fiber protection and signal integrity
- RDUP (RUS) Listed
- Material acceptability
- Toneable version
- Underground detection
- Standard ALTOS Cable tube design in single-tube design
- Standard practices and hardware compatibility Crush resistance
- Fiber protection and signal integrity RDUP (RUS) Listed
- Material acceptability Toneable version
- Underground detection
Specifications
Specifications
Corning - 001EB1-14100A20 - Product Categories
- Shop by Manufacturer/Corning
- Wire & Cable
- Voice and Data Cable
- Outdoor Fiber Optic Cable
- Fiber Optic Cables
- Outdoor
- Outdoor Direct Buried Cables
Corning - 001EB1-14100A20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 001EB1-14100A20 |
| EAN Code | 4056418187556 |
| Environment | Outdoor |
| Cable Type | Drop |
| Product Type | Self-Supporting |
| Fiber Category | Single-mode (OS2) |
| Application | Self-Supporting |
| Fiber Count | 1 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | Compact Drop Subunit listed to National Electrical Code (NEC) OFNR, CSA FT-4 |
| Environmental Conditions | - |
| Temperature Range, Installation | -30 °C to -30 °C (-22 °F to -22 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |

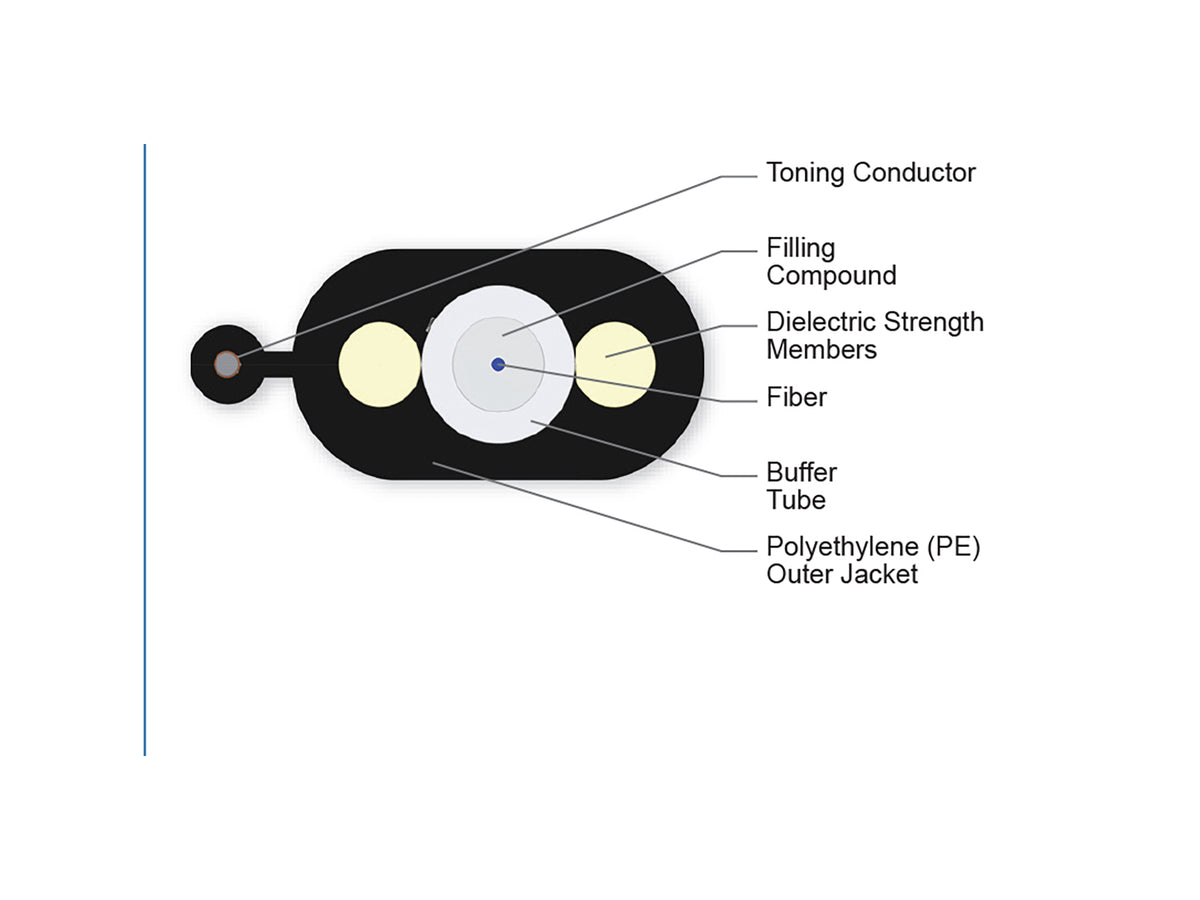

| Cable Design | - |
| Fiber Count | 1 |
| Buffer Tube Color Coding | Natural |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Buffer Tube Color | Natural |
| Buffer Tube Diameter | 3 mm (0.12 in) |
| Toning Conductor | Copper Wire, AWG 24 |
| Fiber Coloring | Blue |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 400 N (89.92 lbf) |
| Max. Tensile Strength, Short-Term | 1350 N (303.49 lbf) |
| Min. Bend Radius Operation | 80 mm (3.15 in) |
| Nominal Outer Diameter | 10.2 mm x 4.7 mm (0.4 in x 0.19 in ) |
| Ordering Information | - |
| Weight | 37 kg/km (24.86 lb/1000 ft) |
| Convenient Contractor-sized Packaging Length | 609.6 m (2000 ft) gross weight 75 lbs., no specialized equipment needed |
| ECCN | 5A991.d |
| Country of Origin | US - United States |
| Fiber Category | Singlemode - OS2 |
| Fiber Count | 1 |
