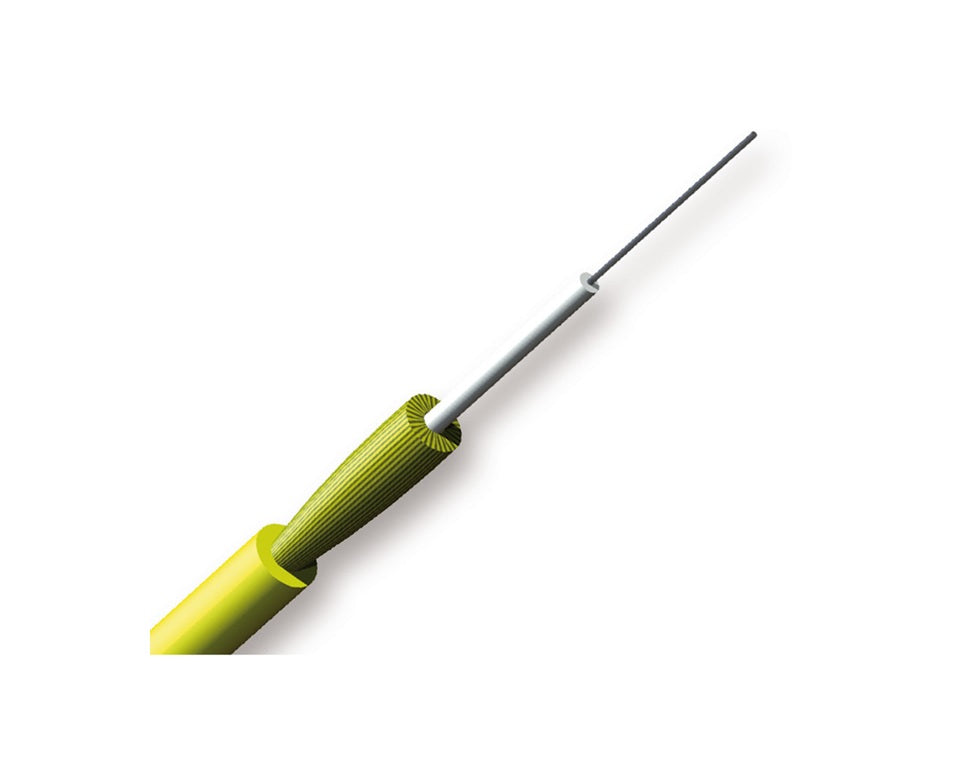

Corning 001U21-31131-29 | ClearCurve Compact Drop, Indoor, Tight-Buffered Cable, Riser 1 F, Single-mode
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 001U21-31131-29 | ClearCurve Compact Drop, Indoor, Tight-Bu...
Description
Description
Corning ClearCurve® compact drop cables are part of a product family developed to solve the challenges associated with multidwelling unit (MDU) deployments. Enabled by a truly bendinsensitive fiber, this small-profile, yet durable, cable is optimized for applications within the living unit. Smaller and more flexible than CAT 5e cable, ClearCurve compact drop cable can accomplish tight turns to a miniumum bend-radius of 5 mm (0.2 in) with negligible bend loss and can be run under carpet, along door frames and molding, in raceway or microduct.
Specifications
Specifications
Corning - 001U21-31131-29 - Specifications
| Manufacturer Part Number | 001U21-31131-29 |
|---|---|
| Brand Name | Corning |
| Item Description | ClearCurve Compact Drop, Indoor, Tight-Buffered Cable, Riser 1 F, Single-mode |
| Installation Methods | Horizontal, Riser, Drop |
| Cable Type | Single Tube |
| Environment | Indoor |
| Product Type | Interconnect |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Riser (OFNR) |
| Cable geometry | Round |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code® (NEC®) OFNP, NFPA 262, CSA FT-6 |
| Design and Test Criteria | ANSI/ICEA S-104-596, Telcordia GR-409, CSA FT-4 |
| Temperature Range, Operation | -20 °C to 70 °C (-4 °F to 158 °F) |
| Fiber Count | 1 |
| Outer Jacket Color | Yellow |
| Outer Jacket Material | Flame-retardant |
| Fiber Coloring | White |
| Cable Weight | 8.22 kg/km (5.52 lb/1000 ft) |
