Brand: Corning
|
SKU:
10403267

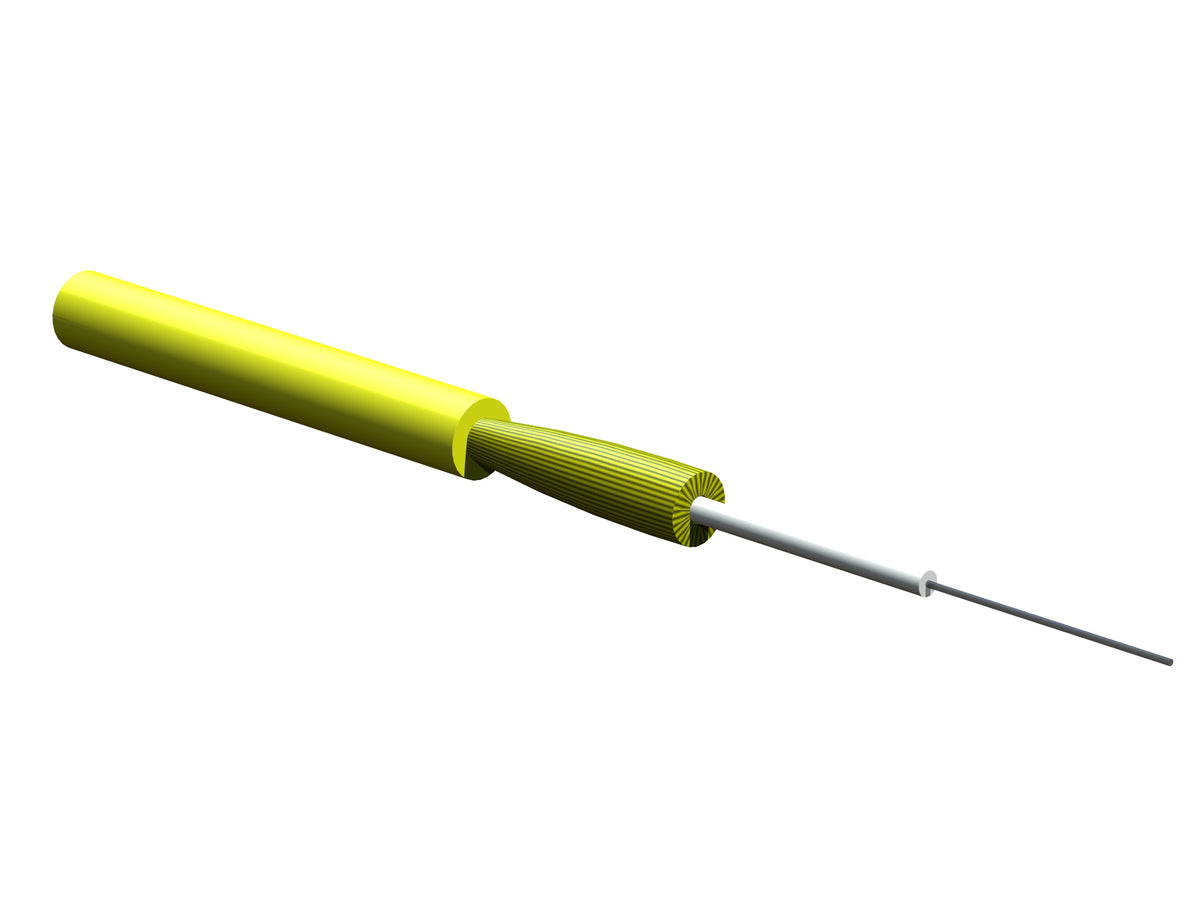

Corning 001U21-31531-B2 | Reel in a Box, ClearCurve Rugged Drop, Indoor, Tight-Buffered Cable 1 F, Single-mode (OS2)
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 001U21-31531-B2 | Reel in a Box, ClearCurve Rugged Drop, In...
Regular price
$1.46
Unit price
Description
Description
Corning 001U21-31531-B2 | Reel in a Box, ClearCurve Rugged Drop, Indoor, Tight-Buffered Cable 1 F, Single-mode (OS2)
Specifications
Specifications
Corning - 001U21-31531-B2 - Product Categories
- Fiber Optic Cables
- Indoor
- Indoor Riser Cables
Corning - 001U21-31531-B2 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 001U21-31531-B2 |
| Item Description | Reel in a Box, ClearCurve Rugged Drop, Indoor, Tight-Buffered Cable 1 F, Single-mode (OS2) |
| General Specifications | - |
| Product Number | 001U21-31531-B2 |
| EAN Code | 4056418146331 |
| Environment | Indoor |
| Cable Type | Drop |
| Product Type | Interconnect |
| Fiber Category | ClearCurve ZBL |
| Flame Rating | Riser (OFNR) |
| Application | General Purpose Horizontal, Vertical Riser |
| Fiber Count | 1 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Environmental Conditions | - |
| Temperature Range, Installation | -10°C to 60°C (14°F to 140°F ) |
| Temperature Range, Operation | -40°C to 70°C (-40°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |

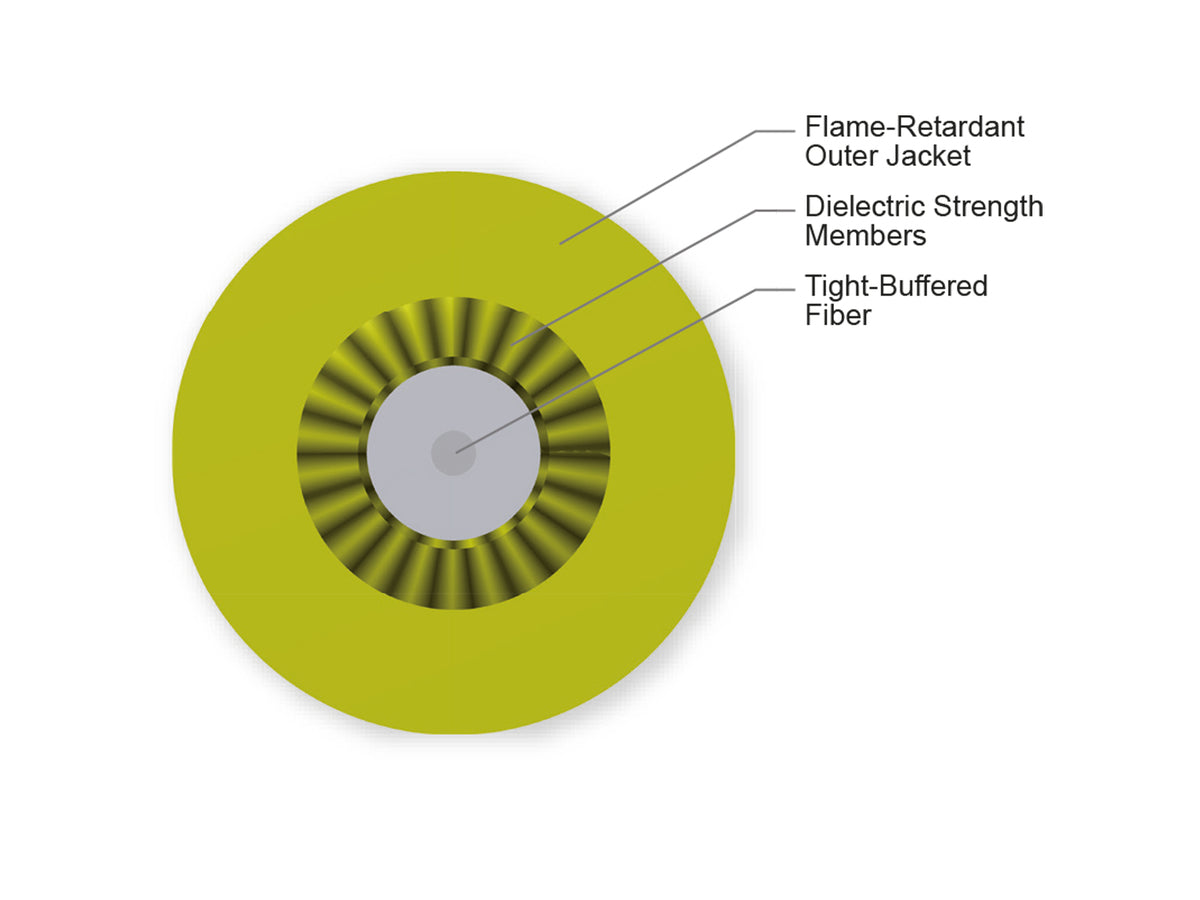

| Cable Design | - |
| Fiber Count | 1 |
| Outer Jacket Color | Yellow |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Fiber Coloring | White |
| Flame Rating | Riser (OFNR) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 66N (14.84lbf) |
| Max. Tensile Strength, Short-Term | 220N (49.46lbf) |
| Min. Bend Radius Installation | 5mm (0.2in) |
| Min. Bend Radius Operation | 5mm (0.2in) |
| Nominal Outer Diameter | 4.8mm (0.19in) |
| Optical Characteristics | - |
| Fiber Code | U |
| Fiber Name | ClearCurve ZBL |
| Fiber Type | Single-mode |
| Performance Option Code | 31 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.657.B3/G.652.D |
| Dimensions | - |
| Cable Weight | 2148kg/km (1443.39lb/1000 ft) |
| Ordering Information | - |
| Packaging Method | Reel in a Box |
