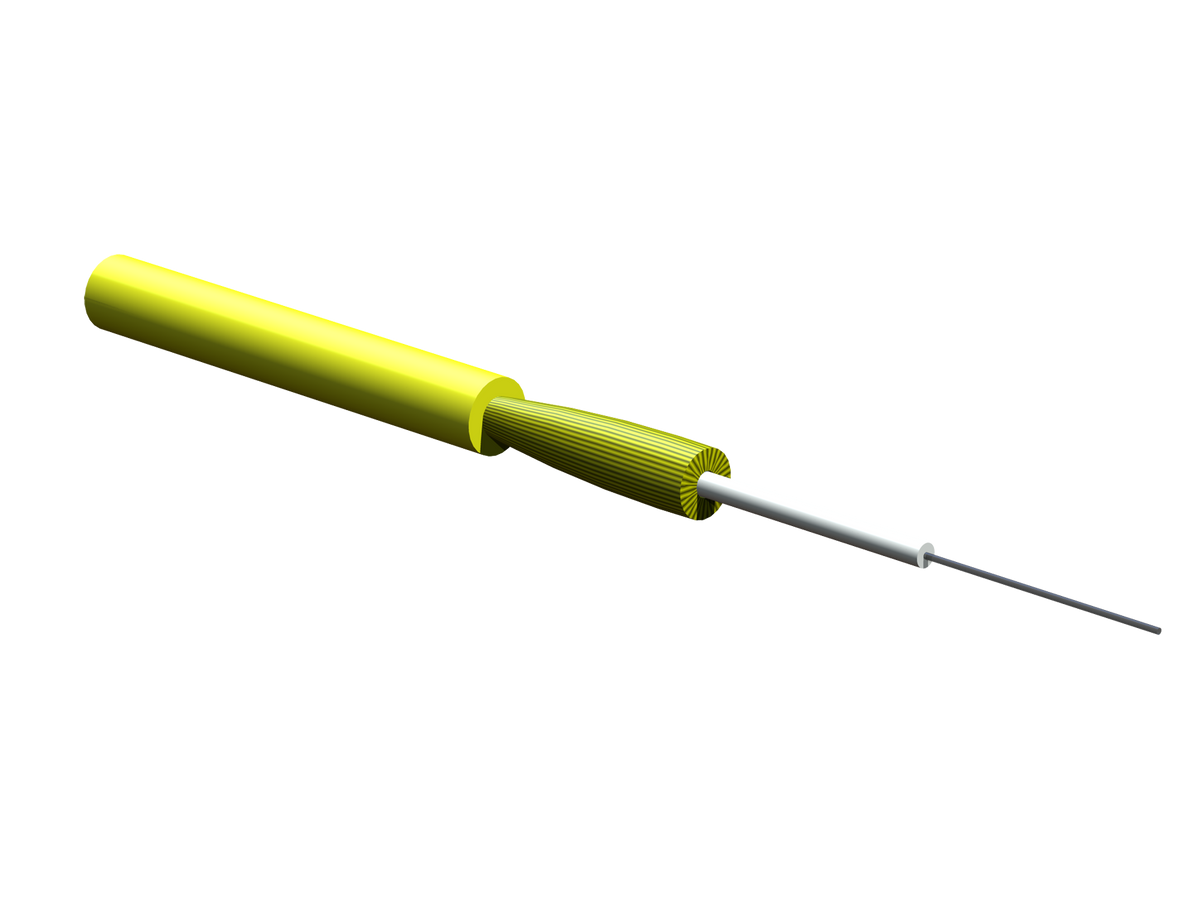

Corning 001U28-31131-29 | ClearCurve Compact Drop, Indoor, Tight-Buffered Cable, Plenum 1 F, Single-mode (OS2)
Corning - 001U28-31131-29 - Features
- Backward compatible with all industry ITU-G.652 single-mode fiber
- Meets industry standards and eliminates installation complexity
- Minimum bend radius of 5 mm
- Ideal for tight-bend deployments
- Plenum-rated (OFNP) cable design
- Indoor plenum, vertical riser and general-purpose horizontal applications
- Convenient contractor-sized packaging
- Easy field deployment
- Higher bandwidth-carrying capacity, smaller outer diameter, lighter weight, smaller minimum bend-radius
- Outperforms typical CAT 5e or CAT 6 cable for MDU applications
Specifications
Specifications
Corning - 001U28-31131-29 - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Indoor Fiber Optic Cable
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 001U28-31131-29 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 001U28-31131-29 |
| Environment | Indoor |
| Cable Type | Drop |
| Product Type | Interconnect |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Plenum (OFNP) |
| Application | General Purpose Horizontal, Plenum, Vertical Riser |
| Fiber Count | 1 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNP, FT-6 |
| Design and Test Criteria | ANSI/ICEA S-104-596, Telcordia GR-409, CSA FT-6 |
| Environmental Conditions | - |
| Temperature Range, Installation | -10 °C to 60 °C (14 °F to 140 °F ) |
| Temperature Range, Operation | -20 °C to 70 °C (-4 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Cable Design | - |
| Fiber Count | 1 |
| Outer Jacket Color | Yellow |
| Outer Jacket Material | Flame-retardant |
| Fiber Coloring | White |
| Flame Rating | Plenum (OFNP) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 66 N (14.84 lbf) |
| Max. Tensile Strength, Short-Term | 220 N (49.46 lbf) |
| Min. Bend Radius Installation | 5 mm (0.2 in) |
| Min. Bend Radius Operation | 5 mm (0.2 in) |
| Nominal Outer Diameter | 2.9 mm (0.11 in ) |
| Optical Characteristics | - |
| Fiber Code | U |
| Fiber Name | ClearCurve ZBL |
| Fiber Type | Single-mode |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.657.B3/G.652.D |
| Ordering Information | - |
| Weight | 943 kg/km (633.67 lb/1000 ft) |
| Armored | NO |
| Cable Type | TIGHT BUFFERED |
| Fiber Count | 1 |
| Fiber Type | OS2 SINGLE-MODE |
| Fire Rating | PLENUM |
| UNSPSC Code | 26121607 |
