Corning 001UB4-14101-F9 | SST-Drop Indoor/Outdoor, Gel-Free Cable, ...
Description
Description

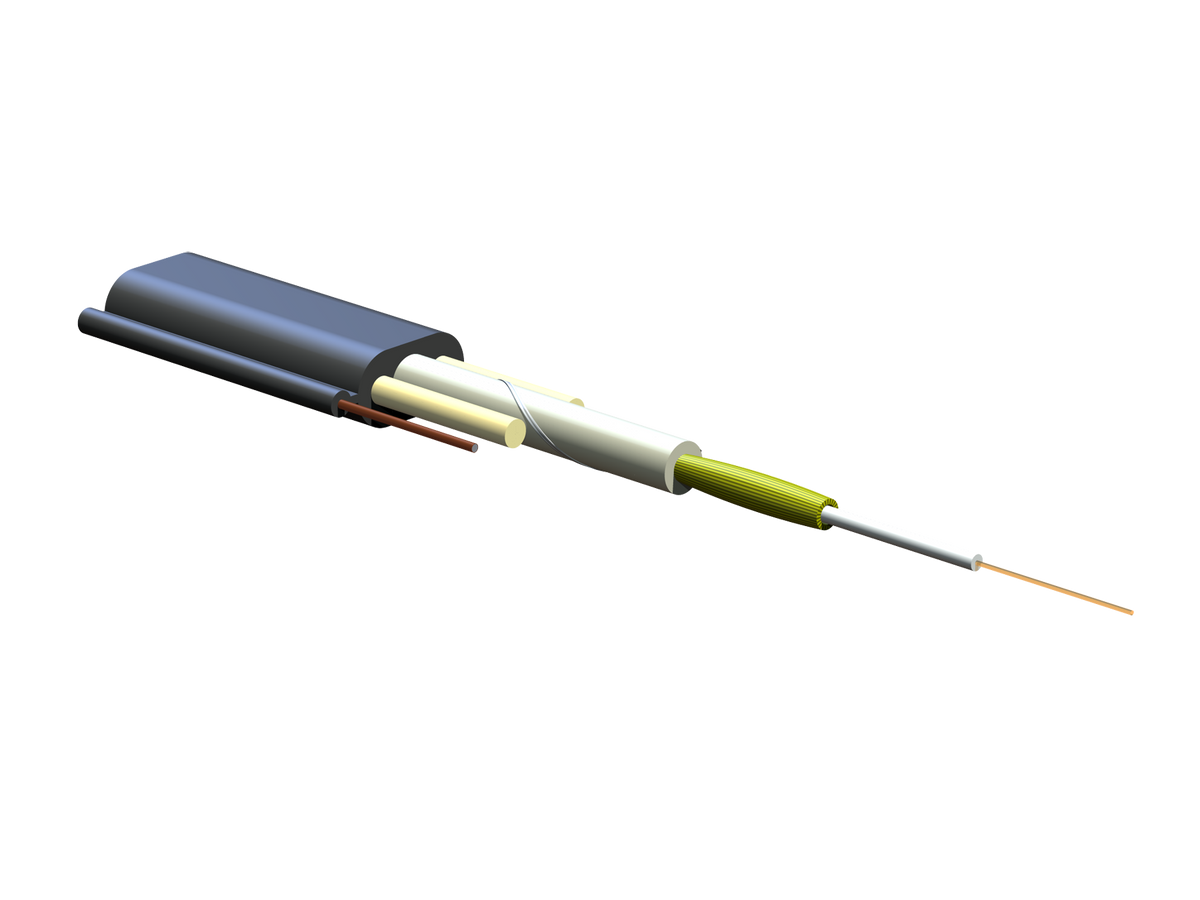

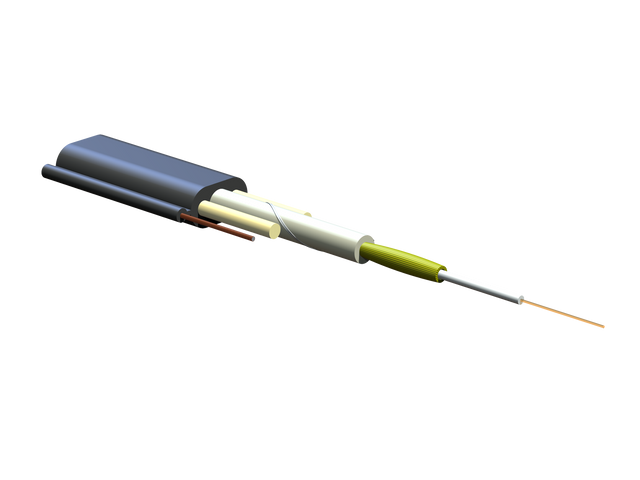

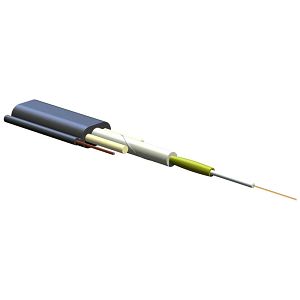

Corning SST-Drop indoor/outdoor dielectric cables provide the simple installation offered by standard SST-Drop cables designed for rugged outdoor environments and compact drop cables designed for challenging indoor bend environments. The design features a gel-free, fully waterblocked, UV-resistant 2.9 mm riser-rated (OFNR) drop cable centered inside a traditional SST-Drop dielectric cable. Designed to meet industry-standard requirements for outdoor and indoor drop cables, the product eliminates the need for termination to transition from the outdoor environment to an indoor ONT. This dielectric version eliminates any bonding and grounding requirements and is suitable for aerial, direct buried and duct installation. A toneable version is also available.
Corning - 001UB4-14101-F9 - Features
- 2.9 mm subunit in a rugged outdoor cable
- Eliminates need for termination transition in indoor ONT
- Crush resistance
- Fiber protection and signal integrity
- UV-resistant, flame-retardant inner jacket
- Rugged, durable and easy to strip
- Dielectric
- Eliminates bonding and grounding requirements
- Small subunit diameter and bend-radius
- Easy installation in space-constrained areas
- 2.9 mm subunit in a rugged outdoor cable
- Eliminates need for termination transition in indoor ONT Crush resistance
- Fiber protection and signal integrity UV-resistant, flame-retardant inner jacket
- Rugged, durable and easy to strip Dielectric
- Eliminatebonding and grounding requirements Small subunit diameter and bend-radius
- Easy installation in space-constrained areas
Specifications
Specifications
Corning - 001UB4-14101-F9 - Product Categories
- Shop by Manufacturer/Corning
- Hardware
- Tools and Supplies
- Miscellaneous
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Riser Cables
Corning - 001UB4-14101-F9 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 001UB4-14101-F9 |
| EAN Code | 4056418148137 |
| Environment | Indoor/Outdoor |
| Cable Type | Drop |
| Product Type | Self-Supporting |
| Fiber Category | ClearCurve ZBL |
| Application | Self-Supporting, Aerial, Duct, Direct Buried |
| Fiber Count | 1 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | Compact Drop listed to National Electrical Code (NEC) OFNR, FT-4 |
| Design and Test Criteria | ANSI/ICEA S-110-717, Telcordia GR-20-CORE, Telcordia GR-409-CORE |
| Environmental Conditions | - |
| Temperature Range, Installation | -30 °C to 70 °C (-22 °F to 158 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

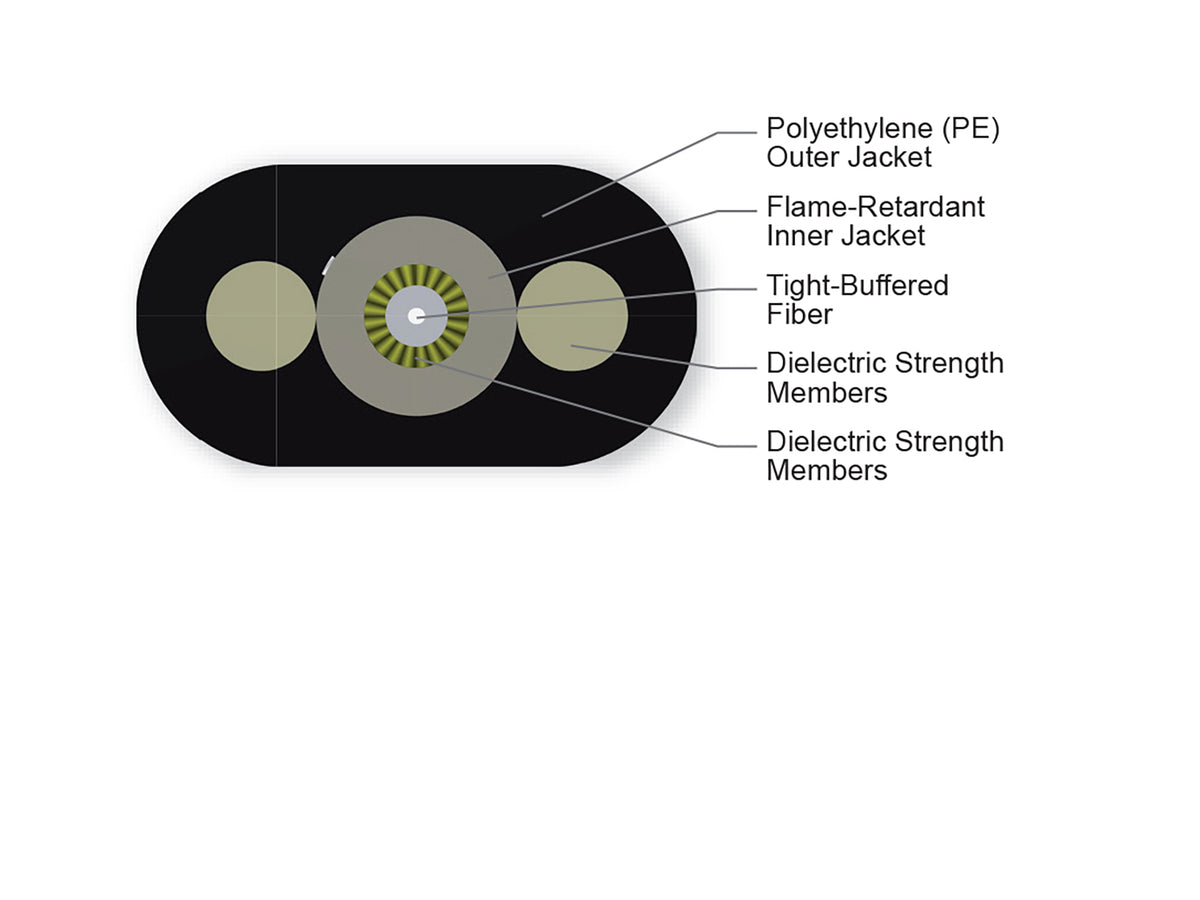

| Cable Design | - |
| Fiber Count | 1 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tensile Strength Elements and/or Armoring - Layer 2 | Dielectric strength members |
| Inner Jacket Material | Flame-retardant |
| Subunit Color | Natural |
| Subunit Diameter | 2.9 mm (0.11 in) |
| Tight Buffer Color | White |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 400 N (89.92 lbf) |
| Max. Tensile Strength, Short-Term | 1350 N (303.49 lbf) |
| Min. Bend Radius Operation | 80 mm (3.15 in) |
| Nominal Outer Diameter | 8.1 mm x 4.5 mm (0.32 in x 0.18 in ) |
| Optical Characteristics | - |
| Fiber Code | U |
| Fiber Name | ClearCurve ZBL |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Typical Attenuation | 0.36 / 0.36 / 0.20 |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.657.B3/G.652.D |
| Ordering Information | - |
| Weight | 32 kg/km (21.5 lb/1000 ft) |
| Convenient Contractor-sized Packaging Length | 609.6 m (2000 ft) gross weight 72 lbs., no specialized equipment needed |
| Country of Origin | US - United States |
| UNSPSC | 26121607 |
