Corning 001ZB4-14701DF9 | ROC Drop Dielectric Cable with FastAccess...
Regular price
$1.46
Unit price
Brand: Corning
|
SKU:
10012234
Regular price
$1.46
Unit price
Description
Description

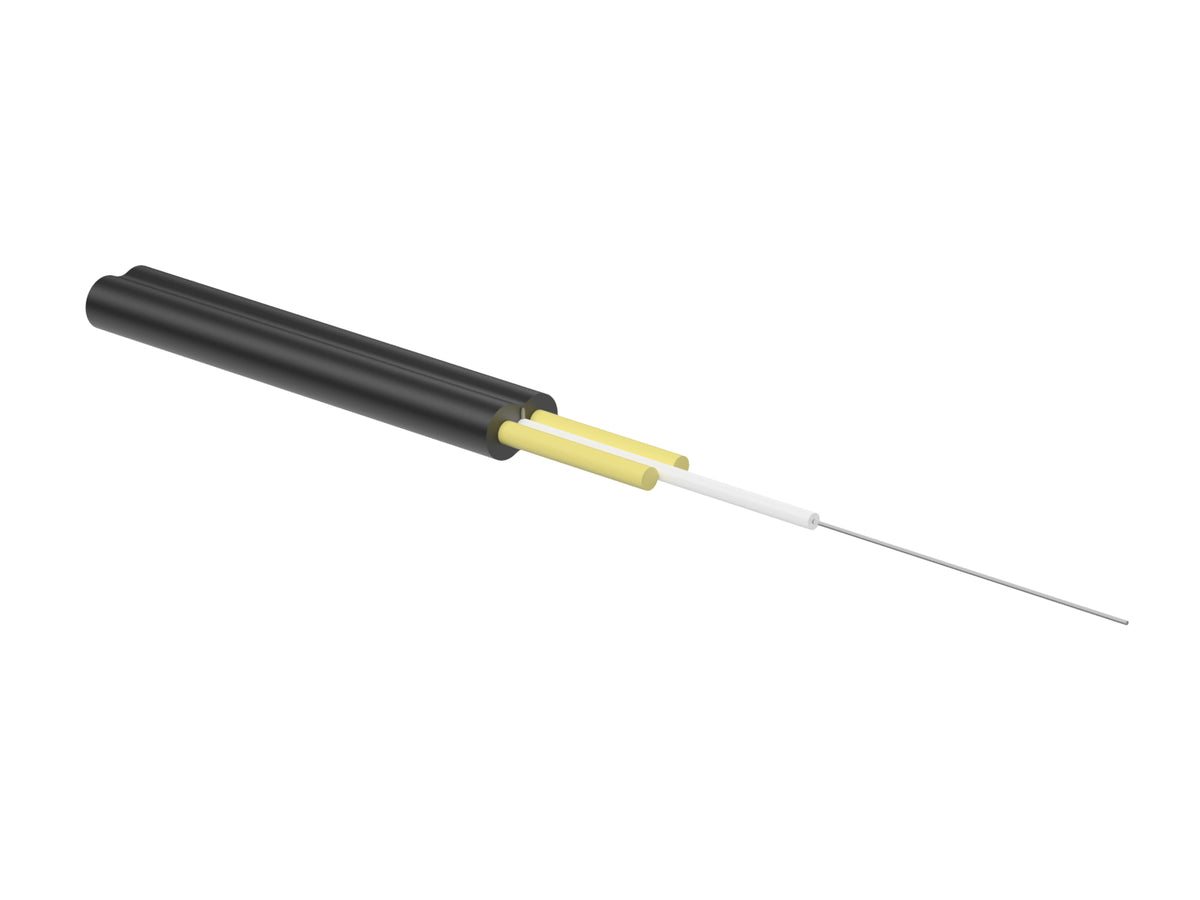

Corning 001ZB4-14701DF9 | ROC Drop Dielectric Cable with FastAccess Technology 1 F, SMF-28 Ultra fiber, Single-mode (OS2)
Corning - 001ZB4-14701DF9 - Features
- FastAccess technology
- Saves time and reduces complexity
- No special tools
- Ease of use
- Backwards compatible
- Enables fast connectorization and splicing
- Innovative cable design
- Retains industry standard hardware compatibility such as wedge clamps
- Dielectric
- Eliminates bonding and grounding requirements
- Backward compatible with all industry ITU-G.652 single-mode fiber
- Meets industry standards and eliminates installation complexity
Specifications
Specifications
Corning - 001ZB4-14701DF9 - Product Categories
- Shop by Manufacturer/Corning
- Wire & Cable
- Voice and Data Cable
- Indoor | Outdoor Fiber Optic Cable
- Fiber Optic Cables
- Outdoor
- Outdoor Aerial Cables
Corning - 001ZB4-14701DF9 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 001ZB4-14701DF9 |
| Environment | Outdoor |
| Cable Type | Drop |
| Product Type | Self-Supporting |
| Fiber Category | Single-mode (OS2) |
| Application | Self-Supporting |
| Fiber Count | 1 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | Meets Telcordia GR-20 requirements |
| Environmental Conditions | - |
| Temperature Range, Installation | -30 °C to 70 °C (-22 °F to 158 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

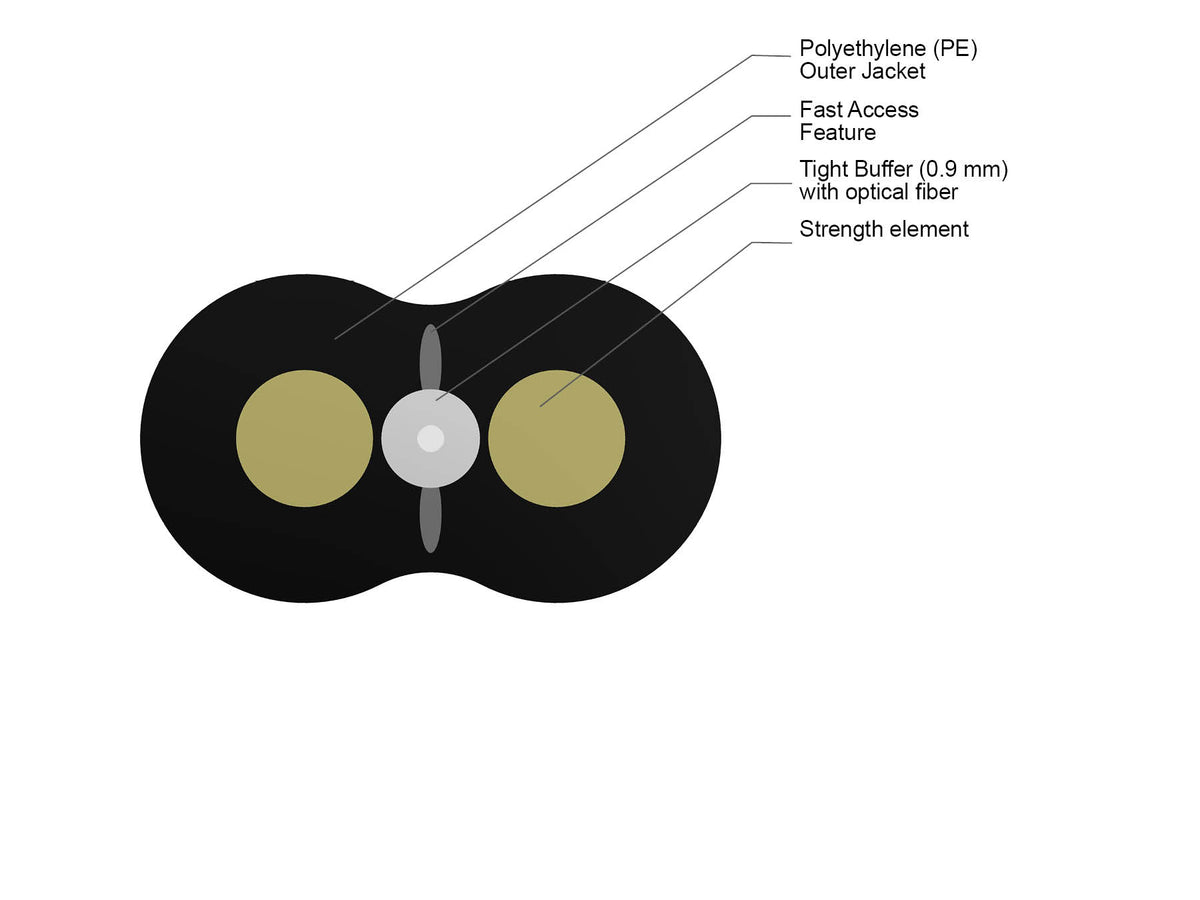

| Cable Design | - |
| Fiber Count | 1 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Buffer Tube Color | White |
| Fiber Coloring | White |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 400 N (89.92 lbf) |
| Min. Bend Radius Operation | 63 mm (2.48 in) |
| Nominal Outer Diameter | 5.4 mm x 3 mm (0.21 in x 0.12 in ) |
| Optical Characteristics | - |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | ITU-T G.657.A1 |
| Ordering Information | - |
| Weight | 152 kg/km (102.14 lb/1000 ft) |
| All-Dielectric | YES |
| Armored | NO |
| Cable Type | TIGHT BUFFERED |
| Fiber Count | 1 |
| Fiber Type | OS2 SINGLE-MODE |
| Fire Rating | GENERAL PURPOSE |
| Rodent Protected | NO |
| UNSPSC Code | 26121607 |
