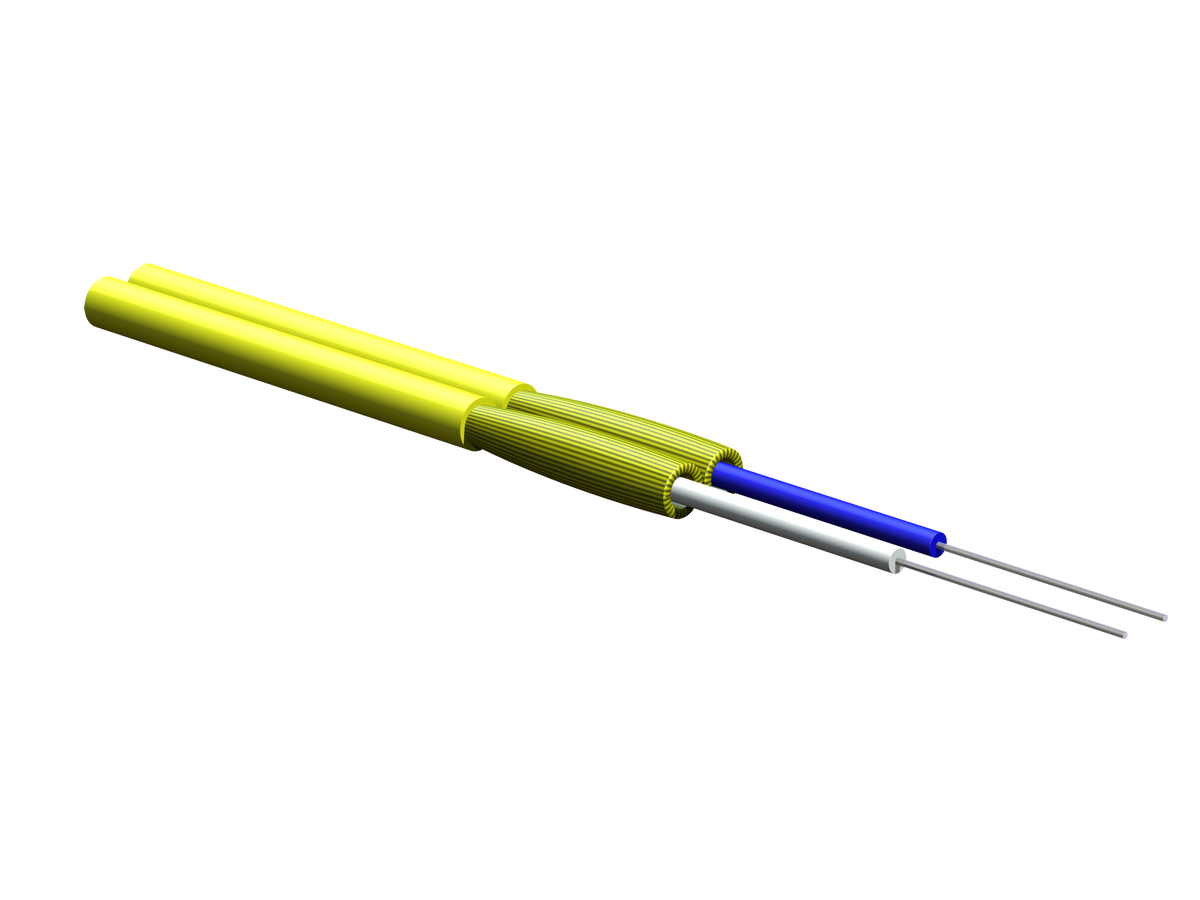

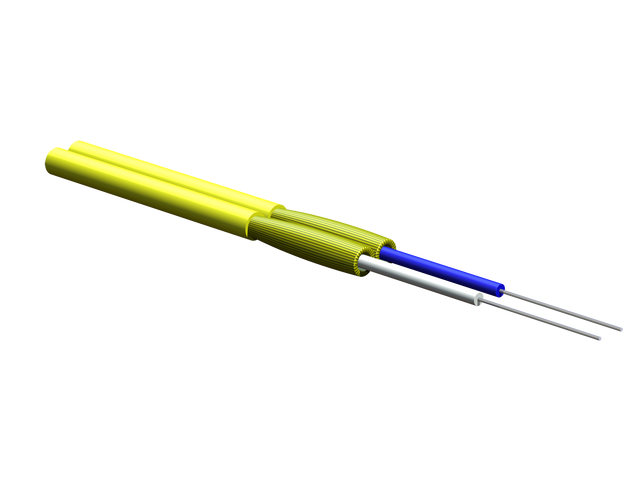

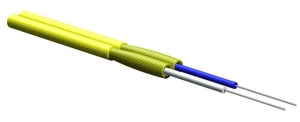

Corning 002E58-31331-24 | Zipcord Tight-Buffered Cable, Plenum
Regular price
$1.46
Unit price
Brand: Corning
|
SKU:
370148SMODE2MM2MF
Regular price
$1.46
Unit price
Description
Description
Corning 002E58-31331-24 | Zipcord Tight-Buffered Cable, Plenum 2 F, 2.0 mm diameter, Single-mode (OS2)
Corning - 002E58-31331-24 - Features
- All-dielectric strength member
- Mechanical durability
Specifications
Specifications
Corning - 002E58-31331-24 - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Indoor Fiber Optic Cable
- Data Communications and Networking
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 002E58-31331-24 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 002E58-31331-24 |
| EAN Code | 4056418191546 |
| Environment | Indoor |
| Cable Type | Tight-Buffered |
| Product Type | Interconnect |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Plenum (OFNP) |
| Application | General Purpose Horizontal, Plenum, Vertical Riser |
| Fiber Count | 2 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Flame Test Method | NFPA 262 and CSA FT-6 (for plenum, riser and general building applications), ICEA S-83-596 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 60 °C (32 °F to 140 °F ) |
| Temperature Range, Operation | 0 °C to 70 °C (32 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Cable Design | - |
| Fiber Count | 2 |
| Outer Jacket Color | Yellow |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Number of Subunits | 2 |
| Tight Buffer Color | Blue, White |
| Flame Rating | Plenum (OFNP) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Short-Term | 220 N (49.46 lbf) |
| Min. Bend Radius Installation | 50 mm (1.97 in) |
| Min. Bend Radius Operation | 10 mm (0.39 in) |
| Max. Tensile Strength, Long-Term | 100 N (22.48 lbf) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | SMF-28e+ fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 31 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.4 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 74 kg/km (49.73 lb/1000 ft) |
| Outside Diameter | 0.08 x 0.16 in. (2 x 4mm) |
| Type | Interconnect Cable |
| Application | Indoor |
| Cable Type | Tight Buffered |
| Transmission Mode | Singlemode |
| Fiber Type | OS2 |
| Jacket Flame Rating | OFNP FT6 |
| Jacket Material | Flame Retardant |
| Jacket Color | Yellow |
| Fiber Count | 2 |

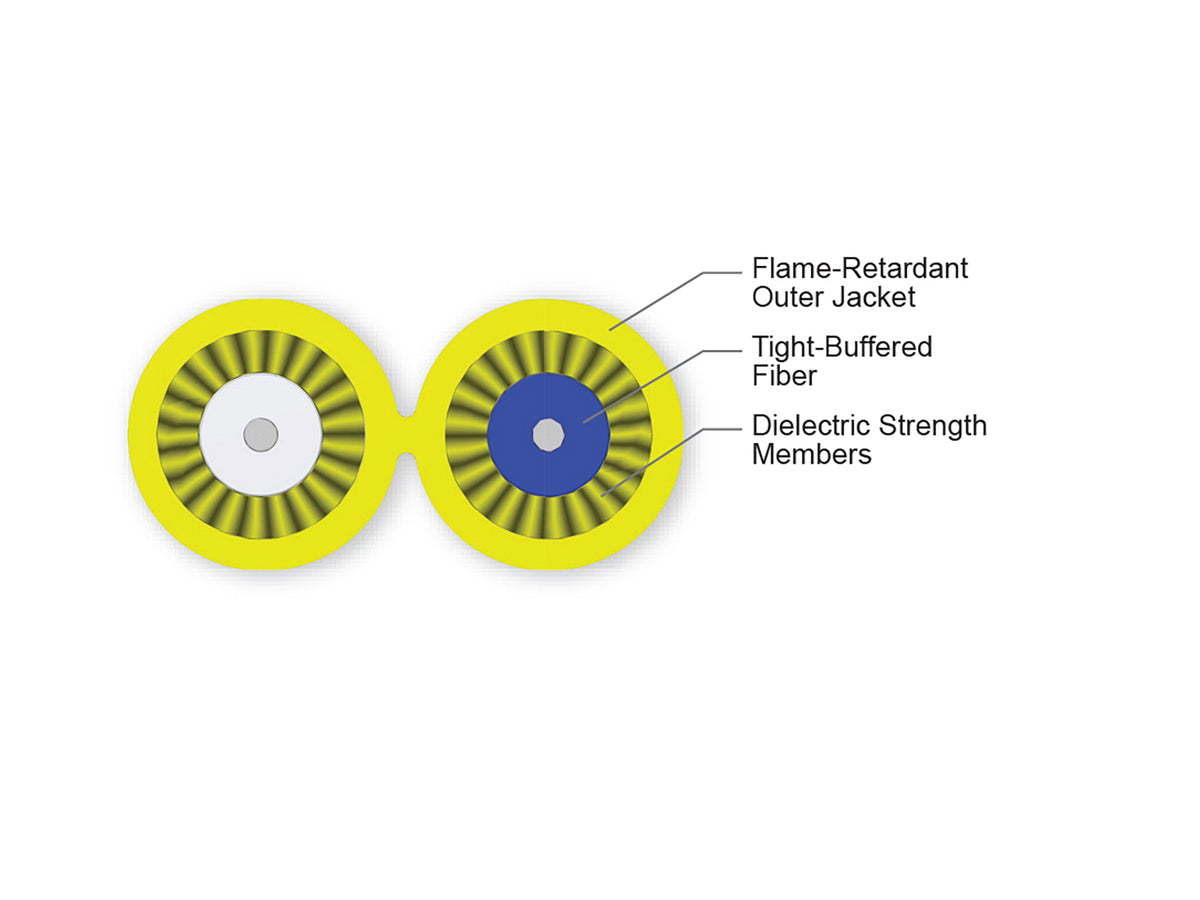

| Construction | Tight Buffer, 900 um Zipcord |
