Brand: Corning
|
SKU:
370-COROS2-ZIP-BX-02
Corning 002E58-31331-B2 | Reel In A Box, Zipcord Tight-Buffered Cable, Plenum
Regular price
$1.46
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 002E58-31331-B2 | Reel In A Box, Zipcord Tight-Buffered Cab...
Regular price
$1.46
Unit price
Brand: Corning
|
SKU:
370-COROS2-ZIP-BX-02
Regular price
$1.46
Unit price
Description
Description

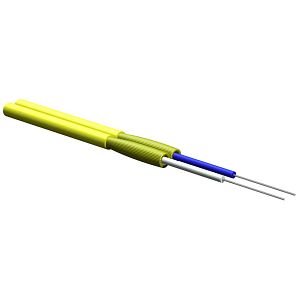

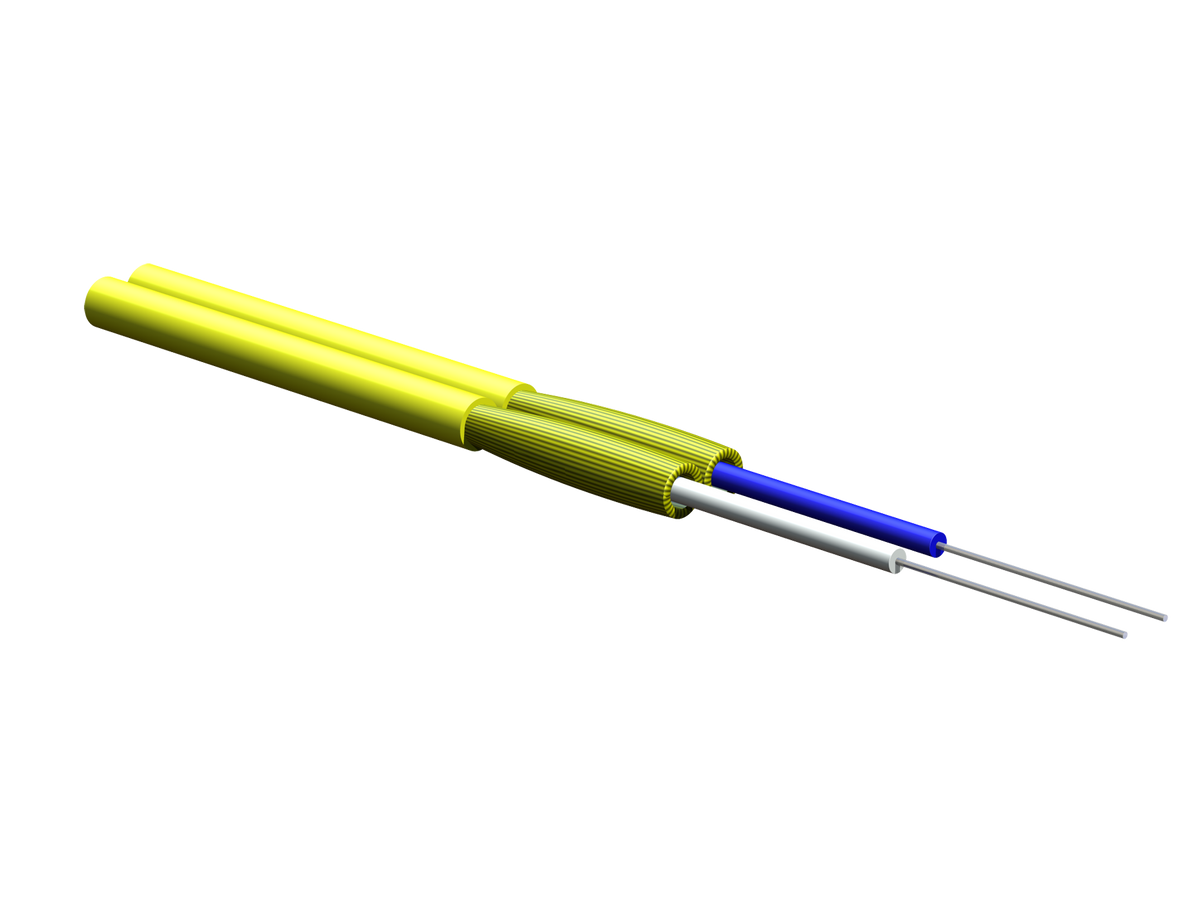

Corning 002E58-31331-B2 | Reel In A Box, Zipcord Tight-Buffered Cable, Plenum 2 F, Single-mode (OS2)
Corning - 002E58-31331-B2 - Features
- {print indicates available cable remaining on the reel providing easier inventory management{Stackable boxes make storage more manageable{Smaller reel offerings mean smaller cable lengths than would normally be available{Cable cutting at Corning lowers operating expenses for our distributors and end users{
Specifications
Specifications
Corning - 002E58-31331-B2 - Product Categories
- Shop by Manufacturer/Corning
- Wire & Cable
- Voice and Data Cable
- Indoor | Outdoor Fiber Optic Cable
- DataComm
- Communications Cable
- Fiber Optic Cable
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 002E58-31331-B2 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 002E58-31331-B2 |
| EAN Code | 4056418154312 |
| Environment | Indoor |
| Cable Type | Tight-Buffered |
| Product Type | Interconnect |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Plenum (OFNP) |
| Application | General Purpose Horizontal, Plenum, Vertical Riser |
| Fiber Count | 2 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNP, CSA FT-6, ICEA S-83-596 |
| Environmental Conditions | - |
| Temperature Range, Operation | 0 °C to 70 °C (32 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

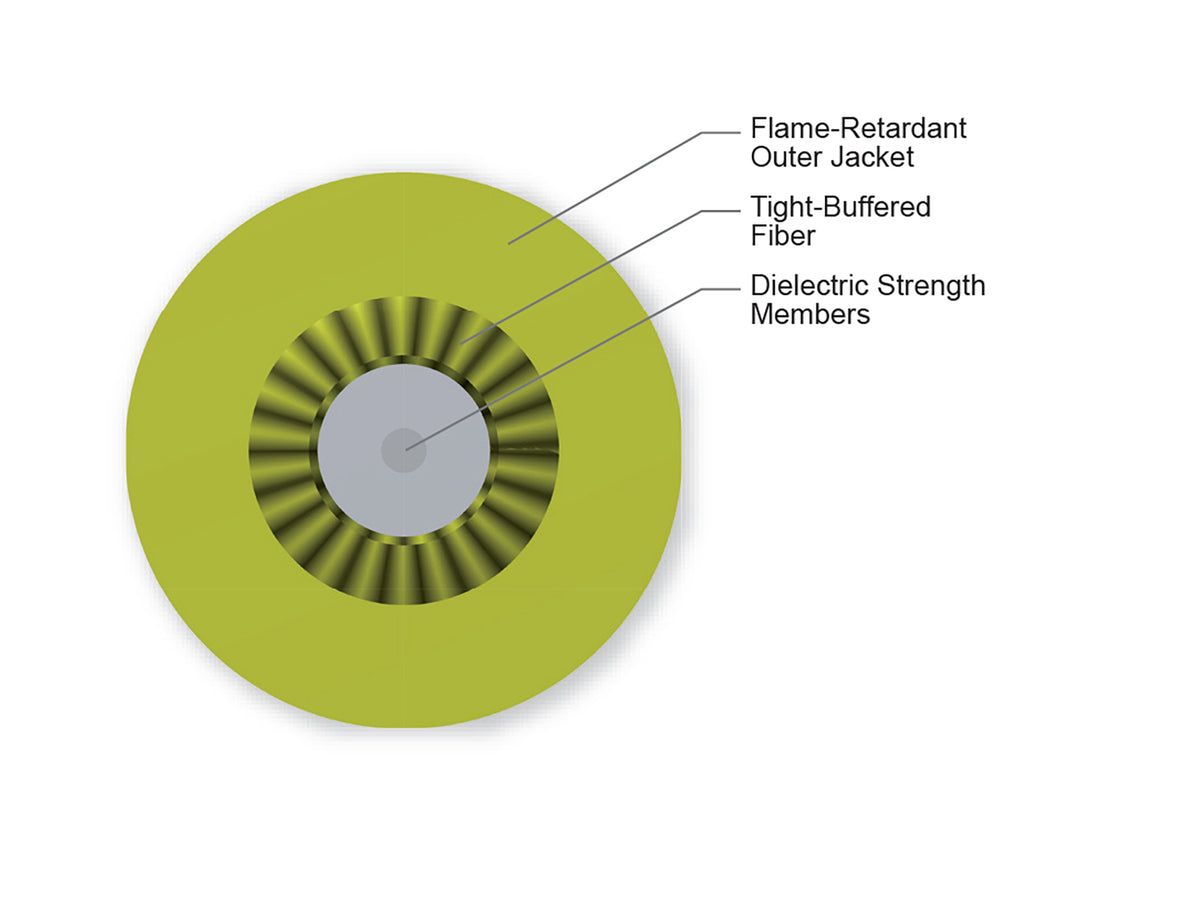

| Cable Design | - |
| Fiber Count | 2 |
| Outer Jacket Color | Yellow |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Number of Subunits | 2 |
| Tight Buffer Color | Blue, White |
| Flame Rating | Plenum (OFNP) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Short-Term | 220 N (49.46 lbf) |
| Min. Bend Radius Installation | 50 mm (1.97 in) |
| Min. Bend Radius Operation | 10 mm (0.39 in) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | SMF-28e+ fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 31 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.4 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 74 kg/km (49.73 lb/1000 ft) |
| Packaging Method | Reel in a Box |
