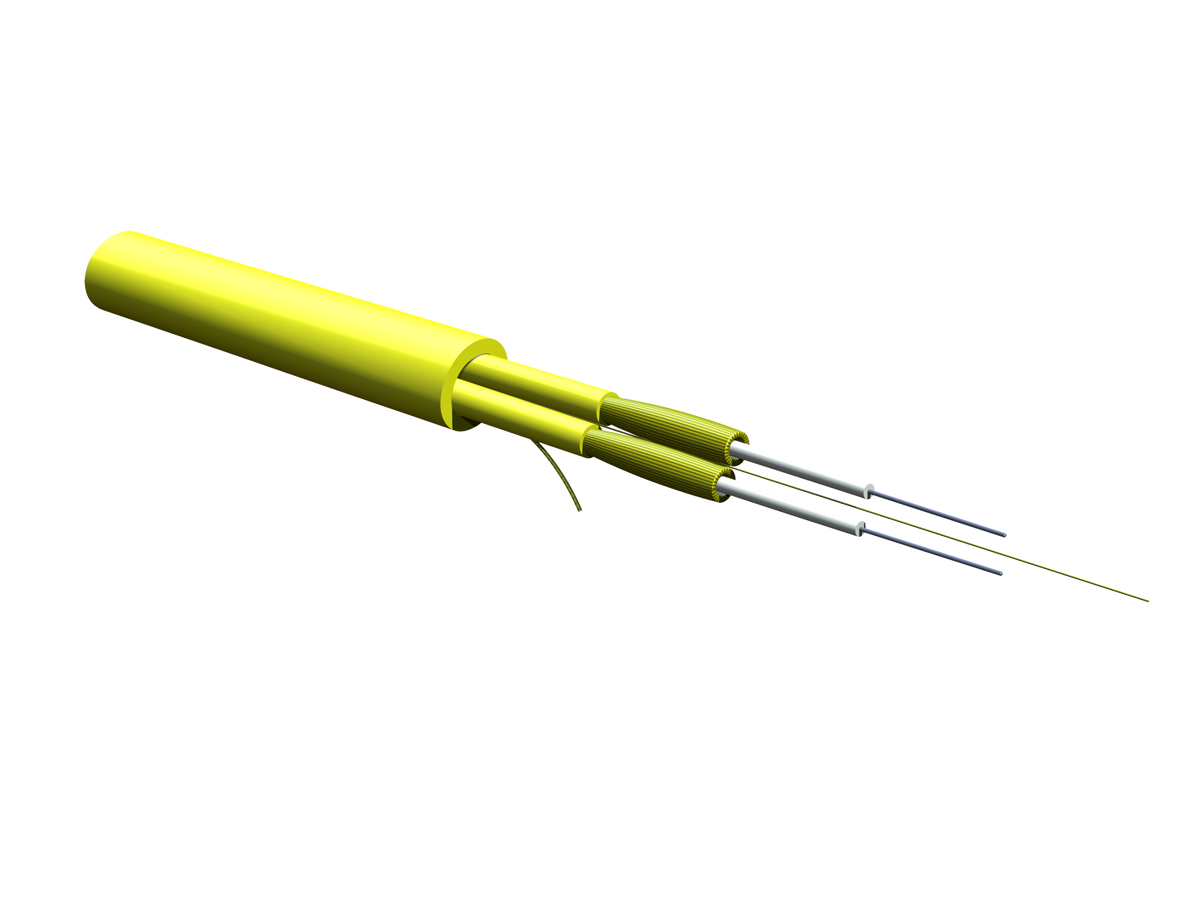

Corning 002E61-31331-24 | Fan-Out Tight-Buffered Cable, Riser
Regular price
$1.46
Unit price
Brand: Corning
|
SKU:
371-COROS2-TBDO2-02
Regular price
$1.46
Unit price
Description
Description

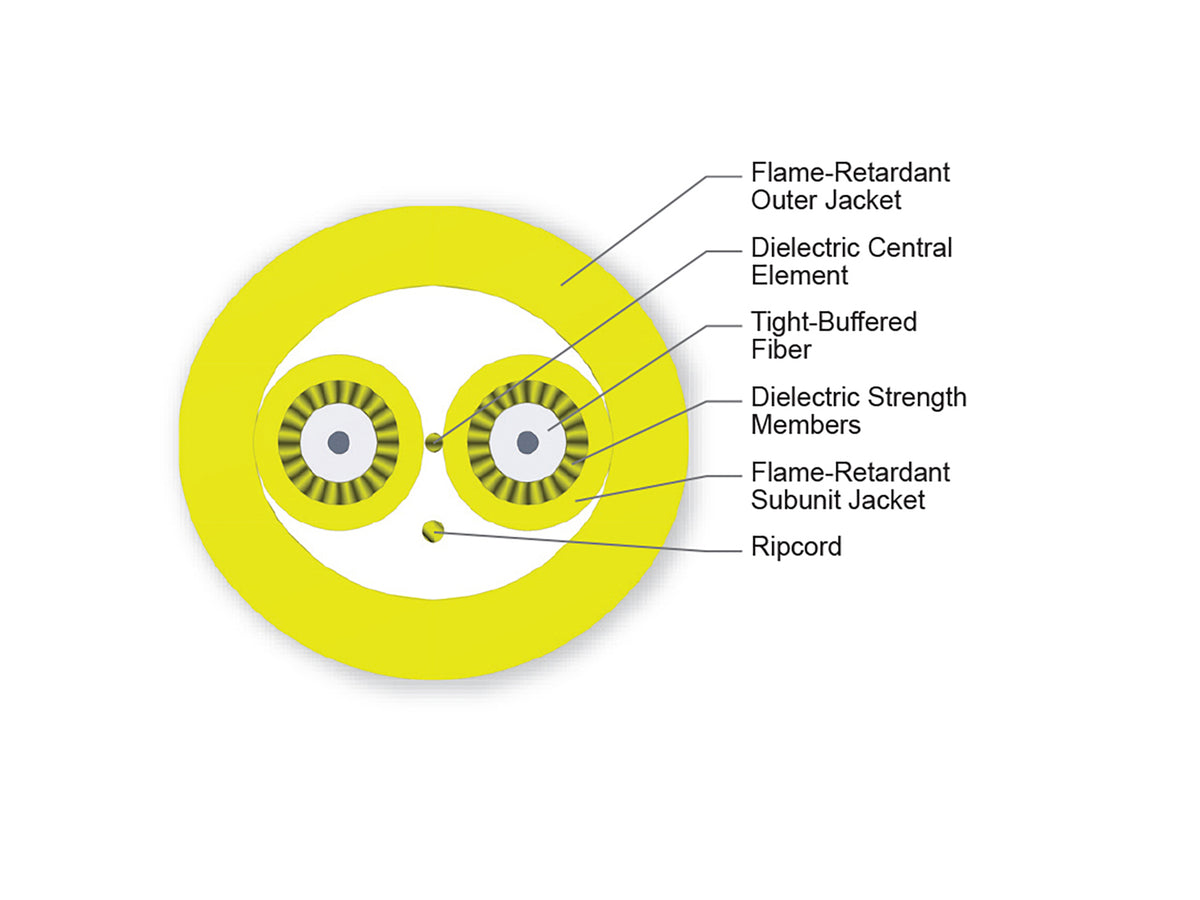

Corning 002E61-31331-24 | Fan-Out Tight-Buffered Cable, Riser 2 F, 2.0 mm Subunits, Single-mode (OS2)
Corning - 002E61-31331-24 - Features
- 900 µm buffered fibers
- Easy, consistent stripping
- Flame-retardant jacket
- Rugged and durable
- All-dielectric construction
- Requires no grounding or bonding
Specifications
Specifications
Corning - 002E61-31331-24 - Product Categories
- Shop by Manufacturer/Corning
- Fiber Optic Cables
- Indoor
- Indoor Riser Cables
Corning - 002E61-31331-24 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 002E61-31331-24 |
| EAN Code | 4056418191522 |
| Environment | Indoor |
| Cable Type | Tight-Buffered |
| Product Type | Distribution |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Riser (OFNR) |
| Application | General Purpose Horizontal, Vertical Riser |
| Fiber Count | 2 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNR, CSA FT-4, ICEA S-83-596 |
| Flame Test Method | UL-1666 (for riser and general building applications) |
| Environmental Conditions | - |
| Temperature Range, Installation | -10 °C to 60 °C (14 °F to 140 °F ) |
| Temperature Range, Operation | -20 °C to 70 °C (-4 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Cable Design | - |
| Central Element | Yarn |
| Fiber Count | 2 |
| Number of Ripcords | 1 |
| Outer Jacket Color | Yellow |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tensile Strength Elements and/or Armoring - Layer 2 | Dielectric strength members |
| Number of Subunits | 2 |
| Subunit Color | Yellow |
| Subunit Diameter | 2 mm (0.08 in) |
| Subunit Jacket Material | Flame-retardant |
| Tight Buffer Color | White |
| Flame Rating | Riser (OFNR) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Short-Term | 660 N (148.37 lbf) |
| Min. Bend Radius Installation | 89 mm (3.5 in) |
| Min. Bend Radius Operation | 59 mm (2.32 in) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | SMF-28e+ fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 31 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.4 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 28 kg/km (18.82 lb/1000 ft) |
