Brand: Corning
|
SKU:
373-COR8.3-TBRA-02

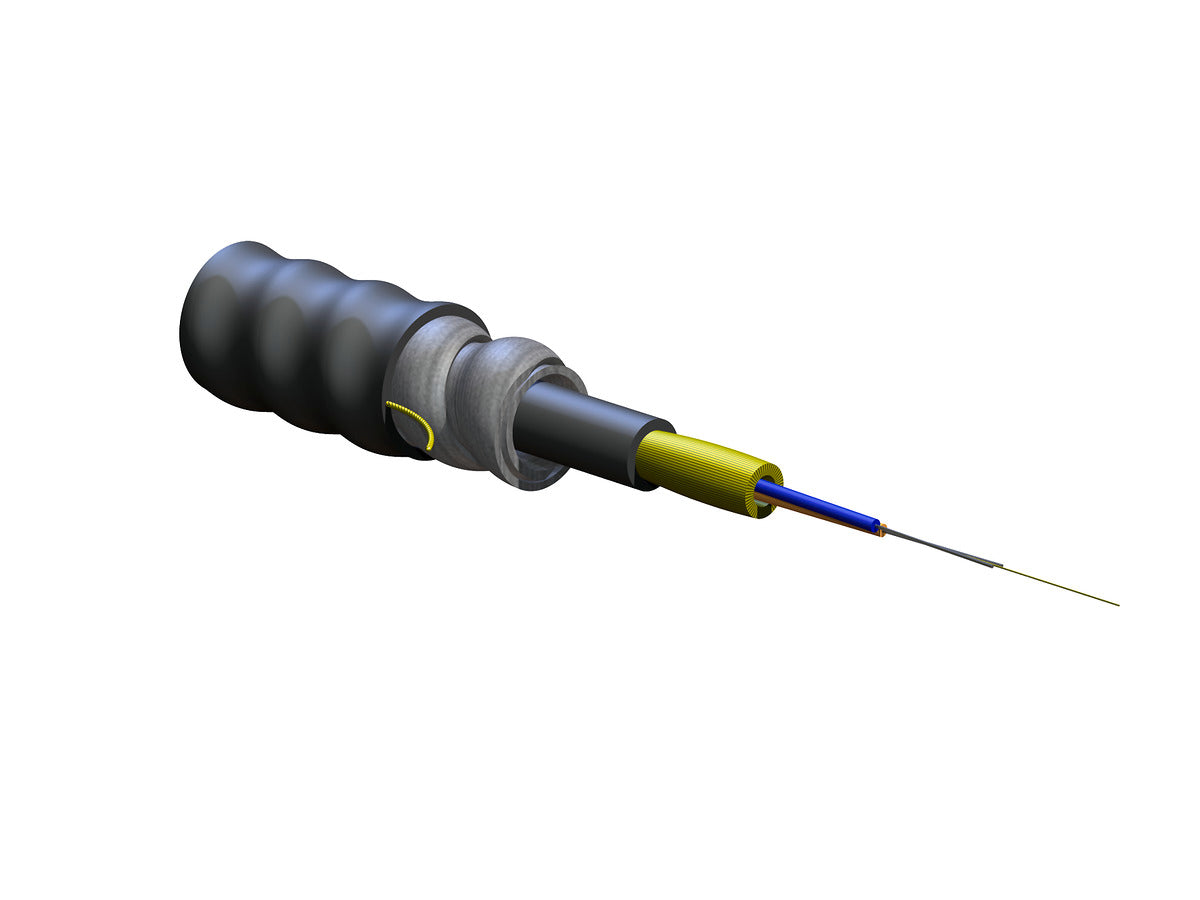

Corning 002E8F-31131-A1 | Tight-Buffered Interlocking Armored Cable Riser 2F Single-Mode OS2
Regular price
$2.52
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 002E8F-31131-A1 | Tight-Buffered Interlocking Armored Cable...
Regular price
$2.52
Unit price
Brand: Corning
|
SKU:
373-COR8.3-TBRA-02
Regular price
$2.52
Unit price
Description
Description
Corning 002E8F-31131-A1 | Tight-Buffered Interlocking Armored Cable Riser 2F Single-Mode OS2
Corning - 002E8F-31131-A1 - Features
- Waterblocking technology
- OSP (outdoor) applications
- Flexible, interlocking armor design
- Seven times crush protection compared to non-armored cables
- UV-resistant, flame-retardant jacket
- Rugged, durable and easy to strip
Specifications
Specifications
Corning - 002E8F-31131-A1 - Specifications
| Max. Tensile Strength, Long-Term | 200 N (44.96 lbf) |
|---|---|
| Max. Tensile Strength, Short-Term | 675 N (151.75 lbf) |
| Min. Bend Radius Installation | 169.5 mm (6.67 in) |
| Min. Bend Radius Operation | 113 mm (4.45 in) |
| Nominal Inner Cable Diameter | 5.2 mm (0.2 in) |
| Nominal Outer Diameter | 11.3 mm (0.44 in) |
| Fiber Code | E |
| Performance Option Code | 31 |
| Fiber Category | OS2 |
| Fiber Type | Single-mode (OS2) / 250 µm |
| Fiber Name | Single-mode (OS2) |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.4 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Compliance | ITU-T G.652.D |
| Cable Weight | 98 kg/km (65.85 lb/1000 ft) |
