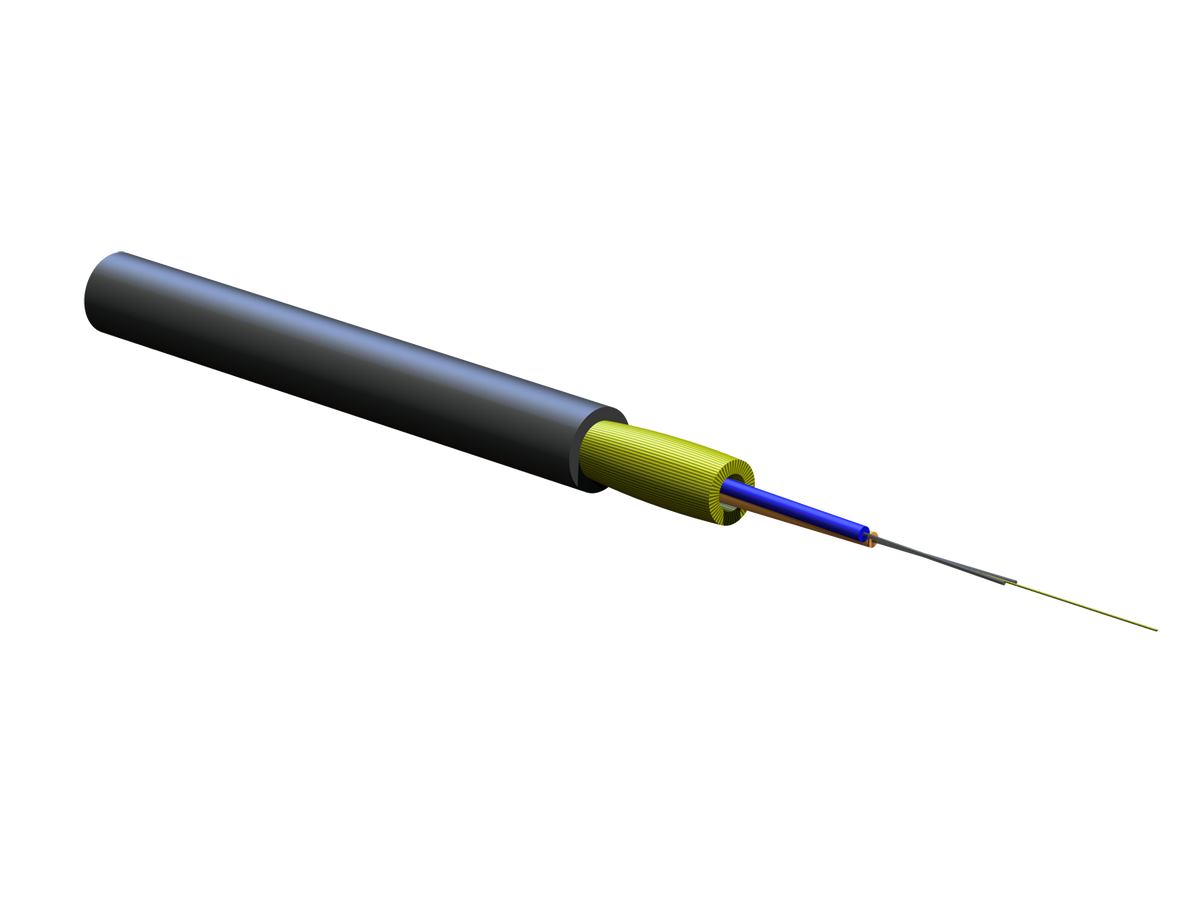

Corning 002E8P-31131-29 | FREEDM One Tight-Buffered Cable, Plenum
Regular price
$1.35
Unit price
Brand: Corning
|
SKU:
373-COR8.3-TBD-02
Regular price
$1.35
Unit price
Description
Description
Corning 002E8P-31131-29 | FREEDM One Tight-Buffered Cable, Plenum 2 F, Single-mode (OS2)
Corning - 002E8P-31131-29 - Features
- Waterblocking technology
- OSP (outdoor) applications
- Small diameter and bend radius
- Easy installation in space-constrained areas
- Color-coded fibers
- Quick and easy identification
- All-dielectric construction
- Requires no grounding or bonding
- UV-resistant, flame-retardant jacket
- Rugged, durable and easy to strip
Specifications
Specifications
Corning - 002E8P-31131-29 - Product Categories
- Shop by Manufacturer/Corning
- Wire & Cable
- Voice and Data Cable
- Indoor | Outdoor Fiber Optic Cable
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Plenum Cables
Corning - 002E8P-31131-29 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 002E8P-31131-29 |
| EAN Code | 4056418165271 |
| Environment | Indoor/Outdoor |
| Cable Type | Tight-Buffered |
| Product Type | Dielectric |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Plenum (OFNP) |
| Application | Aerial, Duct, General Purpose Horizontal, Vertical Riser, Plenum |
| Fiber Count | 2 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNP, FT-6 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 60 °C (32 °F to 140 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

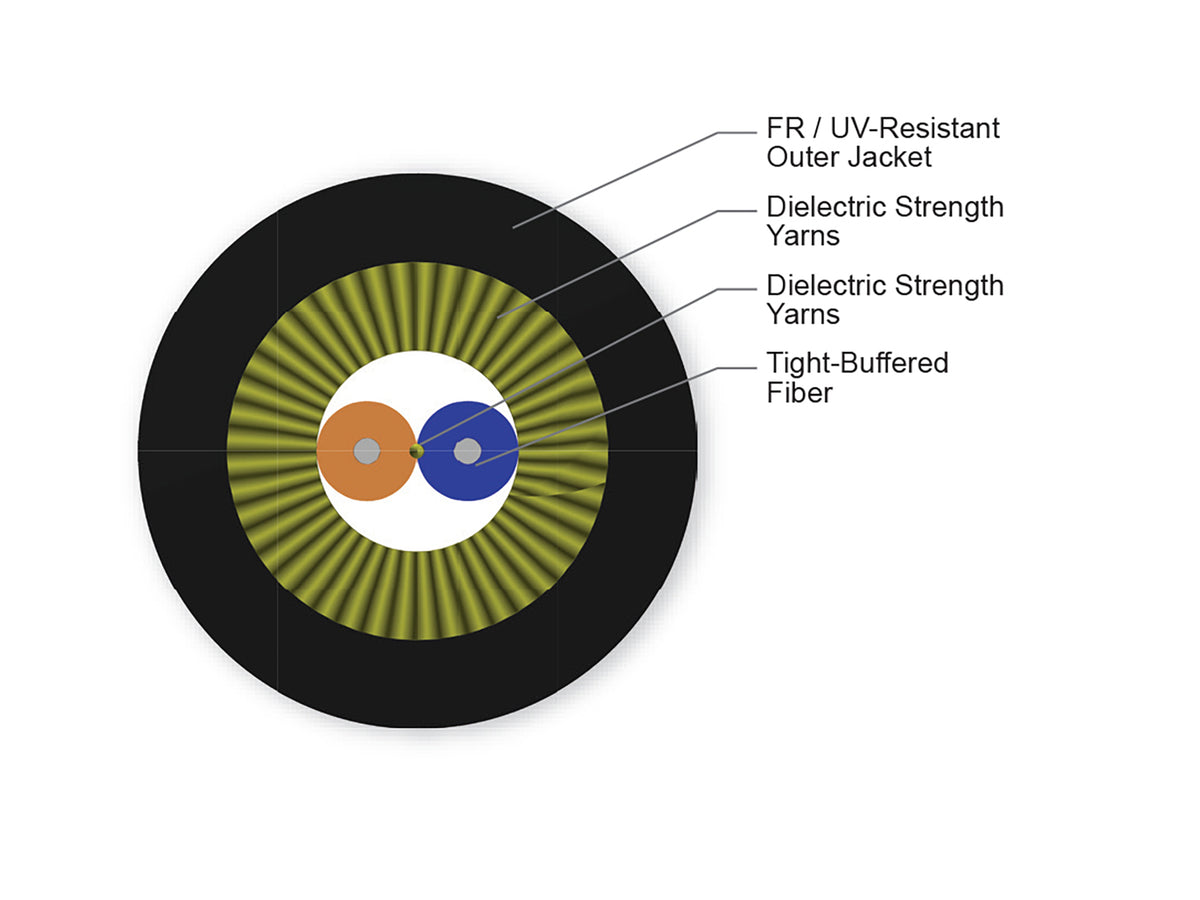

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 2 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Water-Swellable Strength Yarns |
| Tight Buffer Color | Blue, Orange |
| Flame Rating | Plenum (OFNP) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Short-Term | 675 N (151.75 lbf) |
| Min. Bend Radius Installation | 75 mm (2.95 in) |
| Min. Bend Radius Operation | 50 mm (1.97 in) |
| Nominal Outer Diameter | 5 mm (0.2 in ) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | SMF-28e+ fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 31 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.4 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 212 kg/km (142.46 lb/1000 ft) |
