Brand: Corning
|
SKU:
10106670
Corning 002JB4-14101-F9 | SST-Drop Indoor/Outdoor, Gel-Free Cable, Dielectric
Regular price
$1.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 002JB4-14101-F9 | SST-Drop Indoor/Outdoor, Gel-Free Cable, ...
Regular price
$1.47
Unit price
Description
Description

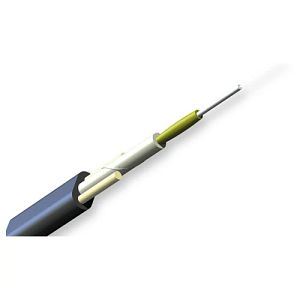

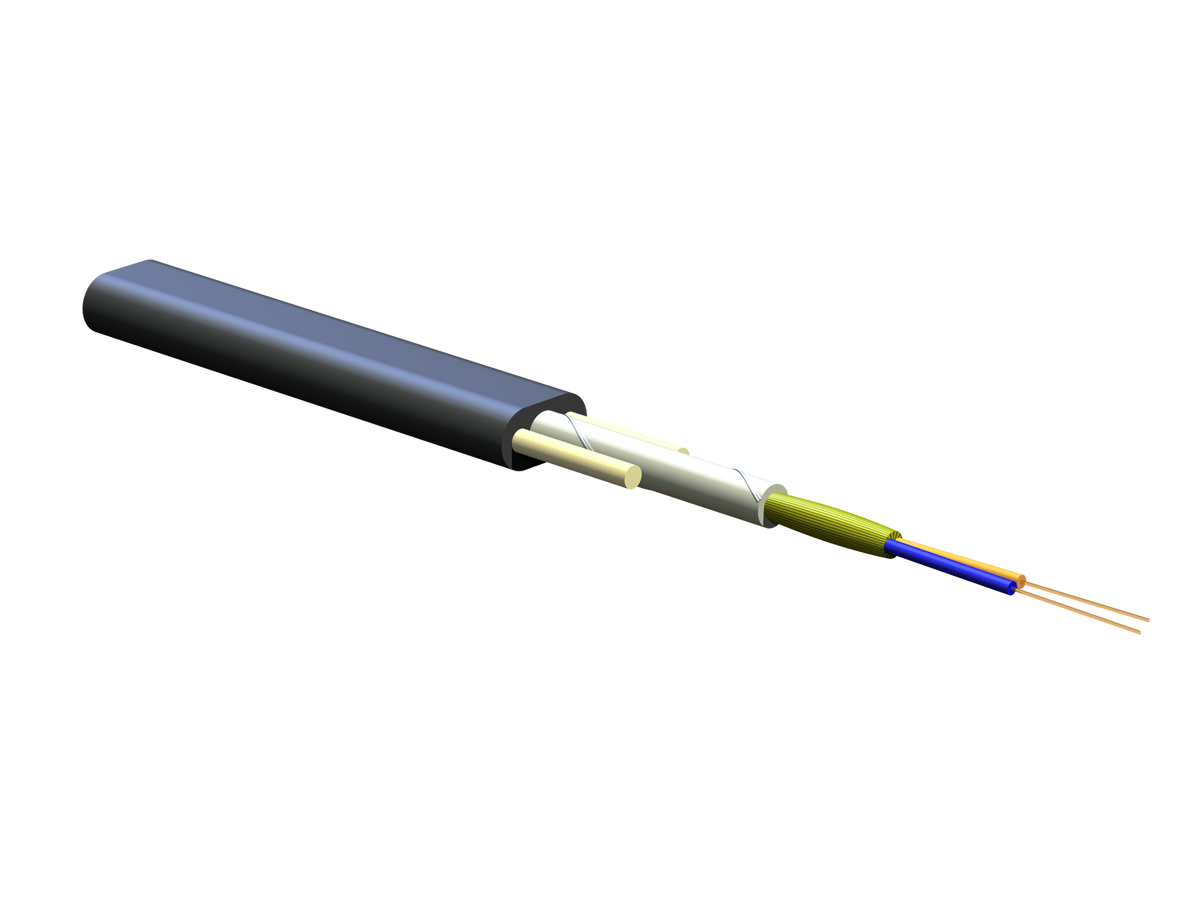

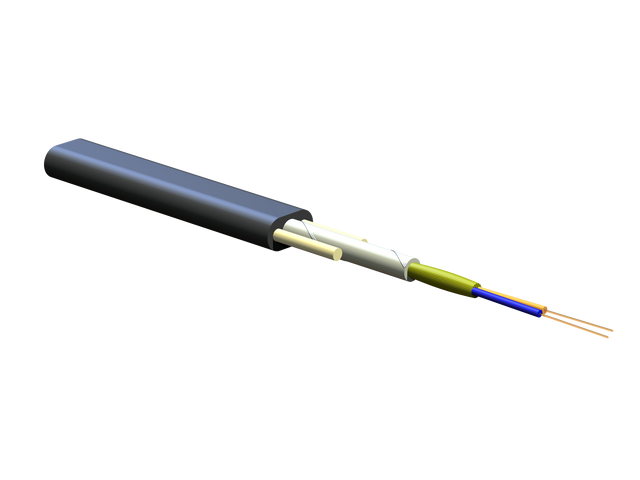

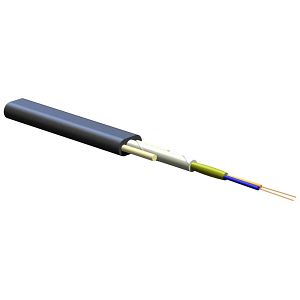

Corning 002JB4-14101-F9 | SST-Drop Indoor/Outdoor, Gel-Free Cable, Dielectric 2 F, ClearCurve LBL, Single-mode (OS2)
Corning - 002JB4-14101-F9 - Features
- 2.9 mm subunit in a rugged outdoor cable
- Eliminates need for termination transition in indoor ONT
- Crush resistance
- Fiber protection and signal integrity
- UV-resistant, flame-retardant inner jacket
- Rugged, durable and easy to strip
- Dielectric
- Eliminates bonding and grounding requirements
- Small subunit diameter and bend-radius
- Easy installation in space-constrained areas
Specifications
Specifications
Corning - 002JB4-14101-F9 - Product Categories
- Shop by Manufacturer/Corning
- DataComm
- Communications Cable
- Fiber Optic Cable
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Riser Cables
Corning - 002JB4-14101-F9 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 002JB4-14101-F9 |
| EAN Code | 4056418145891 |
| Environment | Indoor/Outdoor |
| Cable Type | Drop |
| Product Type | Dielectric |
| Fiber Category | ClearCurve LBL |
| Application | Aerial, Direct Buried, Duct, General Purpose Horizontal, Self-Supporting, Vertical Riser |
| Fiber Count | 2 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | Compact Drop listed to National Electrical Code (NEC) OFNR, FT-4 |
| Design and Test Criteria | ANSI/ICEA S-110-717, Telcordia GR-20-CORE, Telcordia GR-409-CORE |
| Environmental Conditions | - |
| Temperature Range, Installation | -30 °C to 70 °C (-22 °F to 158 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

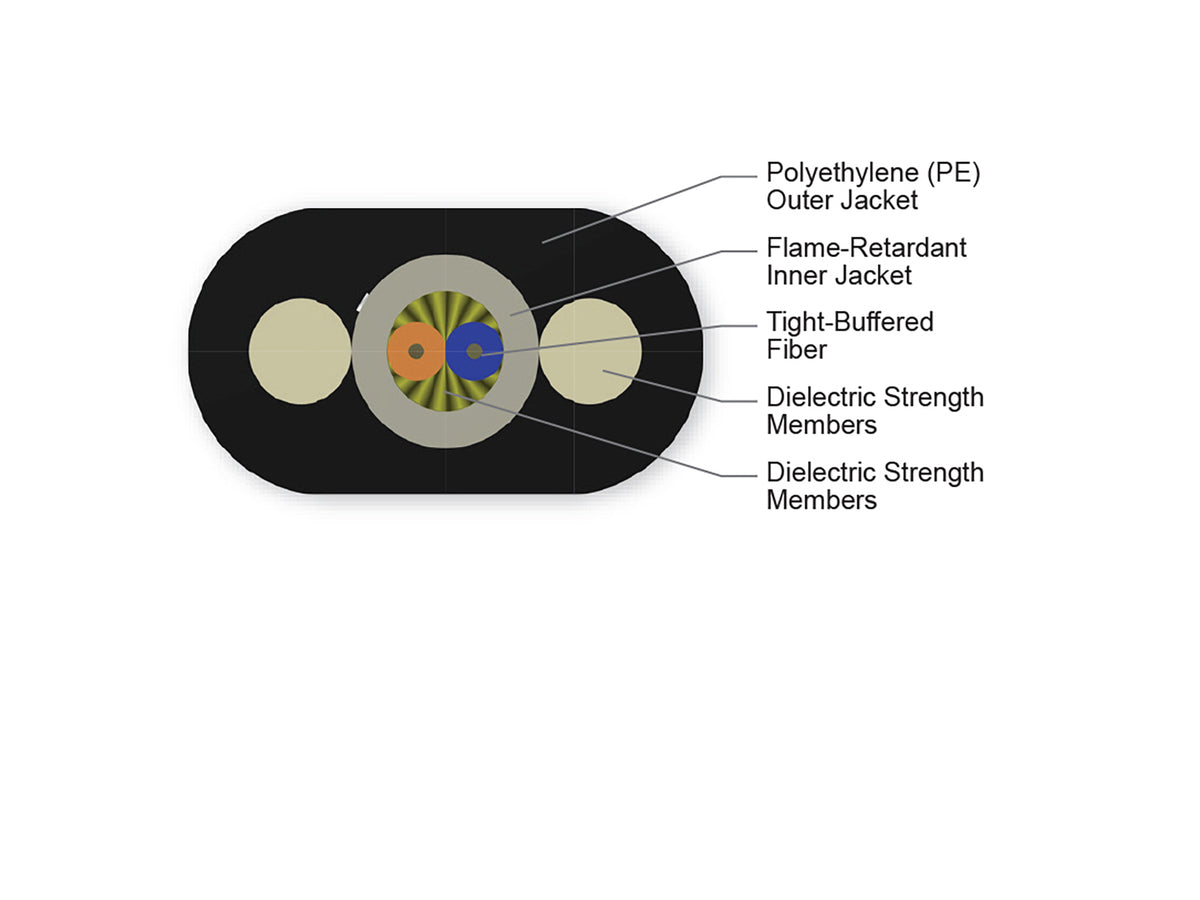

| Cable Design | - |
| Fiber Count | 2 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tensile Strength Elements and/or Armoring - Layer 2 | Dielectric strength members |
| Inner Jacket Material | Flame-retardant |
| Tight Buffer Color | Blue, White |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 400 N (89.92 lbf) |
| Max. Tensile Strength, Short-Term | 1350 N (303.49 lbf) |
| Min. Bend Radius Operation | 80 mm (3.15 in) |
| Nominal Outer Diameter | 8.1 mm x 4.5 mm (0.32 in x 0.18 in ) |
| Optical Characteristics | - |
| Fiber Code | J |
| Fiber Name | ClearCurve LBL |
| Fiber Type | Bend-tolerant Single-mode (OS2) |
| Performance Option Code | 1 |
| Fiber Core Diameter | 8.2 µm |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Serial 1 Gigabit Ethernet | 5000 MHz*km / - / - |
| Serial 10 Gigabit Ethernet | 10000 MHz*km / - / 40000 MHz*km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | OS2 |
| Ordering Information | - |
| Weight | 32 kg/km (21.5 lb/1000 ft) |
| Convenient Contractor-sized Packaging Length | 609.6 m (2000 ft) gross weight 72 lbs., no specialized equipment needed |
