Corning 002K58-31330-24 | Zipcord Tight-Buffered Cable, Plenum
Regular price
$1.45
Unit price
Brand: Corning
|
SKU:
370-COROM1-ZIP2.0-02
Regular price
$1.45
Unit price
Description
Description

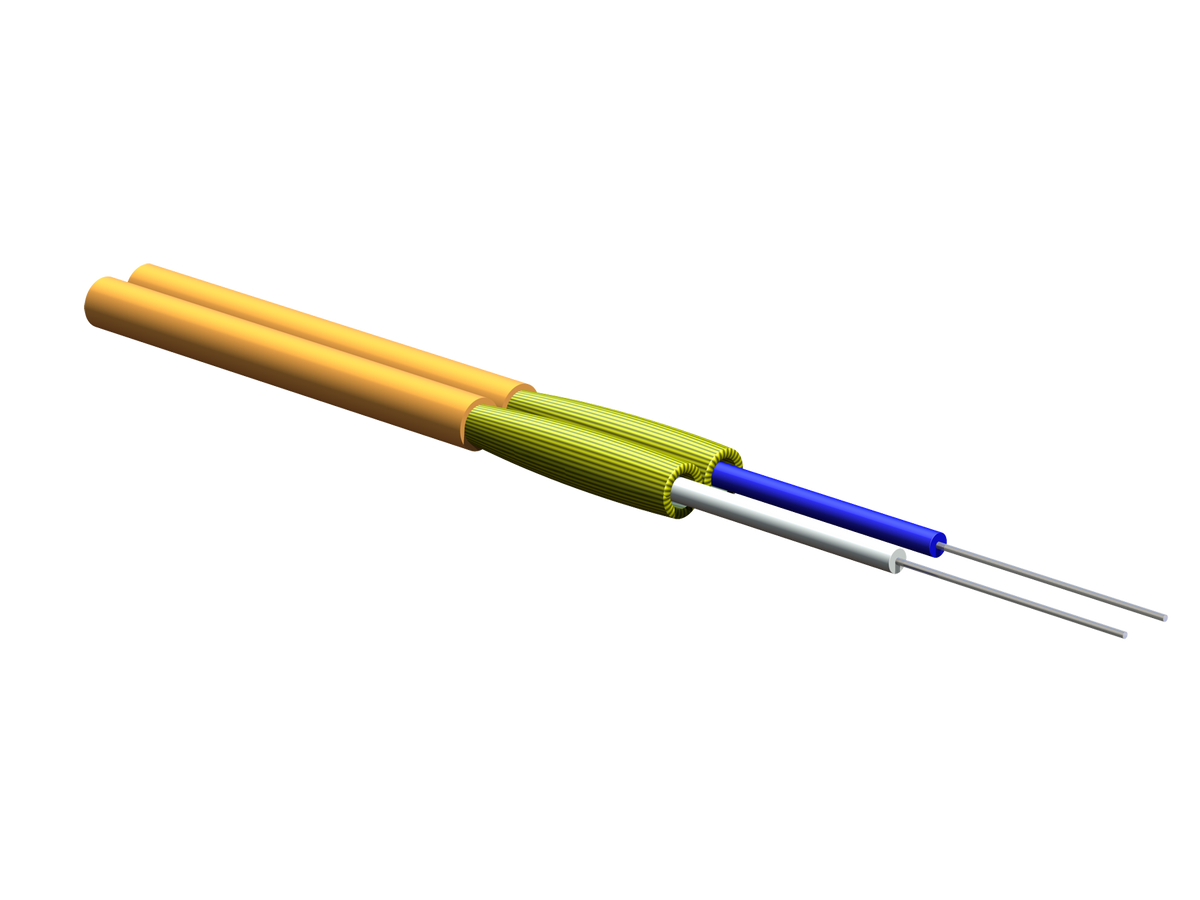

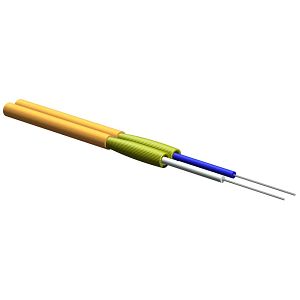

Corning 002K58-31330-24 | Zipcord Tight-Buffered Cable, Plenum 2 F, 2.0 mm diameter, 62.5 µm multimode (OM1)

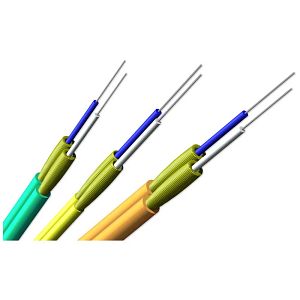

The colored jacket allows for easy visual identification of the cables. The standard jacket color will be determined by the dominant fiber type in the cable and will use the standard part numbers shown here. Contact Customer Care at 1-800-743-2675 to order other color options.
Standards RoHS: Free of hazardous substances according to RoHS 2011/65/EU Flame Test Method: NFPA 262 and CSA FT-6 (for plenum, riser and general building applications), ICEA S-83-596
Corning - 002K58-31330-24 - Features
- All-dielectric strength member
- Mechanical durability
- Meets NEC requirements
- Meets burn test criteria All-dielectric strength member
- Mechanical durability
Specifications
Specifications
Corning - 002K58-31330-24 - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Indoor Fiber Optic Cable
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 002K58-31330-24 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 002K58-31330-24 |
| EAN Code | 4056418202662 |
| Environment | Indoor |
| Cable Type | Tight-Buffered |
| Product Type | Interconnect |
| Fiber Category | 62.5 µm MM (OM1) |
| Flame Rating | Plenum (OFNP) |
| Application | General Purpose Horizontal, Plenum, Vertical Riser |
| Fiber Count | 2 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Flame Test Method | NFPA 262 and CSA FT-6 (for plenum, riser and general building applications), ICEA S-83-596 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 60 °C (32 °F to 140 °F ) |
| Temperature Range, Operation | 0 °C to 70 °C (32 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

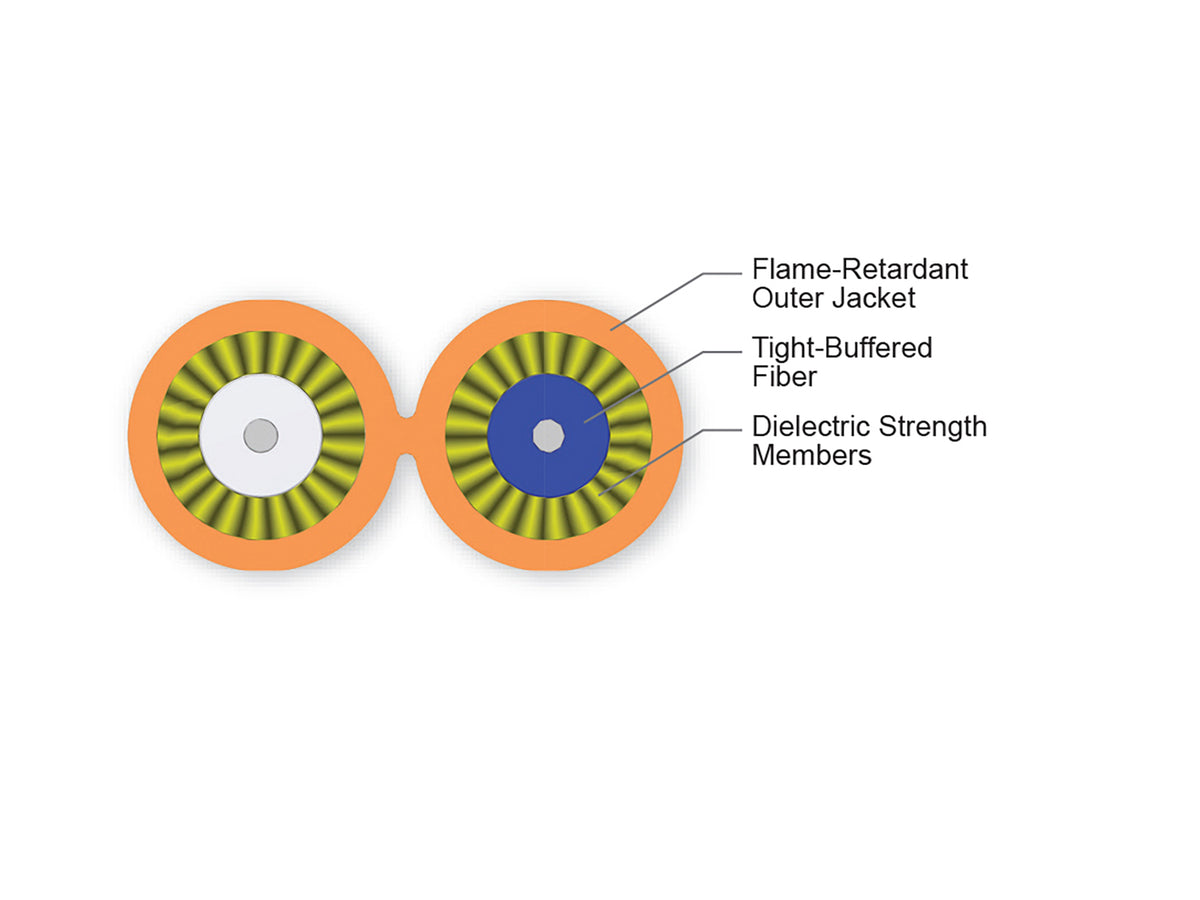

| Cable Design | - |
| Fiber Count | 2 |
| Outer Jacket Color | Orange |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Number of Subunits | 2 |
| Tight Buffer Color | Blue, White |
| Flame Rating | Plenum (OFNP) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Short-Term | 220 N (49.46 lbf) |
| Min. Bend Radius Installation | 50 mm (1.97 in) |
| Min. Bend Radius Operation | 10 mm (0.39 in) |
| Max. Tensile Strength, Long-Term | 100 N (22.48 lbf) |
| Optical Characteristics | - |
| Fiber Code | K |
| Fiber Name | 62.5 µm MM (OM1) |
| Performance Option Code | 30 |
| Fiber Core Diameter | 62.5 µm |
| Minimum Effective Modal Bandwidth (EMB) | 220 MHz |
| Maximum Attenuation | 3.4 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 200 MHz / 500 MHz |
| Serial 1 Gigabit Ethernet | 300 m / 550 m |
| Serial 10 Gigabit Ethernet | 33 m / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM1 |
| Ordering Information | - |
| Weight | 74 kg/km (49.73 lb/1000 ft) |
| ECCN | 5A991.d |
| Flammability Rating | Plenum |
| Fiber Count | 2 |
