Brand: Corning
|
SKU:
371-COROM4-ZIP20K-02
Corning 002T51-31390-B4 | Reel In A Box, Zipcord Tight-Buffered Cable, Riser
Regular price
$1,635.66
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 002T51-31390-B4 | Reel In A Box, Zipcord Tight-Buffered Cab...
Regular price
$1,635.66
Unit price
Brand: Corning
|
SKU:
371-COROM4-ZIP20K-02
Regular price
$1,635.66
Unit price
Description
Description

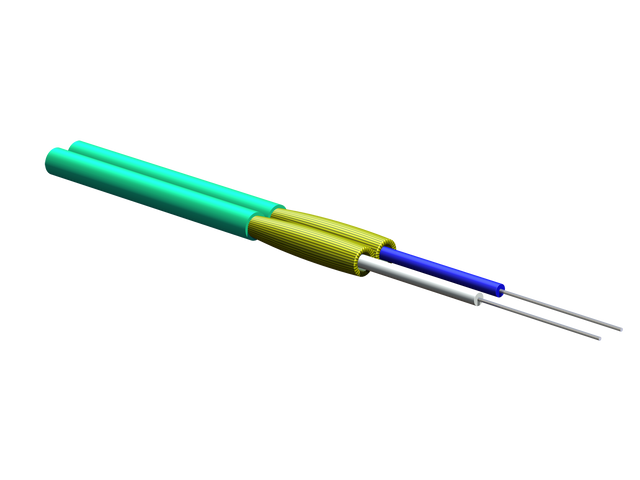

Corning 002T51-31390-B4 | Reel In A Box, Zipcord Tight-Buffered Cable, Riser 2 F, 2.0 mm diameter, 50 µm multimode (OM4)
Corning - 002T51-31390-B4 - Features
- {print indicates available cable remaining on the reel providing easier inventory management{Stackable boxes make storage more manageable{Smaller reel offerings mean smaller cable lengths than would normally be available{Cable cutting at Corning lowers operating expenses for our distributors and end users{
Specifications
Specifications
Corning - 002T51-31390-B4 - Product Categories
- Shop by Manufacturer/Corning
- Fiber Optic Cables
- Indoor
- Indoor Riser Cables
Corning - 002T51-31390-B4 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 002T51-31390-B4 |
| EAN Code | 4056418153674 |
| Environment | Indoor |
| Cable Type | Tight-Buffered |
| Product Type | Interconnect |
| Fiber Category | 50 µm MM (OM4) |
| Flame Rating | Riser (OFNR) |
| Application | General Purpose Horizontal |
| Fiber Count | 2 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNR, UL 1666, CSA FT-4, ICEA S-83-596 |
| Environmental Conditions | - |
| Temperature Range, Operation | -20 °C to 70 °C (-4 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

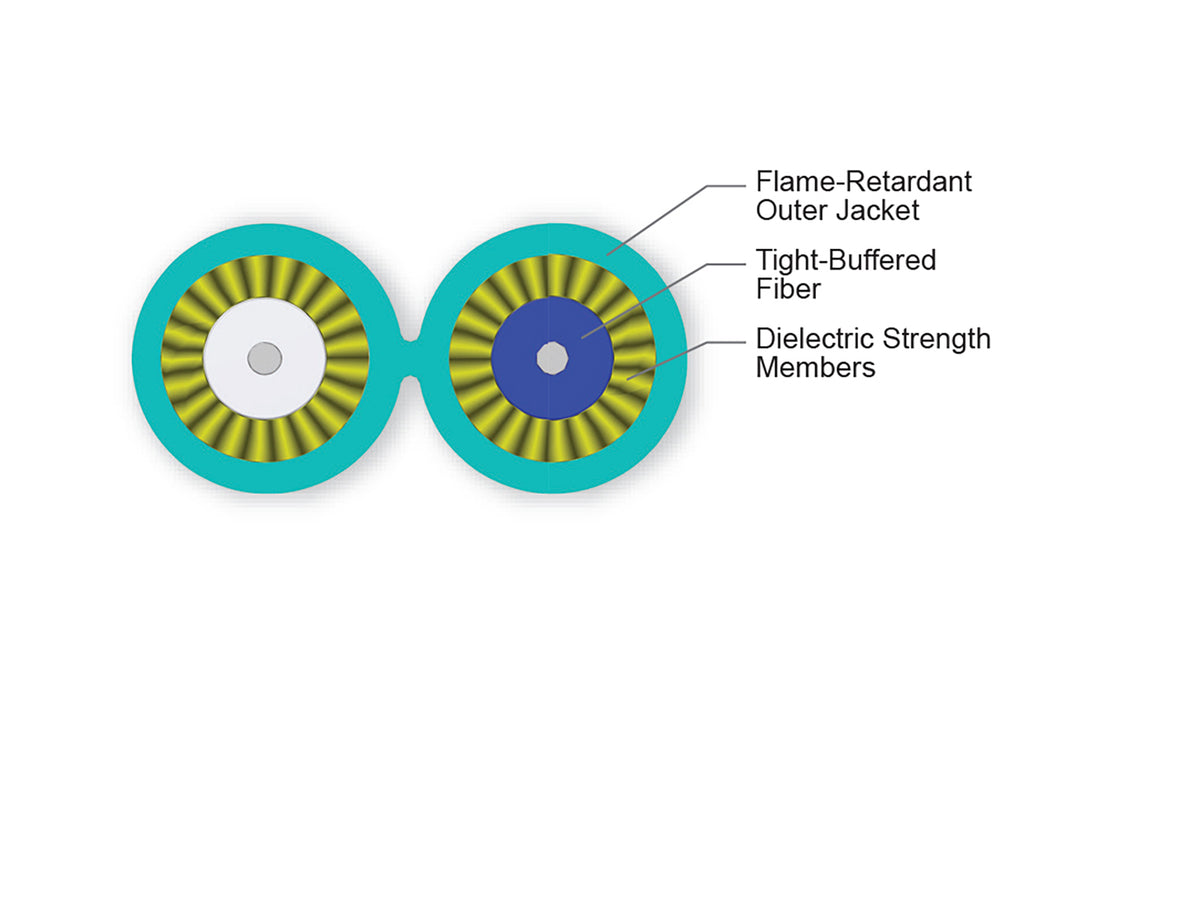

| Cable Design | - |
| Fiber Count | 2 |
| Outer Jacket Color | Aqua |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Number of Subunits | 2 |
| Tight Buffer Color | Blue, White |
| Flame Rating | Riser (OFNR) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Short-Term | 220 N (49.46 lbf) |
| Min. Bend Radius Installation | 50 mm (1.97 in) |
| Min. Bend Radius Operation | 10 mm (0.39 in) |
| Nominal Outer Diameter | 2 mm x 4 mm (0.08 in x 0.16 in ) |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 90 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 4700 MHz*km / - |
| Maximum Attenuation | 2.8 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 3500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 550 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM4 |
| Ordering Information | - |
| Weight | 67 kg/km (45.02 lb/1000 ft) |
| Packaging Method | Reel in a Box |
