Corning 002T51-31431-24 | Zipcord Tight-Buffered Cable, Riser
Regular price
$1.46
Unit price
Brand: Corning
|
SKU:
371-COROM2-ZIP1.6-02
Regular price
$1.46
Unit price
Description
Description

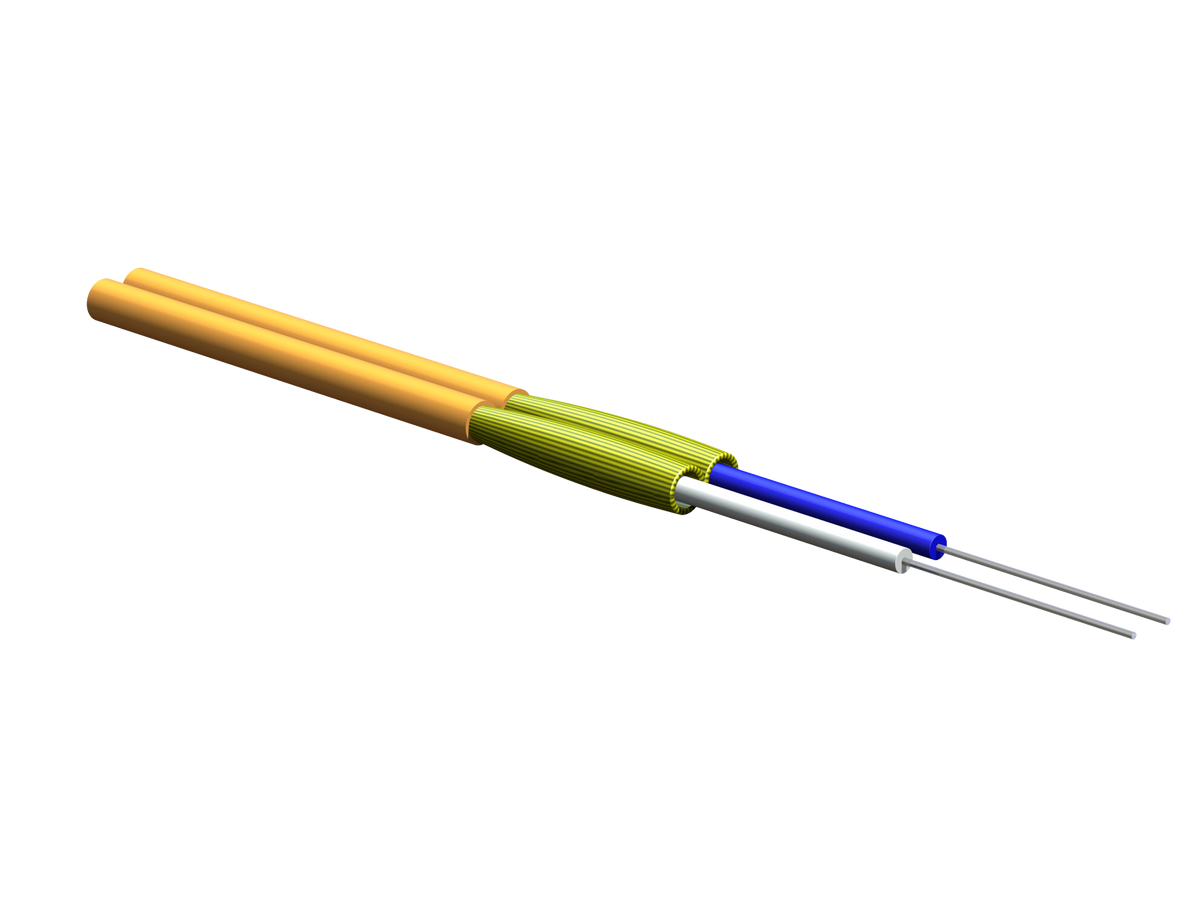

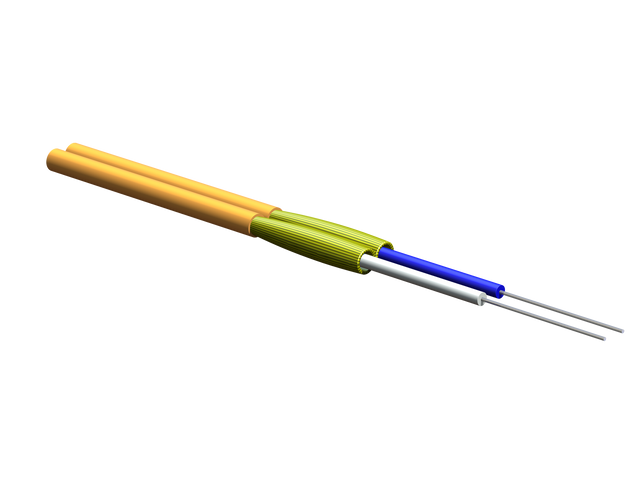

Corning 002T51-31431-24 | Zipcord Tight-Buffered Cable, Riser 2 F, 1.6 mm diameter, 50 µm multimode (OM2)
Corning - 002T51-31431-24 - Features

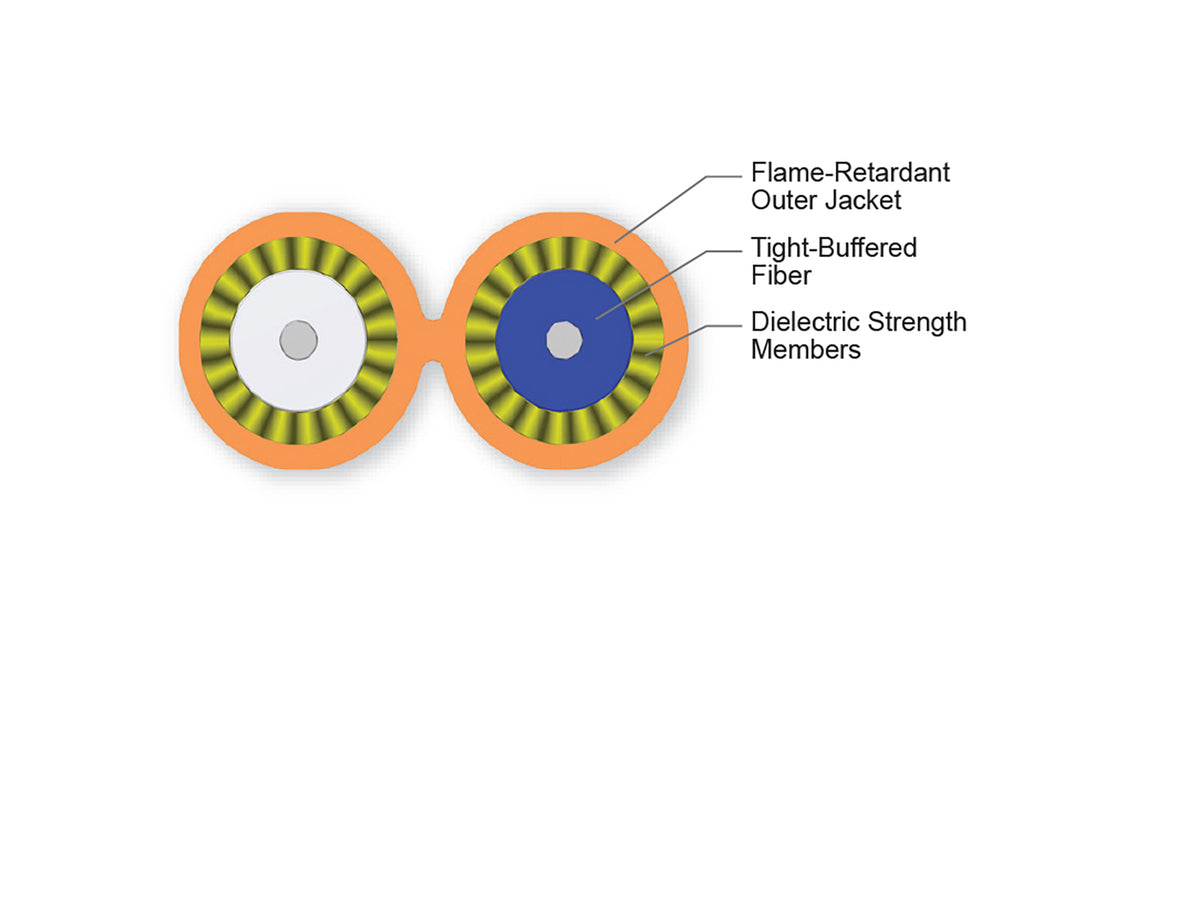

- All-dielectric strength member
- Mechanical durability
- Meets NEC requirements
- Meets burn test criteria All-dielectric strength member
- Mechanical durability
Specifications
Specifications
Corning - 002T51-31431-24 - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Indoor Fiber Optic Cable
- Fiber Optic Cables
- Indoor
- Indoor Riser Cables
Corning - 002T51-31431-24 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 002T51-31431-24 |
| EAN Code | 4056418180403 |
| Environment | Indoor |
| Cable Type | Tight-Buffered |
| Product Type | Interconnect |
| Fiber Category | 50 µm MM (OM2) |
| Flame Rating | Riser (OFNR) |
| Application | General Purpose Horizontal, Vertical Riser |
| Fiber Count | 2 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNR, UL 1666, CSA FT-4, ICEA S-83-596 |
| Flame Test Method | UL-1666 and CSA FT-4 (for riser and general building applications), ICEA S-83-596 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 60 °C (32 °F to 140 °F ) |
| Temperature Range, Operation | 0 °C to 70 °C (32 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Cable Design | - |
| Fiber Count | 2 |
| Outer Jacket Color | Orange |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Number of Subunits | 2 |
| Tight Buffer Color | Blue, White |
| Flame Rating | Riser (OFNR) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Short-Term | 220 N (49.46 lbf) |
| Min. Bend Radius Installation | 50 mm (1.97 in) |
| Min. Bend Radius Operation | 8 mm (0.31 in) |
| Nominal Outer Diameter | 1.6 mm x 3.55 mm (0.06 in x 0.14 in ) |
| Max. Tensile Strength, Long-Term | 100 N (22.48 lbf) |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 31 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 950 MHz*km/ - |
| Maximum Attenuation | 2.8 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 700 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 750 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 150 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM2 |
| Ordering Information | - |
| Weight | 5 kg/km (3.36 lb/1000 ft) |
